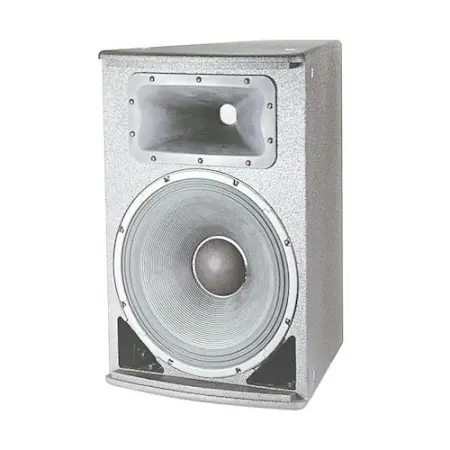

The JBL AC2215/64-WH is a compact 2-way full-range loudspeaker system comprised of one 380 mm (15") low frequency driver and one 38 mm (1.5") exit / 44 mm (1.75") voice-coil compression driver. The PT™ Progressive Transition™ waveguide provides wide 100° by 100° coverage. High-slope passive crossovers minimize band overlap.

Applications
Small performing arts facilities
Theatrical sound design
Auditoriums
Sports facilities
Themed entertainment venues
Delay / fill locations of larger systems

Features:

60° x 40° coverage
PT Progressive Transition waveguide for good pattern control with low distortion
Bi-amp / passive switchable
Optional U-bracket for easy installation

Specifications:

Frequency Range: 42 Hz - 19 kHz (-10 dB)
Frequency Response: 50 Hz - 17 kHz (±3 dB)
Crossover Modes: Bi-amp / passive switchable
Transducer Power Rating (AES):
LF: 275W (1100W peak), 2 hrs; 250W (1000W peak), 100 hrs
HF: 50W (200W peak), 2 hrs
Long-Term System Power Rating (IEC): Passive mode: 250W (1000W peak), 100 hrs
Maximum SPL:
Bi-amp mode:
LF: 121 dB-SPL cont avg (127 dB peak)
HF: 129 dB-SPL cont avg (135 dB peak)
Passive mode: 121 dB-SPL cont avg (127 dB peak)
System Sensitivity: Passive Mode: 97 dB SPL
Nominal Impedance: 8 Ω

JBL Professional AC2215 white (JBL ac2215-64 white)
