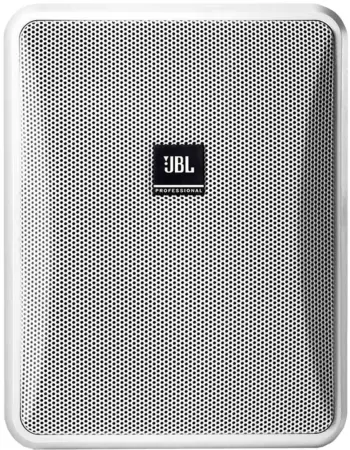

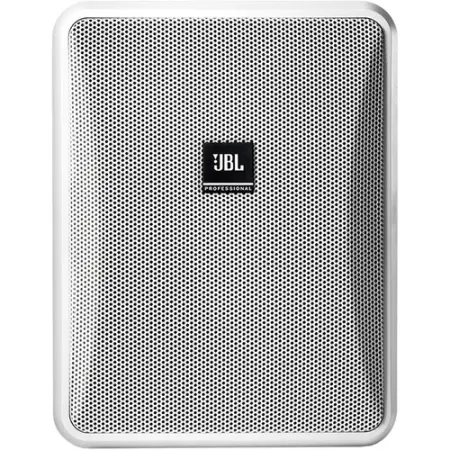

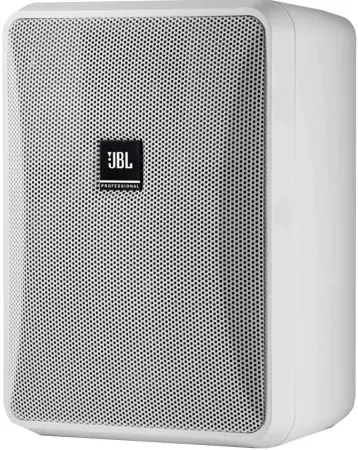

Compact Indoor/Outdoor Background/Foreground Loudspeaker
The Control 25 is perhaps the most versatile of JBL Professional’s Control Contractor Series indoor/outdoor loudspeakers.
Components: 5.25 in Polypropylene coated woofer, .75 in Titanium coated horn loaded tweeter.
Built-in InvisiBall® mounting hardware*.
Weather resistant enclosure and transducers.
90° x 90° high frequency horn.
Overload Protection Circuitry.
Sensitivity: 88 dB SPL, 1W, 1m
*Patents pending worldwide
Frequency Range 80 Hz to 16 kHz (-10 dB)
Power Capacity 150 W Continuous Program Power; 75 W Continuous Pink Noise
Sensitivity 88 dB SPL, 1 W, 1m
Directivity Factor (Q) 5.3 dB
Directivity Index (DI) 7.2 dB
Nominal Impedance 8 ohms
Crossover Frequency 3.0kHz
Frequency LF Driver 135mm (5.25 in) Polypropylene cone w/ WeatherEdge
HF Driver 19mm (.75 in) Titanium coated polycarbonate
Enclosure Material HIPS (High Impact Polystyrene)
Overload Protection Full-Range power limiting to protect network and transducers

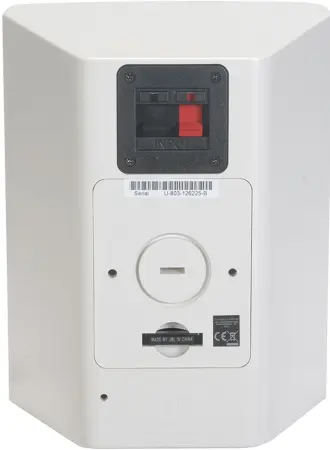

Terminations Spring terminals, accepts banana plug
Environmental Conforms to Mil Spec 810 for humidity, salt spray,temperature& UV. IEC 529 IP-X4 splashproof rating
Dimensions (H x W x D) 236 x 188 x 149 mm (9.3 x 7.4 x 5.8 in)
Net Weight (ea) 2.3 kg (5 lb)
Shipping Weight (ea) 5 kg (11 lb)
Included Accessories Invisiball Assembly
Optional Accessories MTC-25V: For vertical columnar orientation of up to 3 loudspeakers extension of the woofer surround that MTC-25/23H: For horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360° array. MTC-28/25CM: Ceiling-mount adapter. MTC-25SSG: Stainless Steel Grille for harsh environments. Available in silver, black (-BK) or white (-WH) MTC-25WMG: WeatherMax™ Stainless Steel Grille protects against driving precipitation. Available in black or white (-WH) MTC-PC2: Input panel cover protects input terminals in outdoor environments.
