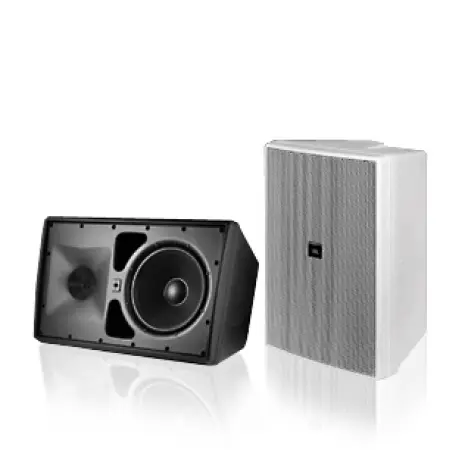

JBL Control-30 (JBL CONTROL30)
Three-Way High Output Indoor / Outdoor Monitor Speaker
Brochure
Spec Sheet
High Res Photo
U-Bracket Drawing
Eyebolt Apps
Ceiling Adapter
Owner’s Manual
Marine Grille Kit
The Control 30 utilizes high power components, computer optimized horn and
coaxial component design, patent-pending cabinet manufacturing techniques, and a
complex network to achieve smooth high fidelity performance, extended bandwidth
and well-controlled, defined coverage from a compact loudspeaker.
Features : Specifications :
Extended bandwidth, extremely smooth frequency response.
Fully outdoor-capable design, featuring WeatherMax™.
120° x 110° HF coverage.
150 W transformer for 70 V or 100 V lines, with 8 thru.
SonicGuard® overload protection.
250 mm (10 in) fiberglass / Kevlar® cone LF woofer, with neodymium magnet
coaxial 125 mm (5 in) anodized aluminum cone MR, and 25 mm (1 in) titanium
diaphragm compression driver.
Includes InvisiBall® mounting hardware, plus ten 6 mm attachment points for
suspension and optional U-bracket.
Sealed input panel cover and screw-down input terminals.
Frequency Range : 38 Hz – 17 kHz
(-10 dB)
Power Capacity : 500 W Continuous
Program Power
250 W Continuous
Pink Noise
Transformer Taps : 70 V: 150 W, 75 W, 38 W, 19 W 100 V: 150 W, 75 W, 38 W Thru
Position: 4 nominal
Frequency Response : 40 Hz – 16 kHz
( ± 3 dB)
Maximum SPL @ 1m : Short-Term: 123 dB; Long-Term: 117 dB
Nominal Sensitivity : 93 dB, 1W @ 1m (3.3 ft)
Nominal Coverage Angle : 120° H x 110° V
Directivity Factor (Q) : 5.2 dB, averaged 500 Hz to 10 kHz
Directivity Index (DI) : 7.1 dB, averaged 500 Hz to 10 kHz
Nominal Impedance : 4 ohms
Crossover Network : 3rd order Low Pass LF, 2nd order High Pass/3rd order Low
Pass MF, 3rd order High Pass, HF, plus conjugate shaping circuitry.
Low Frequency : 250 mm (10 in) fiberglass/Kevlar® cone with pure butyl rubber
surround, 50 mm (2 in) voice coil on fiberglass former, neodymium magnet
Mid Frequency : 125 mm (5 in) anodized aluminum cone with EPDM rubber (Terpolymer
of Ethylene and Propylene) surround, 25 mm (1 in) voice coil on fiberglass
former
High Frequency : 25 mm (1 in) compression driver, pure titanium diaphragm with
patented JBL diamond surround
Enclosure Material : High Impact PolyStyrene (HIPS) with 10% glass fill plus
patent pending internal 5 mm foamed polyurethane secondary mold
Grille : Thermoset composite coated steel, WeatherMax multi-layer foam
Overload Protection : SonicGuard full range power limiting to protect network
and transducers.
Environmental : IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt
spray, temperature & UV. Passes Mil-Std-202F for salt spray.
Terminations : Screw-down terminal strip, zinc plated copper base, nickel plated
metal screws/washers. Accepts up to 9 mm outside 4 mm inside open
Safety Agency Rating : Transformer is listed per UL1876
Colors : Black or white (-WH)
Dimensions (H x W x D) : 593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in.)
Net Weight (ea) : 18.9 kg (42 lb)
Shipping Weight (ea) : 20.3 kg (45 lb)
Included Accessories : 1 pc MTC-PC2 input panel cover, InvisiBall mounting base,
6 mm x 305 mm InvisiBall Hex wrench.
Optional Accessories : MTC-30CM (-WH) to install speaker down from the ceiling.
MTC-30UB (-WH) U-Bracket
