JBL PRX One

$1,699.00 new
Warranty
Reviews: 0 Description Financing Q&A: 0
or $154/mo $0 Shipping, $0 Tax



Backordered - Call for ETA Low Price Guarantee



or $ 154/mo $0 Shipping, $0 Tax


Product Description

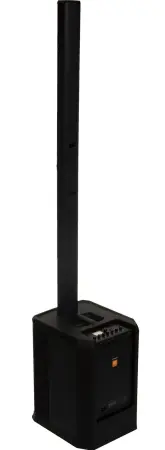

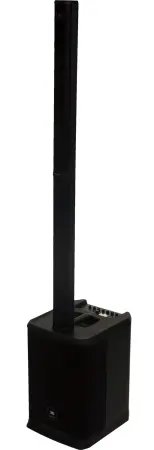

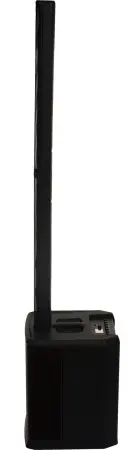

Looking for a complete, all-in-one powered PA system that sounds great and is easy to set up? Check out the JBL PRX ONE, an acoustically optimized column array PA system with an integrated 7-channel digital mixer, a complete set of advanced DSP, professional-grade connectivity, Bluetooth functionality, and JBL Pro Connect universal app control. The system is well suited for DJs, musicians, corporate presenters, entertainment venues, houses of worship, and rental companies.

The PRX ONE utilizes a 2000W Class-D amplifier to power the 12" subwoofer and twelve 2.5" high-frequency drivers, which combine for a full frequency response from 20 kHz down to 35 Hz and an SPL output of 130 dB. The custom engineered tweeter array features JBL AIM acoustic technology for consistent front-to-back throw.

The integrated DSP is accessed via the JBL Pro Connect app or onboard color display and provides a full suite of professional Lexicon and dbx effects including delay, reverb, and compression. The built-in dbx DriveRack features AFS Pro Automatic Feedback Suppression for ease of mind. Connect microphones, instruments, mobile devices, and wireless rigs using PRX ONE's versatile I/Os (featuring dedicated phantom power and Hi-Z inputs and pro-grade Neutrik connectors).

Bluetooth 5.0 allows you to work faster and easier with an intuitive Soundcraft-designed, dual-mode digital mixer that can be set to general mix functions or channel-strip control, all controllable via app or a built-in color LCD. The PRX ONE includes a nylon bag for the array speakers for ease in transport.

Features:
Vertical array of 12 x 2.5" drivers delivers consistent, even HF response from the front of the room to the back
Custom-designed high-frequency drivers feature copper-capped pole pieces to minimize distortion and smooth, natural high-frequency response
JBL A.I.M. (Array Inumbration Mechanics) geometrically optimized array-shading technology ensures consistent front-to-back coverage
Wide, 130° (H) x 30° (V) dispersion pattern delivers consistent coverage across the audience area
Sophisticated crossover management and HF/LF coupling allow for more natural low-end response and smooth, uniform response across the entire frequency range

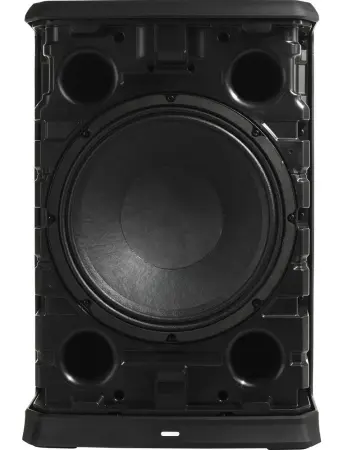

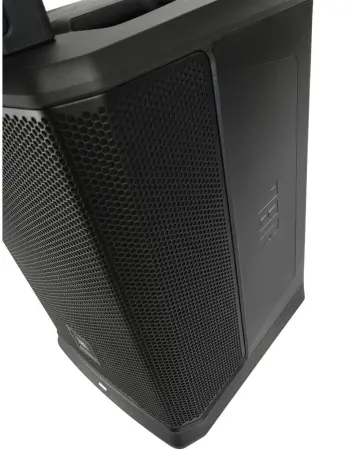

12" bass-reflex woofer extends low-end response to 35 Hz
2000-watt (peak), fully bridged Class-D amplifier with power factor correction and high-linearity inductors provides clean, efficient system power, superior headroom, low THD and protection from voltage spikes
Four high-efficiency, low-noise microphone preamps maintain constant bandwidth at any gain level
130 dB max SPL
Integrated 7-channel digital mixer with dual-operating mode gives users full control of their input faders or individual channel controls like bass, mid, treble, and effects sends.
Powerful Lexicon effects engine with delay, reverb chorus, echo, and sub synth, with presets for easy set up
Triple Tier DSP control offers multi-level user experiences based on knowledge level
dbx DriveRack Inside technology features AFS (Automatic Feedback Suppression), 8-band master EQ, system limiter, plus gates and compressors on each channel for unrivaled dynamic control
One-touch ducking by Soundcraft ensures speech is always heard
Simple, intuitive full-color LCD screen provides easy access to all PRX ONE functions
8 user presets instantly optimize system sound
Robust audio connectivity: I/Os include 4 x XLR-1/4" Combo, 2 x Hi-Z, 1 x 3.5mm/BT audio and 1 x XLR Pass Thru
Two USB 2.0 ports charge devices and power AKG wireless systems (with optional JBL adapter cable)
Two channels of true +48V phantom power expand microphone support
Bluetooth 5.0 connectivity allows remote system control of up to 10 units using the JBL Pro Connect app
Full app control using JBL Pro Connect
Rugged enclosures withstand the rigors of the road
Optional bracket and adapter allow array to be wall or trussmounted independently of subwoofer for permanent installations
Computer-modeled ComfortGrip handle simplifies transport

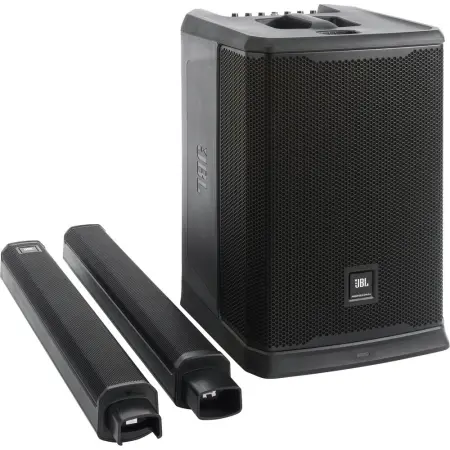

Included nylon carrying bag for array
Attractive, discreet form factor

Acoustic Innovations for Remarkable Performance
With PRX ONE, every seat is the best seat in the house: Twelve custom-engineered tweeters work in combination with JBL A.I.M. (Array Inumbration Mechanics) geometrically optimized array-shading technology to provide controlled, consistent front-to-back coverage and even response. Custom-designed high-frequency transducers feature copper-capped pole pieces to reduce inductance for smoother, more precise high-frequency response; HF transducers exhibit less power compression, offering more natural performance without the need for heavy DSP. High-frequency performance is optimized down to 500 Hz, allowing the woofer to deliver a more natural, accurate bass sound. PRX ONE's acoustically optimized woofer delivers superior performance without DSP, reducing "huffiness."

Pristine Sound at any Volume
Crank it up with confidence, thanks to ultra-efficient amplification that ensures you'll be heard loud and clear at any volume level. PRX ONE's 2000W Class-D amplifier with power factor correction delivers clean, stable power through various voltages, ensuring longevity of components and reliable operation anywhere. High-quality, high-linearity inductors improve efficiency and minimize total harmonic distortion. And, because the amp is fully bridged, you'll truly tap its full power potential, with plenty of headroom to handle any scenario. Four console-quality microphone preamps maintain full bandwidth, even at maximum gain. It all adds up to clean, clear, studio-quality sound, no matter how loud you go.

Dial-In Your Signature Sound
Sculpt your sound right inside PRX ONE with a full suite of iconic dbx and Lexicon audio effects, including reverb, delay, chorus, echo, compression, limiting, and gating. Presenters, teachers, and fitness instructors will always be heard loud and clear when they rely on PRX ONE's built-in ducking feature, which lowers background music when speech is detected. Presets let you save and recall go-to settings.

Sonic Success in Fewer Steps

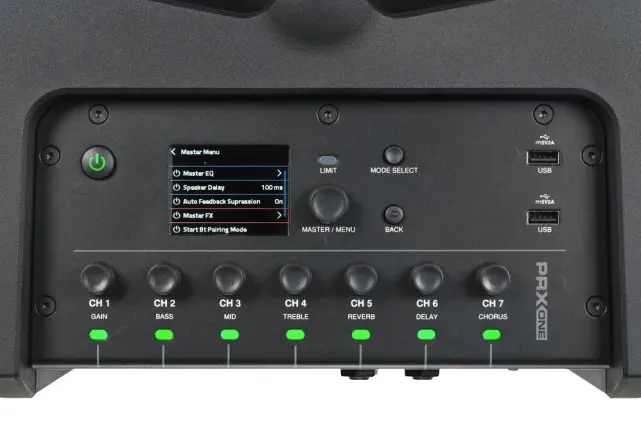

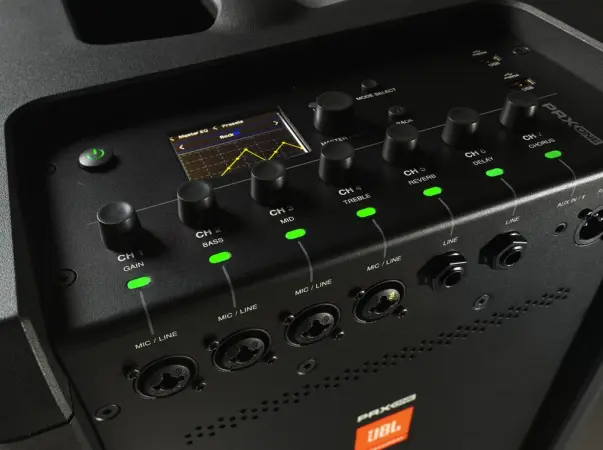

PRX ONE's Soundcraft-designed dual-mode mixer is optimized for fast navigation: Channel Strip Mode provides hardware control of gain, EQ, and effects sends for each channel, while Mix Mode provides gain control over the 7-channel mixer. Going for next-level effects? A Triple Tier DSP interface control lets users choose experiences that match their knowledge level, from beginner to advanced. PRX ONE's full-color LCD screen provides complete access to DSP, EQ, and dynamics, and a Setup Saver saves snapshots for easy recall. Simple Success dynamic LED metering gives users a fast, easy way to verify levels and channel functions such as mute and clipping.

Workhouse System for Anywhere

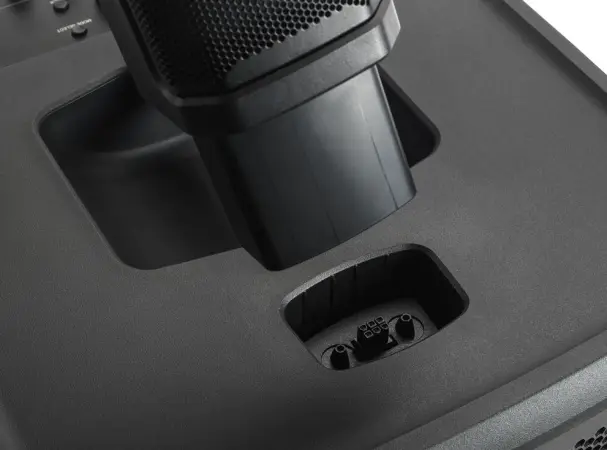

Get great sound thanks to PRX ONE's robust DSP and custom presets. Once you're up and running, count on dbx Automatic Feedback Suppression to squash those screeches before they start. PRX ONE can be used in both portable applications and fixed installations; installers, presenters, and houses of worship will appreciate the ability to detach and mount the PRX ONE array separately from the subwoofer, using an optional mounting accessory.

Connectivity and Expansion
PRX ONE offers two independent channels of true +48V phantom power, plus four XLR-1/4" Combo jacks, one 3.5mm in, two dedicated Hi-Z inputs and Bluetooth 5.0 functions including audio streaming to one device and control of up to 10 devices. Two onboard USB ports can be used to charge external devices or power AKG wireless systems. PRX ONE goes the distance: XLR male Thru output offers true analog expansion with the ability to time-align multiple speakers, with up to 100ms of delay per speaker.

All-in-One Control Ecosystem
Get hands-on anywhere with the JBL Pro Connect app, which offers control over every PRX ONE feature from mixing to DSP to Bluetooth functions. Adjust levels from anywhere in the room, stream music to multiple speakers, and more. Because the app and the mixer are always in sync, you'll never have to guess where your levels are. Plus, get access to app-only features like speaker grouping, delay tap tempo, and whole speaker snapshots.

Tested, Trusted, and Road Rough
Every PRX ONE portable PA undergoes 100 hours of JBL stress testing to ensure that it'll perform like a champ in real-world conditions. The system is housed in a durable shell that's rugged enough for your most demanding gigs yet discreet enough to complement any presentation scenario.

Specifications:
Portable PA System
Speaker Configuration 1 x 2-Way Speaker Column with Subwoofer
Number of Input Channels 7 (6 x Mono, 1 x Stereo)
Amplifier Power Rating 1 x 1000 W RMS
1 x 2000 W Peak
Amplifier Class Class-D
Speakers
Enclosure Type Bass-Reflex
HF Driver 12 x 2.5" / 63.5 mm Horn-Loaded Tweeter
Subwoofer Driver 1 x 12" / 30.5 cm Woofer
Signal Processing
Crossover 260 Hz
EQ Yes
Semi-Parametric EQ None
Effects Yes
Dynamic Processing Limiter
Performance
Frequency Response 40 Hz to 20 kHz -3 dB
Frequency Range 35 Hz to 20 kHz -10 dB
Maximum SPL 130 dB
Coverage Angle 130° H x 30° V
I/O Impedance Mic Input:
4 Kilohms (Balanced/Unbalanced)
1/4" Hi-Z Input:
2 Megohms (Balanced)
1/8" / 3.5 mm Aux Input:
10 Kilohms (Unbalanced)
Connectivity
Audio I/O 4 x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Mic/Line Input
2 x 1/4" TRS Female Balanced/Unbalanced Line/Inst Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Line/Aux Input
1 x XLR 3-Pin Male Balanced Line/Mix Thru
Phantom Power Yes
Network I/O None
Wireless Connectivity Bluetooth
Bluetooth
Bluetooth 5.0
Power
AC Input Power 100 to 230 VAC, 50 / 60 Hz
Power Consumption 300 W
AC Power Connector 1 x IEC Input
Transport Options Subwoofer:
1 x Handle (Top)
Speaker:
1 x Carry Case
Construction Material Perforated Metal Grille, Polypropylene
Dimensions 33.5 x 25.5 x 19" / 850 x 647 x 482 mm
Weight 55.1 lb / 25 kg
