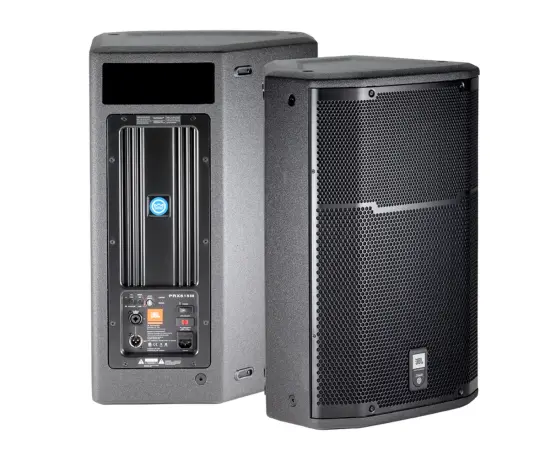

JBL PRX615M
DISCONTINUED
This product has been discontinued by the manufacturer. Please contact us to find a replacement.
*Discontinued
JBL PRX-615 M
The PRX600 Series represent an evolutionary step in the efficient use of
amplifier power, rugged durability and enhanced versatility in a self-powered
loudspeaker. Designed from the ground up to perform in the real world of sound
reinforcement where challenging audio environments, high ambient noise levels
and loud volumes are the norm, the PRX600 Series are built to last a lifetime
using our reliable and trustworthy, tour-tested technology. Knowing you can rely
on your system to deliver everything you need gives you the freedom to deliver
your best. That’s performance you can trust.
The 2-way 15" is the most recognizable form of portable PA loudspeakers and
offers the perfect balance between size and performance. The PRX615M truly is an
exception; it’s small, light weight, versatile and powerful.
Features:
Maximum SPL Output 135db peak
380 mm (15 in) Differential Drive® dual voice-coil and magnetic gap, neodymium
woofer
37.5mm (1.5 in) annular polymer diaphragm, neodymium magnet compression driver
1000 Watt (dual 500 watt) Class-D, Crown® digital amplifier
DSP input section with dbx® Type IV™ limiter circuit, crossover, dynamic
limiting, component optimization, selectable system EQ
Professional XLR line and ¼" Mic/Instrument inputs, with loop through
Integrated 36mm dual-angle pole mount socket
Large die-cast aluminum handle bar with a fine tuned ergonomic rubber grip for
maximum comfort
8 M10 Suspension points and 1 pullback point
System Type : Self-powered 15",two-way, bass-reflex
Maximum SPL Output:Full Range: 135 dB peak Monitor: 134 dB peak
Frequency Range (-10 dB): Full Range: 54 Hz – 18 kHz Monitor: 48 Hz – 20 kHz
Frequency Response (±3 dB): Full Range: 45 Hz – 19 kHz Monitor: 60 Hz – 18 kHz
Coverage Pattern:90º x 50º nominal
Amp Design:Crown® Class D
Power Rating:1000 W ( 2 x 500 )
Dimension (H x W x D): 26.0 in x 16.9 in x 16.3 in
Net Weight:43.5 lb
Applications :
The 2-way 15" offers the perfect balance between size and performance. The
PRX615M truly is an exception; it’s small, light weight, versatile and powerful.
The performance and asymmetrical design make this a perfect choice for
musicians, entertainers and DJ’s when portability is key, or when hung by the
suspension points, an exceptional light-duty installation speaker. All PRX600
Series speakers were designed to excel in sound reinforcement where challenging
audio environments and loud volumes are the norm. For applications requiring
full bandwidth sound reproduction, the PRX615M delivers the optimum balance. For
live music, recorded music playback and speech the user has the option of
tailoring the EQ, ‘flat’ for speech intelligibility, and ‘boost’ for enhanced
bass and crisp highs in recorded music playback. A microphone can be directly
connected to the speaker input for quick PA applications. Coupled with a PRX600
sub-woofer the system becomes an efficient, full-range sound system.
The PRX615M is comprised of a 380 mm (15 in) 265F Differential Drive® dual
voice-coil and magnetic gap, neodymium woofer, a 2408H-1 37.5 mm (1.5 in)
annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50°
horn, all driven by 1000 watt (dual 500 watt) Crown® Class-D power amplifier. A
propriety DSP chip is at the core of a fully featured input section, providing
user selectable system EQ, protection, input sensitivity selection, cross-over
functionality, dynamic limiting and discrete component optimization.
All PRX600 cabinets are built from a combination of 25mm (on the top and bottom
for added rigidity) and 18mm, strong, light-weight poplar plywood made
structurally sound with tongue and groove joints. All PRX600 Series cabinets are
protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from
dent-resistant 16 gauge steel and handles are made from light-weight
glass-filled nylon for added strength and durability. All M10 suspension points
are constructed from 14 gauge steel and have been tested with a yield-strength
of 1000 lbs. each.
The amplifier input panel offers XLR or ¼ inch jack compatibility and a
sensitivity switch provides extra flexibility, making it possible to connect
literally any sound source without using a mixer. Signal present and overload
lights indicate the system status and assist in setting the optimum level, via
the level control knob
The JBL PRX615m has the perfect blend of features to impress anyone. These speakers sound clean and not harsh even when pushed to there limits. There are made out of birch wood and coated with a rino like coating. The neo magnets also make this a very light speaker to transport.
