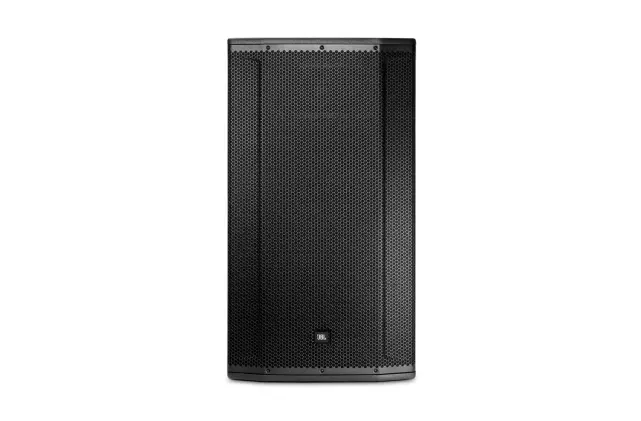

SRX835 is a three-way full range speaker with a 15” woofer made for use as a medium duty main PA, or rear or side fill. Featuring M10 suspension points, a standard 35mm pole cup and feet for both floor standing and subwoofer standing use, the SRX835 is an ideal solution for musicians, bands, and DJs, concert use, public speaking or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD.

Features:
Premium JBL Transducers
Rugged, versatile enclosures
Tunings available for Crown amps and dbx signal processors
Fully supported in Audio Architect
Power Handling: 3200W Peak, 1600W Program, 800W Continuous
Frequency Range: 32Hz-20kHz
Frequency Response: 43Hz-20kHz
Max SPL: 130dB (Peak)
Coverage Pattern: 60x40
Amplification options: Passive/Bi-Amp

Specifications:
System Type Passive 15”, three-way, bass-reflex
Maximum SPL Output 124dB (Continuous), 130dB (Peak)
Frequency Response (-10dB) 32hz - 20khz
Frequency Response (-3 dB) 43Hz - 20Hz
Sensitivity 95dB
System Power Rating 3200W Peak, 1600W Program, 800W Continuous
Nominal Impedance 8 Ohm
Inputs NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive/Bi-Amp
LF Driver 2275F
MF Driver 2107H
HF Driver 2432H
Coverage Pattern 60 x 40
Crossover Frequency 330hz & 2.4khz
Enclosure 18mm Duraflex coated plywood
Suspension/Mounting Single 36mm pole socket, 12 x M10 Suspension points
Handles 2
Finish Obsidian Duraflex™ finish
Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D) 476mm x 544mm x 984mm (18.74in x 21.4in x 38.74in)
Weight 95.0 lbs (43.1kg)
