JBL SRX906LA | Dual 6.5in - 134dB

$2,199.00 new
Reviews: 0 Description Financing Q&A: 0
or $200/mo $0 Shipping, $0 Tax



Backordered - Call for ETA
Low Price Guarantee



or $ 200/mo $0 Shipping, $0 Tax


Product Description
The SRX900 Series embodies the advanced performance principles that drive JBL's development of audio products that make a real difference in the world of professional audio. This next-generation family of powered line arrays and subwoofers addresses the growing need for scalable small and medium-format professional sound-reinforcement solutions for rental companies, fixed installations and musicians seeking the ultimate combination of performance and portability.

The SRX906LA is a compact, two-way, active line array element that can cover a variety of small- to mid-sized applications, including rental houses, touring artists, DJs, and installations. Built-in DSP and amplification offer a plug and play experience while providing consisten¬cy and optimum performance anywhere in the world.

JBL transducers and a new acoustic design provide excellent sound fidelity and best-in-class maximum SPL. The product features dual 6.5-inch neodymium Differential Drive® woofers and a three-inch compression driver. The computer-optimized enclosure is made out of composite material and offers excellent performance while remaining compact and lightweight.

An innovative three-point rigging system and a full set of accessories allow systems to scale and solve the diverse needs of production companies and installation houses. JBL Performance is a new, full-featured software package that gives users control of the system on various platforms, including Windows, macOS, and iPad OS.

FEATURES:

High-performance, high-density system solution in a truck-pack friendly format
High-power-handling transducers deliver low distortion, high fidelity, and class-leading output
Built-in, passively cooled Class D amplification with a universal power supply
Dual Ethernet ports with Neutrik etherCON connectors
Supports HARMAN HControl Ethernet
User-controllable DSP
LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers

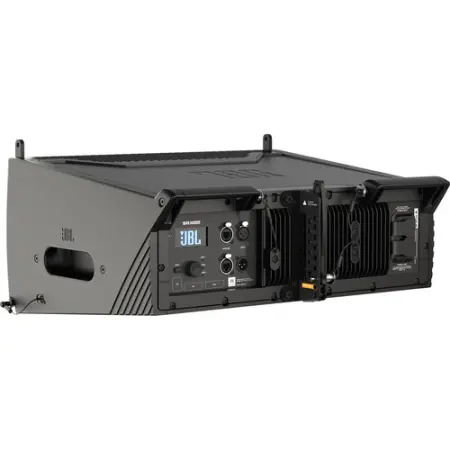

Rear-panel LCD provides complete access to control features
Reinforced composite loudspeaker enclosures
Innovative three-point rigging system

SPECIFICATIONS:

ACOUSTICAL
Frequency Range
(-10 dB) :
(-3 dB) :
63 Hz-17 kHz (array preset)
70 Hz-15 kHz (array preset)
Coverage Pattern (-6 dB)
Horizontal :
Vertical :
120 degrees nominal (500 Hz-16 kHz)
Varies with array size and configuration
Maximum Peak Output1
: 134 dB
System Type : Line Array, two-way active
TRANSDUCERS
Low Frequency : (2) JBL 2186G, 6.5 in diameter, dual 2.0 in diameter voice coil, neodymium Differential Drive®
High Frequency : (1) JBL 2432H-3, 1.5 in exit neodymium compression driver with 3 in voice coil
AUDIO INPUT
Input Type : Balanced line level
Connectors : (2) Neutrik XLR (IN/OUT)
Nominal Input Sensitivity : +6 dBu (system starts limiting with broadband noise and music)
Maximum Input Level : 21 dBu
Input Impedance : 100 kΩ
DSP
Sample Rate : 48 kHz
Bit Depth : 24 bit
USER INTERFACE
Type : LCD screen, encoder, Back button, (4) LED Indicators (3 single, 1 bi-color)
NETWORKING
Type : TCP/IP
Protocol : Harman HControl
Speed : Dual 100 Mbps ports
Connectors : (2) Neutrik etherCON®
AC POWER
Voltage Range
Nominal :
Limits :

100-240 VAC, 50/60 Hz
80-260 VAC, 50/60 Hz
Connectors : Dual (IN/OUT) Neutrik powerCON TRUE1 TOP®
CURRENT DRAW
120 V 208 V 240 V
Standby : 0.2 A 0.1 A 0.1 A
Idle : 0.3 A 0.2 A 0.2 A
Continuous4
: 1.3 A 0.8 A 0.7 A
Maximum Instantaneous Peak5
: 7.0 A 5.4 A 4.7 A
Peak Inrush6
: 2.2 A 3.6 A 4.3 A
PHYSICAL
Enclosure : Polypropylene, four integral recessed handholds
IP Rating7
: IP54
Suspension : Three-point captive suspension plates, quick release pins, steel with anti-corrosion coating
Inter-enclosure Angle (deg) : 0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Grille : Powder coated 1.5 mm (16-gauge) hex perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D) : 243 mm x 507 mm x 420 mm
9.5 in x 19.9 in x 16.5 in
Net Weight :
Shipping Weight :
16.8 kg (37 lbs)
19.4 kg (43 lbs)
NETWORKING
Type : TCP/IP
Protocol : Harman HControl
Speed : Dual 100 Mbps ports
Connectors : (2) Neutrik etherCON®
AC POWER
Voltage Range
Nominal :
Limits :

100-240 VAC, 50/60 Hz
80-260 VAC, 50/60 Hz
Connectors : Dual (IN/OUT) Neutrik powerCON TRUE1 TOP®
CURRENT DRAW
120 V 208 V 240 V
Standby : 0.2 A 0.1 A 0.1 A
Idle : 0.3 A 0.2 A 0.2 A
Continuous4
: 1.3 A 0.8 A 0.7 A
Maximum Instantaneous Peak5
: 7.0 A 5.4 A 4.7 A
Peak Inrush6
: 2.2 A 3.6 A 4.3 A
ORDERING INFORMATION
SKU : JBL-P3230MX | SRX906LA for Global
JBL-P3246MXCN | SRX906LA for China
Included : (1) SRX906LA | (1) Neutrik NAC3FX-W-TOP | (1) Neutrik NAC3MX-W-TOP

JBL SRX906 LA   ( JBL SRX906-LA )
