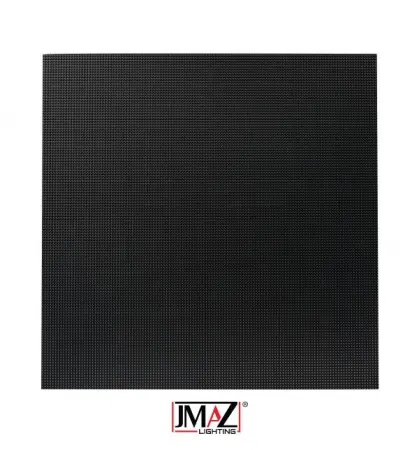

JMaz EVK3 IP Curvable LED Video Panel (Outdoor friendly, cables included)

$1,759.99 new

VIP Image

Get $230 gift card back. Or Join VIP for up-front sitewide discounts.


or
Pay $0 Tax   $0 Shipping   0% Financing
Available - Call to confirm exact lead time

The all-new JMAZ EVK 3 IP is a modular LED video panel that offers a 3.9mm Pixel Pitch. With the EVK3IP, you can create spectacular video graphics and displays projecting vivid colors and real-life imagery. Setting up the EVK3 IP is quick and easy with the integrated magnets and casket locks. Because of its ease of use and portability, you can be as creative as you want to have the flexibility to mount the panels vertically or horizontally and the ability to select different aspect ratio options. Due to increased brightness and IP65 rating, these are perfect for outdoor events. Design, create and dazzle with the JMAZ EVK3 IP.

Videos walls can be set up in a curved fashion since each panel can be connected +/- 0, 2.5, or 5 degrees. Automatic fast locks make is super easy (connect and lock each panel in less than 2 seconds). Each panel has an independent power supply box, flip-up protectors for all four corners, and support for either ground stacking or optional hanging rig bars.

•  Pixel Pitch: 3.9mm
•  Refresh Rate: 3840Hz
•  LED Type: SMD1921 (Black)
•  Pixel Configuration: 1R1G1B
•  Module Size (mm): 250 x 250
•  Module Resolution: 64 x 64
•  Pixel Density: 65,536 dots per square meter
•  Cabinet Size (mm): 500 x 500
•  Cabinet Weight: 16 lbs
•  Hanging Support: Yes
•  Max Power Consumption: 750W/m2
•  Avg. Power Consumption: 250W/m2
•  Colors: 16.7 million
•  Gray Scale: 16-Bit
•  Color Temperature: 3000K-10000K
•  Driving Method: 1/8 Scanning
•  Brightness: 4,500 nits
•  Brightness Control: 256 Grade
•  IP Grade: IP65
•  INCLUDED: Receiving cards and Data/Power Cables for each Panel

IDEAL VIEWING DISTANCE FOR VIDEO WALLS:

2.8mm Pitch = Comfortable Image @ 31ft / Perfect Image @ 15.5ft

3.9mm Pitch = Comfortable Image @ 45ft / Perfect Image @ 22.5ft

(Perfect Image, also known as retina distance, this is a formulated calculation of the distance a person with 20/20 vision must move away from an LED screen to see a coherent image that is not pixelated. Comfortable Image, is an estimate of what would be a comfortable viewing distance for most people. This is a subjective estimate and will take into account variables like a person’s eye sight, resolution of content and type of content.)

Jmaz Lighting Outdoor video panel 3.9mm (JMaz IP Video Wall EVK 3 IP)
