System includes:
(1) IN164R
(1) IN264TH

IN164R
The JTS IN SERIES UHF Diversity Wireless System features REMOSET the World’s First Remote Control RF setting function that allows automatic remote control frequency settings of the Transmitter from the Receiver.
* REMOSET : Uses a RF signal to send frequency change settings from the IN SERIES receiver to the transmitter in a fraction of a second.
* 200~480 meter operation distance.
* LCD Displays: RF Level, Audio Level, Low Battery Indicator, Antenna Status, Channel Selection.
* IN164R is single channel version of IN264R.
* IN164R with band width of 36 MHz.
* Preset 6 groups, maximum 23 channels in one group.

Specifications:

Frequency Preparation PLL Synthesized Control
Remoset Radio Frequency : 2.4GHz
Effective distance: 10m
Carrier Frequency Range 36MHz within 502~960 MHz
S/N Ratio >105dB
T.H.D <0.6%@1KHz
Display LCD
Display Contents Channel, Antenna A/B, Mute Display, RF/AF Level Meter, Low battery, ID Number
Controls Power On/Off, Frequency Up/Down, Lock-on,
ID Pairing, Remoset
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone & Noise Mute
Operation Voltage 12-18 VDC, 500mA
Output Connector 1 XLR Balanced Socket
1 Ø6.3mm unbalanced phone jack
Dimension(m/m) 210mm(W) * 40mm(H) * 165.5mm(D)

IN264TH
* Phase-locked Loop (PLL) synthesized tuner.
* Powered by 2 x AA batteries with 12 hrs. average battery life.
* Heavy Duty plastic case.
* LCD display with channel and battery life indicator, ID number.
* The “lock-on” function prevents tampering and RF interruption.
* Extended dynamic range and smooth frequency response.
* Noise mute and tone-key squelch.
* The IN264TH Handheld Transmitter features JTS’s New SAM-8WLN mic capsule for high gain before feedback and super low handling noise.
* Interchangeable capsule module for either condenser or dynamic capsule.
* Internal antenna design.

Specifications:

Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
RF Outputs 10mW / 50mW
(Depend on Local Regulation)
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Channel, Battery Fuel Gauge, ID Number
Controls Power On/Off, AF Level, Frequency Up/Down, Lock-on Mode,ID Pairing
Spurious Emissions <-50 dBC
Audio Frequency Response 50~16,000 Hz
Battery UM3, AA 1.5V*2

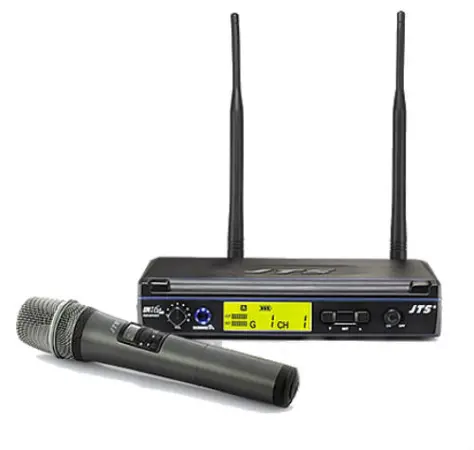

JTS Professional IN164r/in264th system (JTS wireless handheld mic system)
