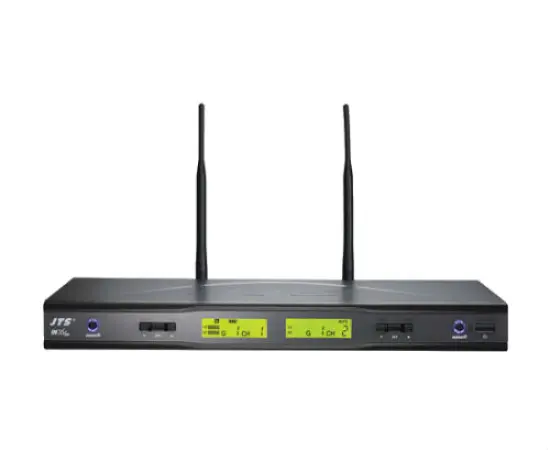

JTS IN264R

IN264R
UHF PLL Dual Channel Diversity Receiver

The JTS IN SERIES UHF Diversity Wireless System features “ the World’s First Remote Control RF setting function that allows automatic remote control frequency settings of the
Transmitter from the Receiver.
* REMOSET : uses a RF signal to send frequency change settings from the IN Series receiver to the transmitter in a fraction of a second.
* 200~480 meter operation distance.
* LCD Displays: RF Level, Audio Level, Low Battery
Indicator, Antenna Status, Channel
Selection.
* IN264R with band width of 36 MHz.
* Preset 6 groups, maximum 23 channels in one group.

Specifications:

Frequency Preparation PLL Synthesized Control
Remoset Radio Frequency : 2.4GHz
Effective distance: 10m
Carrier Frequency Range: 36MHz within
470~960 MHz
S/N Ratio >105dB
T.H.D. <0.6%@1KHz
Display LCD
Display Contents RF Level, Audio Level, Low
Battery Indicator, Antenna Status, Channel
Selection
Controls Power On/Off, Frequency Up/Down,
Lock-on, ID Pairing, Remoset
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone & Noise Mute
Operation Voltage 12-18 VDC, 600mA
Output Connector 2 XLR Balanced Socket
1 Ø6.3mm unbalanced phone jack
Dimension(mm) 420mm(W) * 44mm(H) *
211mm(D)

JTS Professional in264r (JTS dual channel wireless receiver)
