This product has been discontinued by the manufacturer. Please contact us to find a replacement.

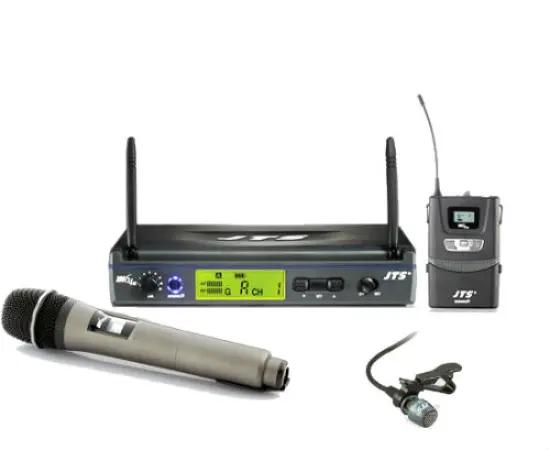

UHF PLL Single Channel Diversity Wireless Microphone System
Includes:
(1) IN64R (Receiver)
(1) IN64TB + CM-501 (Body Pack & Lavalier)
(1) IN64TH (handheld)
REMOSET uses a RF signal to send frequency change settings from the IN64R receiver to the IN64TH (IN64TB) transmitter in a fraction of a second.
* 64 UHF channels arranged in 4 preset groups.
* 300 Ft. (100 meter) operation distance.
* LCD Displays: RF Level, Audio Level, Low Battery Indicator, Antenna Status, Channel
Selection.
**This is a SINGLE channel receiver so you can use the handheld OR the lav, but you can't use them at the same time.
Specifications:
IN64R
Frequency Preparation PLL Synthesized Control
Remoset Radio Frequency : 2.4GHz
Effective distance: 10m
Carrier Frequency Range 502~960 MHz
S/N Ratio >105dB
T.H.D <0.6%@1KHz
Display LCD
Display Contents Channel, Antenna A/B, Mute Display, RF/AF Level Meter,
Low battery, ID Number
Controls Power On/Off, Frequency Up/Down, Audio Level, Lock-on,
ID Pairing, Remoset
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone & Noise Mute
Operation Voltage 12-18 VDC, 250mA
Output Connector 1 XLR Balanced Socket
1 Ø6.3mm unbalanced phone jack
Dimension(m/m) 210mm(W) * 40mm(H) * 165.5mm(D)
IN64TH
Frequency Preparation PLL Synthesized Control
Channel number 64
Carrier Frequency Range 502~960 MHz
RF Outputs 10mW
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Channel, Battery Fuel Gauge,
ID Number
Controls Power On/Off, AF Level,
Frequency Up/Down, Lock-on Mode,ID Pairing
Spurious Emissions <-50 dBC
Audio Frequency Response 50~16,000 Hz
Battery UM3, AA 1.5V*2
IN64TB
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
RF Outputs 10mW / 50mW
(Depend on Local Regulation)
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Channel, Battery Fuel Gauge,
Controls ID Number
Power On/Off, AF Level,
Frequency Up/Down, PAD, Gain Control, ID Pairing
Lock-on Mode
Output connector 4P mini XLR
Spurious Emissions <-50 dBC
Audio Frequency Response 40~18,000 Hz
Battery UM3, AA 1.5V*2
CM-501
Connector 4P Mini XLR
Frequency Response 100~15,000 Hz
Polar Pattern Cardioid
Sensitivity (at 1KHz) -60±3 dB* (1mV)*0dB=1V/μbar
Impedance 2.2kΩ
Max. SPL for 1% THD 130dB
Dimension(mm) Ø10.1mm(W)* 26.4mm(H)
Net Weight 21.5g
