This product has been discontinued by the manufacturer. Please contact us to find a replacement.

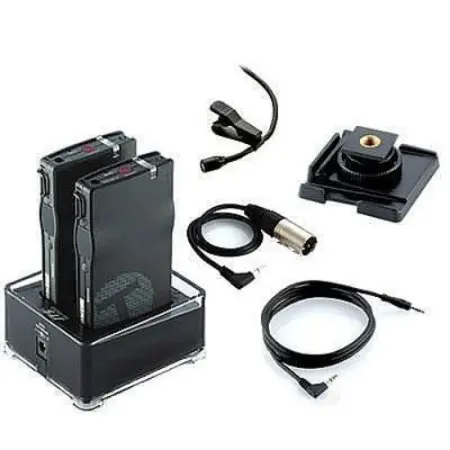

Includes:
(1) KA-10T Wireless Camera Transmitter
(1) KA-10R Wireless Camera Receiver
(1) KAC50X Camera Cable (XLR - mini jack)
(1) KA-10R Wireless Camera Receiver Cable (mini - mini)
(1) Camera Hot Shoe Mount Adaptor
(1) CM-201 Miniture Lavaliere Microphone
(1) TG-10CH2 2-slot Charger
The KA-10 system includes KA-10R, KA-10T, KAC50X / KAC150 cable, TG-10CH2, shoe mount adapter, and CM-201 microphone. It is designed for both professional and consumer video camera. The CM-201 provides omni-directional pick up pattern to expand the coverage to mike a meeting.
* Lithium battery can goes for 14 hours which is useful for travel.
* UHF PLL 16 selectable frequency can render multi system application.
* Over 60 meter operation distance virtually meets all kinds of application.
Specifications:
KA-10R
Frequency Preparation. PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
LED Display Channel
Controls Power On/Off, Channel selection
Volume control
Audio Frequency Response 40~18,000 Hz
Output connector 1/8” Dummy stereo Phone Jack
Battery life 14 hours typical
Battery Lithium cell (3.7V, 1300mAh)
Dimension(mm) 54mm(W)* 17mm(D)* 99mm(H)
KA-10T
Internal Microphone Omni-directional Condenser Microphone
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
RF Outputs 10mW
Stability ±10kHz
Frequency Deviation ±48kHz
LED Display Channel
Controls Power On/Off, Channel selection,
Volume control
Spurious Emissions <-50 dBC
Audio Frequency Response 40~18,000 Hz
Microphone input connector 1/8” Mono Phone Jack
Battery life 14 hours typical
Battery Lithium cell (3.7V, 1300mAh)
Dimension(mm) 54mm(W)* 17mm(D)* 99mm(H)
TG-10CH2
Number of charging slot TG-10CH2 : 2 (receiver or transmitter)
Power requirement TG-10CH2 : 12~18VDC, 500mA
LED Indicator
Power Connected: Flash Green
Charging: Green
Full Charged: Turn off
Dimensions(mm) TG-10CH2 : 85mm(W)* 75mm(D)* 41mm(H)
CM-201
Connector 4P Mini XLR
Frequency Response 60 ~ 15,000 Hz
Polar Pattern Omni-directional
Sensitivity (at 1KHz) -60±3 dB* (1mV)*0dB=1V/μbar
Impedance 2.2kΩ
Max. SPL for 1% THD 130dB
Dimension(mm) Ø5mm(W)* 9mm(H)
Net Weight 20.7 grams
