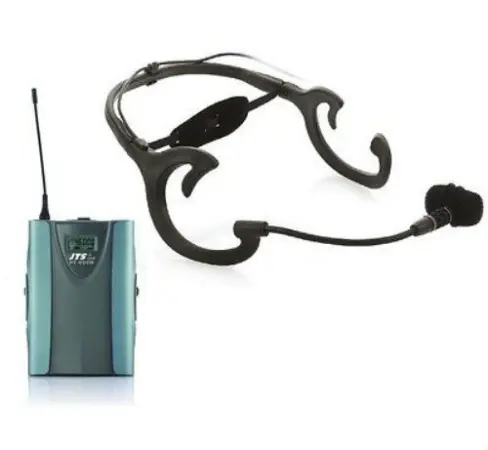

headset and bodypack
UHF PLL body-pack transmitter with headset microphone
* 193 Selectable channels.
* Phase-locked Loop (PLL) synthesized tuner.
* Powered by 2 x AA batteries with 12 hrs. average battery life.
* 4 Pin Mini XLR connector.
* Heavy Duty metal case.
* LCD display.
* The “lock-on” function prevents tampering and RF interruption.
Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
3x Frequency Range 856.100 - 864.900 MHz (F band)
606.500 - 629.900 MHz (U band)
721.500 - 748.375 MHz (G band)
658.125 - 678.500 MHz (D band)
487.125 - 506.500 HHz (I band)
502.000 - 694.000 MHz (T band)
RF Outputs 10mW
Frequency Deviatio ±48KHz
LCD Display Frequency, Battery Fuel Gauge
Controls Power On/Off, AF Level,
Frequency Up/Down, Lock-on Mode
Spurious Emissions <-50 dBC
Audio Frequency Response 40~18,000 Hz
Battery UM3, AA 1.5V*2
* Uni-direction for high-quality voice pick-up.
* Excellent gain-before-feedback and noise isolation.
* Lightweight benefits great freedom and mobility.
* Ergonomic design ensures comfortable wearing.
Connector 4P Mini XLR
Frequency Response 30~18,000 Hz
Polar Pattern Cardioid
Sensitivity (at 1KHz) -68±3 dB* (0.4mV)*0dB=1V/μbar
Max. SPL for 1% THD 130dB
Dimension(mm) 285mm(W)* 55mm(H)* 111.3mm(D)
Net Weight 56.3 grams
