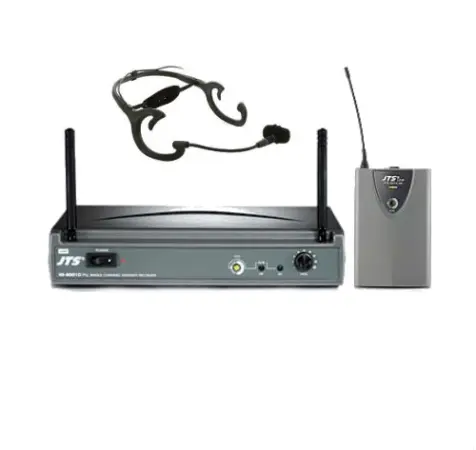

JTS US-8001D/PT-850B + CX-504 Headset System

$369.00 new
CALL or VIP REGISTRATION (free) new
Warranty
Description Q&A: 0 Reviews: 0 Financing
or $34/mo $0 Shipping, $0 Tax



Available - Ships in 1-2 days Low Price Guarantee



or $ 34/mo $0 Shipping, $0 Tax


User Reviews

Average rating: 0 , based on 0 reviews
read all reviews
Product Description

JTS Professional 8001D headset mic System   ( JTS US-8001D/PT-850B CX-504 )

PT-850B
* 16 Selectable channels.
* PLL synthesized oscillator type.
* Powered by 2 AA batteries.
* Equipped with 4P Mini XLR connector.
* Compact, heavy duty plastic housing.
* LED display.

Specifications:

Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
3x Frequency range 856.100 - 864.900 MHz (F band)
606.500 - 629.900 MHz (U band)
721.500 - 748.375 MHz (G band)
658.125 - 678.500 MHz (D band)
487.125 - 506.500 HHz (I band)
502.000 - 694.000 MHz (T band)
RF Outputs 10mW
Stability ±10KHz
Frequency Deviatio ±48KHz
LCD Display Power On / Off, Low battery
Controls Power On / Off,Channel Up / Down
Output connector 4P mini XLR
Spurious Emissions <-60 dBC
Audio Frequency Response 50~16,000 Hz
Battery UM3, AA 1.5V*2

US-8001D
* Preset 16 selectable UHF channels.
* Single transmitter operation.
* Diversity technology prevents dropouts in the RF link.
* PLL synthesized technology.
* Noise mute and pilot tone squelch.
* Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.
* Tuned antennas maximize the effective range of the wireless link.
* Compact half rack space design.

Specifications:

Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
3x Frequency range 856.100 - 864.900 MHz (F band)
606.500 - 629.900 MHz (U band)
721.500 - 748.375 MHz (G band)
658.125 - 678.500 MHz (D band)
487.125 - 506.500 HHz (I band)
502.000 - 694.000 MHz (T band)
S/N Ratio > 105dB
T.H.D <0.6%@1KHz
Display LED
Display Contents Antenna A/B, RF/AF Status
Controls Power On/Off, Channel Selecting, Audio Level
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone, Noise and Mute
Operation Voltage US-8001D/US-8001DB : 12-18 VDC, 150mA
US-8002D/US-8002DB : 12-18 VDC, 200mA
Output Connector 1 Balanced XLR socket (2 for US-8002DB/US-8002D)
1 Unbalanced Ø6.3mm phone jack
Dimension(m/m) US-8001DB/US-8002DB : 210mm (W)* 40mm (H)* 181mm (D)
US-8001D/US-8002D : 210mm (W)* 40mm (H)* 171mm (D)

CX-504
* Uni-direction for high-quality voice pick-up.
* Excellent gain-before-feedback and noise isolation.
* Lightweight benefits great freedom and mobility.
* Ergonomic design ensures comfortable wearing.

Connector 4P Mini XLR
Frequency Response 30~18,000 Hz
Polar Pattern Cardioid
Sensitivity (at 1KHz) -68±3 dB* (0.4mV)*0dB=1V/μbar
Impedance 680Ω
Max. SPL for 1% THD 130dB
Dimension(mm) 285mm(W)* 55mm(H)* 111.3mm(D)
Net Weight 56.3 grams
