901D Complete Handheld System

Mh-950
* 193 Selectable channels.
* Phase-locked Loop (PLL) synthesized tuner.
* Advanced circuitry ensures stable signal transmission.
* Extended dynamic range and smooth frequency response.
* Noise mute and tone-key squelch.
* Interchangeable capsule module for either condenser or dynamic capsule.
* Internal antenna design.
* The “lock-on” function prevents tampering and RF interruption.

Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
RF Outputs 10mW
Stability ±10KHz
Frequency Deviation ±48KHz
LCD Display Frequency, Battery Fuel Gauge, Sensitivity
Controls Power On/Off, Mode Setting, AF Level, Frequency Up/Down, Lock-on Mode
Spurious Emissions <-50 dBC
Audio Frequency Response 50~16,000 Hz
Battery UM3, AA 1.5V*2


US-901D
* Single Transmitter operation.
* PLL synthesized technology with 193 selectable UHF channels.
* True Diversity Technology prevents dropouts in the RF link.
* Equipped with S.A.W. filter for interference free operation.
* Built-in mute, Noise and tone-key squelch.
* ”Lock-on” mode avoids accidental changes of frequency, sensitivity and power-off.
* Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.
* Tuned antennas for the most stable RF reception.
* Compact half rack space design with all metal receiver housing.

Frequency Preparation PLL Synthesized Control
Carrier Frequency Range 502~960 MHz
S/N Ratio > 105dB
T.H.D <0.6%@1KHz
Display LCD
Display Contents Frequency, Antenna A/B, Mute Display, RF/AF Level Meter, Battery Fuel Gauge
Controls Power On/Off, Frequency Up/Down, Frequency
Scan, Audio Level, Lock-on
Audio Output Level -12dB
AF Output Impedance 600Ω
Squelch Pilot Tone & Noise Mute
Operation Voltage 12-18 VDC, 200mA
Output Connector 1 XLR Balanced Socket
1 Ø6.3mm Unbalanced phone jack
Dimension(m/m) 212mm (W)* 40mm (H)* 125mm (D)

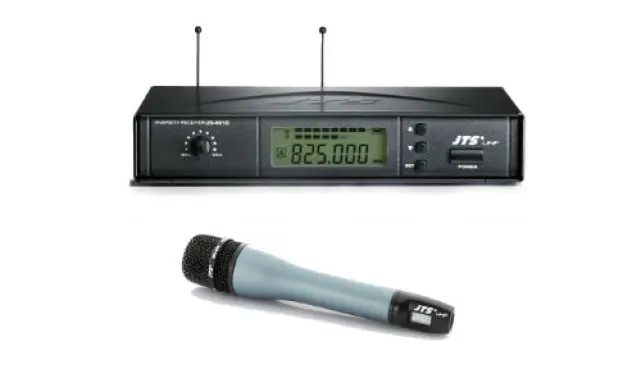

JTS Professional US-901D Mh-950 (JTS 901D system)
