Purpose-designed for CURV 500 installations the I AMP is a low-profile 4-channel Class D rackmount amplifier with high-efficiency switch mode power supply and 10 Hz – 22 kHz frequency response. Sporting DSP control with presets for various satellite and subwoofer configurations, delay and parametric EQ each channel delivers 240 watts RMS at 4 ohms with less than 0.01% THD.

Operating the IAMP is simple and intuitive with just a single push encoder and easily readable high-contrast OLED display. It features a soft start circuit, DC, overcurrent, thermal and short circuit protection plus a temperature controlled low- noise fan. Input is on balanced XLR and terminal block connectors. The IAMP is capable of driving up to six CURV 500 satellites or one CURV500ISUB subwoofer per channel providing terminal block and speakON-compatible output connectors.

Features:

4 channels with DSP control
Purpose-designed for CURV 500® installations
Low-profile 1U 19" rackmount construction
Drives up to six CURV 500® satellites or one CURV 500® ISUB subwoofer per channel
Single push encoder operation
High-contrast OLED display
Temperature controlled low-noise fan
High-efficiency switch mode power supply
Only 6.8 kg

Specifications:

Product type Power Amplifiers
Type Installation Power Amplifiers
Rated ouput power (1kHz @ 2,7 Ohms) 4 x 240 W
Rated ouput power (1kHz @ 4 Ohms) 4 x 240 W
Rated ouput power (1kHz @ 8 Ohms) 4 x 120 W
Rated ouput power (1kHz @ 16 Ohms) 4 x 60 W
Output circuitry Class D
Frequency response 10 - 22000 Hz
Total Harmonic Distortion (THD) < 0,01 %
Protection circuits DC , over-current , short circuit , soft start , thermal overload
Controls Push encoder
Indicators OLED Display
Line inputs 4
Line input connectors terminal block , XLR
Loudspeaker outputs 4
Speaker output connections Speakon compatible , terminal block
Cooling temperature controlled low-noise fan, noiseless in idle mode
Operating voltage Switching power supply
Power consumption @ full load 1100W
Operating voltage 100 V AC - 240 V AC, 50 - 60 Hz , Switch mode power supply with power factor correction (PFC)
Width 482 mm
Height 44 mm
Depth 420 mm
Weight 6,8 kg

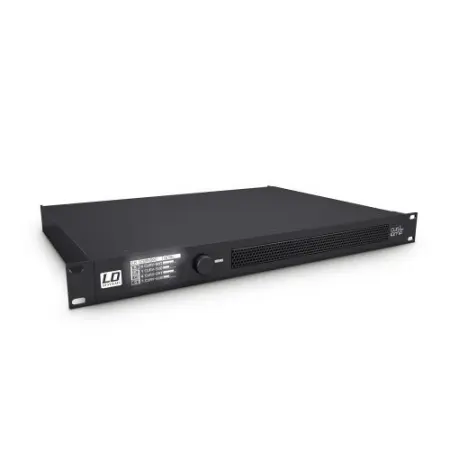

LD Systems LDS-CURV500IAMP (LD Systems CURV500 IAMP)
