LD Systems Curv 500 TS
COMPACT TOURING ARRAY SYSTEM
The compact, highly portable CURV 500® Touring Array System is fully scalable with up to four interlocking aluminium unibody line array elements operating on a SmartLink® plug and play adapter. It comes with two standard CURV satellites that feature a single 4" midrange and triple 1" high frequency drivers using LD Systems' WaveAhead® technology, and two duplex satellites with twice the speaker complement.

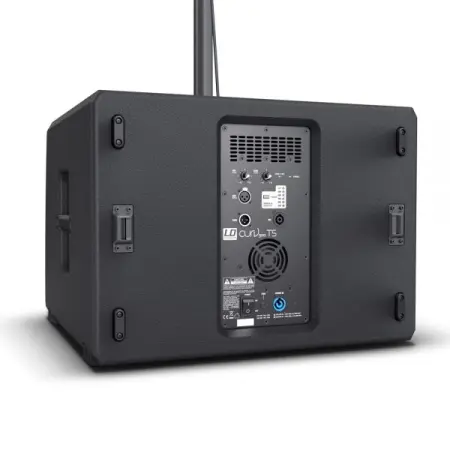

The ported 15" subwoofer base includes the Curv 500TS compact line array system's class D amplification with multiband limiter, short circuit, thermal and overcurrent protection. It sports comprehensive connectivity on combo and speakON compatible connectors, six DSP presets for quick system configuration, an M20 pole mount and three ergonomic handles for easy portability. Providing impressive versatility, the lightweight LD Systems CURV 500® Touring Set delivers high definition audio with powerful punch, superb balance and extended vertical and horizontal coverage. The set includes a subwoofer pole and dedicated speaker cable. Order this LD Systems array system today!
Product number: LDCURV500TS
Product type: Installation Loudspeakers, PA Complete Systems, PA Complete Systems Accessories
Type: Smartlink® Adapter, Array Satellites
Midrange size: 1 x 4", 2 x 4"
System output (RMS):: 1000W
Colour: Black, Black
Tweeter dimensions: 6 x 1", 3 x 1"
Load rating (RMS): 40W, 80W
Peak power: 80W, 160W, Subwoofer: 1400 W , Array Satellites: 600W
Number of array satellites: 4
Dispersion: 110° horizontal, vertical (each satellite) 5°, 110° horizontal, vertical (each satellite) 10°
Impedance: 8Ohm(s), 16Ohm(s)
Number of Smartlink adapters: 1
Number of subwoofers: 1
Material: die-cast aluminium
Max. SPL (continuous): 125dB
Surface: powder coated
Connectors: 1x Phoenix, 1x Speakon compatible
Max. SPL (peak): 131dB
Frequency response: 40 - 20000Hz
Dispersion (H x V): 110° horizontal, vertical 30°
RMS: Subwoofer: 700 W , Array Satellites: 300W
Height: 122mm, 240mm
Depth: 57mm, 122mm, 126mm
Amplifier: Class D
Weight: 48,2kg, 3,44kg, 3,3kg, 0,35kg
Features: metal grille, 2x M6 thread for optional wall mount, SmartLink® System, 2 x 16 mm flanges, M3 thread for safety rope for installations, internal crossover, WaveAhead® Technology
Protection circuits: thermal overload, overload, short circuit, DSP-based multiband limiter
Accessories (included): Power cord, Distance bar, Speaker cable CURV 500 CABLE 1 (2.2 m)
Low/mid driver dimensions: 15"
Low/mid driver dimensions (mm): 381mm
Cabinet construction: vented
Housing material: plywood
Cabinet surface: Polyurea
Dimensions Subwoofer (W x H x D): 600 x 437 x587mm
Subwoofer weight: 35.5kg
Subwoofer features: Threaded flange M20, Powercon, 6 System DSP Presets, 4 ergonomic handels, speakON output
