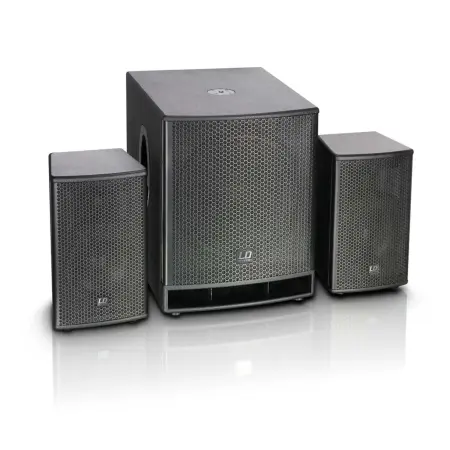

LD Systems Dave 18G3 System

DAVE 18 G3

Compact 18" active PA System

The DAVE 18 G3 is a powerful, yet easily portable subwoofer plus dual satellite PA system delivering crystal clear, dynamic audio with punchy lows in a compact package. With a 32 Hz - 20 kHz frequency response and peak SPL of 135 dB it is an excellent choice for a wide variety of mobile and installed sound applications.

Made from hard-wearing 15mm birch plywood the sealed satellite cabinets are loaded with 10"/1“ coaxial driver while the bass reflex sub enclosure houses an 18" woofer and the Class D amplification modules with a power output of 4.800 watts. Digital signal processing, multiband limiter, short cuircuit and overcurrent protection ensure superior sonic performance and reliable operation. The DAVE 18 G3's subwoofer provides XLR, 6.3mm and RCA input for a wide range of signal sources. It also features individual system and sub level controls, a phase reversal switch and the satellite connectors are Speakon compatible.

The DAVE 18 G3 hardware includes steel grilles, an M20 pole insert and LD's Evolutive handles on the sub for transport convenience as well as adjustable tilt stand mounts on the satellite speakers for optimum coverage angles.

Specifications

• Product number: LDDAVE18G3
• Product type: PA system
• Type: active
• Colour: black
• Max. SPL (continuous): 124dB
• Max. SPL (peak): 135dB
• Frequency response: 32 - 20000Hz
• Dispersion (H x V): 75 x 75°
• Weight: 63.2kg

Subwoofer

• Low/mid driver dimensions: 18"
• Low/mid driver dimensions (mm): 457.2mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Woofer voice coil: 4"
• Woofer voice coil (mm): 101.6mm
• Cabinet construction: vented
• Cabinet material: 18 mm Plywood
• Cabinet surface: texture paint
• Subwoofer width: 510mm
• Subwoofer height: 635mm
• Depth Subwoofer: 710mm
• Subwoofer features: threaded flange M20, LD Systems "Evolutive" handles

Mid/Hi System

• Midrange size: 10"
• Midrange size: 254mm
• Midrange magnet: Ferrite
• Midrange brand: Custom-made
• Midrange voice coil: 2"
• Midrange voice coil: 50.8mm
• Horn: coaxial
• Tweeter dimensions: 1"
• Tweeter dimensions (mm): 25.4mm
• Tweeter magnet: Ferrite
• Tweeter brand: Custom-made
• Tweeter voice coil: 1"
• Tweeter voice coil (mm): 25.4mm
• Mid/Hi system impedance: 4Ohm(s)
• Loudspeaker inputs: 1
• Speaker input connections: Speakon compatible
• Cabinet construction mid/high: Closed
• Mid/Hi system cabinet material: 15 mm Plywood
• Mid/Hi system cabinet surface: texture paint
• Mid/Hi system width: 300mm
• Mid/Hi system height: 460mm
• Mid/Hi system depth: 263mm
• Mid/Hi system features: SM707 stand mount 36 mm, ergonomically shaped insert handles

Amplifier Module (integrated in Subwoofer)

• Amplifier: Class D
• Amplifier Output System (RMS): 1200W
• Amplifier Output System (Peak): 4800W
• Protection circuits: short circuit, overload, limiter
• Cooling: Convection
• Controls: Power, Main Level, Subwoofer Phase Reverse, sub level
• Indicators: on, limit, signal, protect (protection circuit engaged)
• Operating voltage: Switching Power Supply, 100 V AC - 120 V AC, 50 - 60 Hz, 200 V AC - 240 V AC, 50 - 60 Hz (automatic conversion)
• Power consumption: 1200VA
• Line inputs: 2
• Line input connectors: 6.3 mm Jack, RCA, XLR
• Line output connectors: XLR
• Loudspeaker outputs: 2
• Speaker output connections: Speakon compatible
