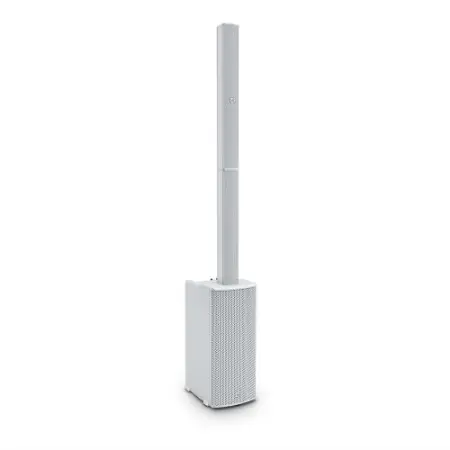

MAUI 11 G2W
PORTABLE COLUMN PA SYSTEM WITH MIXER AND BLUETOOTH WHITE
A complete sound system to carry in one go along with your instrument: that’s the MAUI 11 G2W. Simply put the two column elements in the padded shoulder bag, grab the subwoofer with one hand and your guitar or keyboard with the other. Assembling the all-in-one PA and monitoring system with its custom plug-and-play multi-pin connectors is just as easy. The MAUI 11 G2W delivers unmatched audio quality and astonishing coverage from a compact, elegant package. It has been engineered with years of experience in column systems to provide a user-friendly solution for small to medium gigs and installations.
The MAUI 11 G2W sports a complement of three 6.5" woofers, eight 3" full-range transducers and dual 1" neodymium compression drivers. Producing a punchy low end, balanced mid-range and silky smooth highs, they are driven by a lightweight Class D amplifier with a massive 1,000 watts peak power. LD Systems’ DynX® DSP technology ensures top performance and distortion-free audio at all times. It includes a multi-band limiter to prevent clipping, EQ, a compressor and a 3-way crossover for perfect time alignment.
The line array configuration of the MAUI 11 G2W results in extended coverage, high feedback resistance and extra wide dispersion that lets you perform without the need for separate monitors. The high frequency drivers’ waveguide has been designed using BEM, the numerical modeling of sound radiation and propagation. It reduces floor and ceiling reflections, effectively eliminates side lobes and achieves a uniform pattern so your audience hears you the same from front to back row.
The MAUI 11 G2W puts you in control with a built-in 4-channel mixer, system presets for mono or stereo setup and Bluetooth® audio streaming. If you’re a singer-songwriter, solo entertainer or DJ you’ll appreciate extraordinary audio performance and convenient portability. The column and sub can be placed apart making the system highly flexible and a great choice for installed sound applications, as well. With a selection of smart transport accessories and dedicated mounting hardware the MAUI 11 G2W is a comprehensive solution down to the smallest details.
Product number: LDMAUI11G2W
Product type: PA Complete Systems
Max. SPL (peak): 124dB
Frequency response: 50 - 20000Hz
Dispersion (H x V): 120° x 20°
Overall height: 2030mm
Midrange size: 8 x 3"
Midrange size: 8 x 76.2mm
Midrange magnet: Ferrite
Midrange brand: Custom-made
Midrange voice coil: 1"
Midrange voice coil: 25.4mm
Tweeter dimensions: 2 x1"
Tweeter dimensions (mm): 25.4mm
Tweeter magnet: Neodymium
Tweeter brand: Custom-made
Tweeter voice coil: 1"
Tweeter voice coil (mm): 25.4mm
Loudspeaker inputs: 1
Speaker input connections: Custom-made multipin
Cabinet construction mid/high: Closed
Mid/Hi system cabinet material: aluminium
Mid/Hi system cabinet surface: HD coating
Mid/Hi system width: 96mm
Mid/Hi system height: 620 / 730mm
Mid/Hi system depth: 104mm
Mid/Hi system weight: 5.4 / 2.6kg
Amplifier Module (integrated in Subwoofer)
Amplifier: Class D
Amplifier Output System (RMS): 500W
Amplifier Output System (Peak): 1000W
Protection circuits: thermal overload, short circuit, DC protection
Operating Temperature: 0 - 40°C
Hunidity range: 10% to 80%, (non-condensing)°C
Controls: Hi-Z Level, Bluetooth switch, MP3/Bluetooth Level, Mono/stereo switch, Line Level, Main Level, Power, sub level
Indicators: on, limit, protect (protection circuit engaged), signal, Setup, mono, stereo
Power connector: IEC power cable (included)
Operating voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
Power consumption Off / On / Max.: 0/11/600W
Line inputs: 2 x stereo
Line input connectors: RCA, XLR/6.3 mm jack
Line outputs: 1 x direct out
Line output connectors: XLR
Mic inputs: 1, XLR/6.3 mm jack
MP3 inputs: 1
MP3 input connectors: 3.5 mm jack
Hi-Z inputs: 1
Hi-Z input connectors: 6.3 mm Jack
Loudspeaker outputs: 1
Speaker output connections: Custom-made multipin
