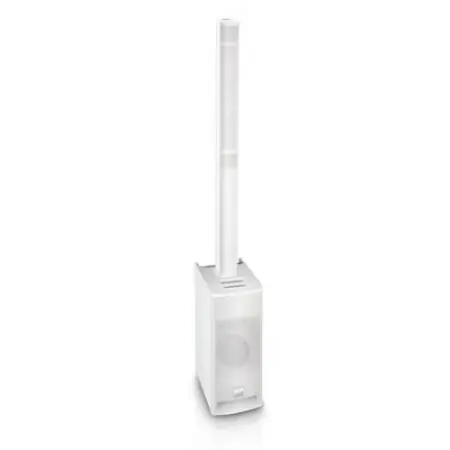

LD Systems Maui 11 Mix W

MAUI 11 MIX W Powered Column PA System with Integrated Mixer

The MAUI 11 MIX is a Class D powered vertical array system with plug-and-play convenience, extremely high feedback resistance and 120° horizontal coverage eliminating the need for dedicated monitors. Featuring an integrated mixer and digital processing it provides the perfect all-in-one solution for solo performers, small groups, mobile DJs and corporate applications.

Loaded with 2 x 6.5" drivers the system's vented subwoofer and the sealed aluminium column design with eight 3" speakers and single 1" horn tweeter deliver a peak output of 1200 watts. The subwoofer's connector panel includes inputs for microphone, line and hi-Z signals as well as MP3 players or laptops which can be used simultaneously. Individual controls allow for input channel, system and subwoofer level adjustment. The MAUI 11 MIX also features short circuit and overcurrent protection and LD Systems' proprietary LECC DSP which performs limiter, equalizer, compressor and crossover duties for reliable operation and exceptional audio quality.

Due to its custom made multi-pin connectors the MAUI 11 MIX is set up in no time requiring neither speaker cables nor stands while the minimum weight and compact dimensions provide easy portability.

Specifications:

Specifications
Product type: PA system
Type: Active
Color: White
Max. SPL (continuous): 114dB
Max. SPL (peak): 122dB
Frequency response: 50 - 20000Hz
Dispersion (H x V): (horizontal) 120°
Overall height: 1950mm
Weight: 23.7kg
Other features: DSP-based signal processing
Woofer characteristics
Low/mid driver dimensions: 2 x 6.5"
Low/mid driver dimensions (mm): 2 x 165.1mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 1.5"
Woofer voice coil (mm): 38.1mm
Cabinet construction: vented
Cabinet material: 15 mm Plywood
Cabinet surface: texture paint
Subwoofer width: 256mm
Subwoofer height: 650mm
Depth Subwoofer: 355mm
Mid/Hi System
Midrange size: 8 x 3"
Midrange size: 8 x 76.2mm
Midrange magnet: Neodymium
Midrange brand: Custom-made
Midrange voice coil: 1"
Midrange voice coil: 25.4mm
Horn: CD horn
Tweeter dimensions: 1"
Tweeter dimensions (mm): 25.4mm
Tweeter magnet: Neodymium
Tweeter brand: Custom-made
Tweeter voice coil: 1"
Tweeter voice coil (mm): 25.4mm
Mid/Hi system impedance: 4Ohm(s)
Loudspeaker inputs: 1
Speaker input connections: Custom-made multipin
Cabinet construction mid/high: Closed
Mid/Hi system cabinet material: aluminium
Mid/Hi system cabinet surface: HD coating
Mid/Hi system width: 94mm
Mid/Hi system height: 1300mm
Mid/Hi system depth: 95mm
Amplifier Module (integrated in Subwoofer)
Amplifier: Class D
Amplifier Output System (RMS): 300W
Amplifier Output System (Peak): 1200W
Protection circuits: thermal overload, short circuit, Multiband limiter
Cooling: Convection
Controls: Main Level, Line Level, Mic Level, MP3 / Hi-Z Level, sub level
Display: on, protect (protection circuit engaged), limit, signal
Operating voltage: Switching Power Supply, 100 V AC - 120 V AC, 50 - 60 Hz, 200 V AC - 240 V AC, 50 - 60 Hz (automatic conversion)
Power consumption Off / On / Max.: 0 / 11 / 600W
Line inputs: 2 x stereo
Line input connectors: RCA, 6.3 mm Jack, XLR
Input impedance: 25000Ohm(s)
Input sensitivity: - 5dBu
Line outputs: 1 x stereo
Line output connectors: XLR
Mic inputs: 1, XLR, 6.3 mm Jack
MP3 inputs: 1
MP3 input connectors: 3.5 mm jack
Hi-Z inputs: 1
Hi-Z input connectors: 6.3 mm Jack
Loudspeaker outputs: 1
Speaker output connections: Custom-made multipin
DSP characteristics
Bit depth AD/DA converter: 24 / 24bit
Internal sampling frequency: 48kHz
Signal/noise ratio: 100dB

LD Systems Maui 11Mix White (LD Systems LDMAUI11MIXW)
