LD Systems Maui 28 G2W

$1,299.99 new
CALL or VIP REGISTRATION (free) new
Warranty
  • FREE
    Tech Support
  • ID Theft
    Protection
  • No Sales Tax
    (outside NJ)
  • FREE
    Shipping
From: $118/mo Available - Ships in 1-2 days
  • visa
  • master-card-btn
  • american-btn
  • discover-btn
  • paypal-btn
  • amazon-btn
  •      bill-later
  • buynow-btn
  • affirm-btn
User Reviews

Please log-in to write your review

read all reviews
Product Description

Ld Systems Maui 28 G2 white  (LD Systems LDS-MAUI28G2W)

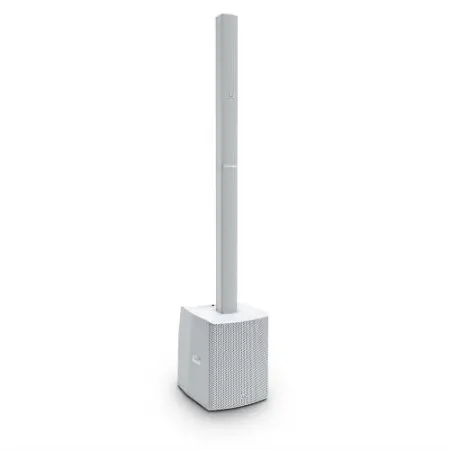

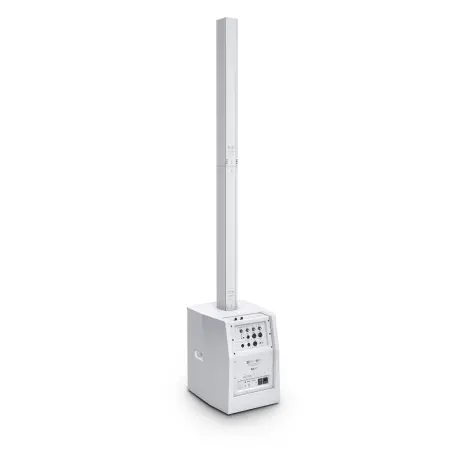

MAUI 28 G2W
COMPACT COLUMN PA SYSTEM WITH MIXER AND BLUETOOTH WHITE

A complete sound system to carry in one go along with your instrument: that’s the MAUI 28 G2W. Simply put the two column elements in the padded shoulder bag, grab the subwoofer with one hand and your guitar or keyboard with the other. Assembling the all-in-one PA and monitoring system with its custom plug-and-play multipin connectors is just as easy. The MAUI 28 G2 delivers unmatched audio quality and astonishing coverage from a compact, elegant package. It has been engineered with years of experience in column systems to provide a user-friendly solution for medium sized gigs and installations.

The MAUI 28 G2W sports a complement of two 8” woofers, sixteen 3” fullrange transducers and dual 1” neodymium compression drivers. Producing a punchy low end, balanced midrange and silky smooth highs, they are driven by a lightweight Class D power stage with a mighty 2,000 watts peak output. LD Systems’ DynX® DSP technology ensures top performance and distortion-free audio at all times. It includes a multiband limiter to prevent clipping, EQ, a compressor and a 3-way crossover for perfect time alignment.

The line array configuration of the MAUI 28 G2W results in extended coverage, high feedback resistance and extra wide dispersion that lets you perform without the need for separate monitors. The high frequency drivers’ waveguide has been designed using BEM, the numerical modeling of sound radiation and propagation. It reduces floor and ceiling reflections, effectively eliminates side lobes and achieves a uniform pattern so your audience hears you the same from front to back row.

The MAUI 28 G2W puts you in control with a built-in 4-channel mixer, system presets for mono or stereo setup and Bluetooth® audio streaming. If you’re a singer-songwriter, solo entertainer, DJ or play in a small combo you’ll appreciate extraordinary audio performance and convenient portability. The column and sub can be placed apart making the system highly flexible and a great choice for installed sound applications, as well. With a selection of smart transport accessories and dedicated mounting hardware the MAUI 28 G2W is a comprehensive solution down to the smallest details.

Specifications:

Product number: LDMAUI28G2W
Product type: PA Complete Systems
Type: active
Color: white
Max. SPL (peak): 126dB
Frequency response: 45 - 20000Hz
Dispersion (H x V): 120° x 20°
Overall height: 2059mm
Weight: 30.9kg

Woofer characteristics
Low/mid driver dimensions: 2 x 8"
Low/mid driver dimensions (mm): 2 x 203mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
Woofer voice coil: 2"
Woofer voice coil (mm): 50.8mm
Cabinet construction: vented
Cabinet material: 15 mm Plywood
Cabinet surface: texture paint
Subwoofer width: 370mm
Subwoofer height: 484mm
Depth Subwoofer: 480mm
Subwoofer weight: 19.7kg
Mid/Hi System
Midrange size: 16 x 3"
Midrange size: 16 x 76.2mm
Midrange magnet: Ferrite
Midrange brand: Custom-made
Midrange voice coil: 1"
Midrange voice coil: 25.4mm
Horn: Waveguide
Tweeter dimensions: 2 x 1"
Tweeter dimensions (mm): 25.4mm
Tweeter magnet: Neodymium
Tweeter brand: Custom-made
Tweeter voice coil: 1"
Tweeter voice coil (mm): 25.4mm
Loudspeaker inputs: 1
Speaker input connections: Custom-made multipin
Cabinet construction mid/high: Closed
Mid/Hi system cabinet material: aluminium
Mid/Hi system cabinet surface: HD coating
Mid/Hi system width: 96mm
Mid/Hi system height: 780 / 795mm
Mid/Hi system depth: 104mm

Amplifier Module (integrated in Subwoofer)
Amplifier: Class D
Amplifier Output System (RMS): 1000W
Amplifier Output System (Peak): 2000W
Protection circuits: thermal overload, DC protection, short circuit, Multiband limiter
Cooling: Convection
Operating Temperature: 0 - 40°C
Hunidity range: 10% to 80%, (non-condensing)°C
Controls: sub level, MP3/Bluetooth Level, Mono/stereo switch, Line Level, Main Level, Hi-Z Level, Power, Bluetooth switch
Indicators: signal, mono, stereo, protect (protection circuit engaged), on, Setup, limit
Power connector: IEC power cable (included)
Operating voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching)
Power consumption Off / On / Max.: 0/11/600W
Line inputs: 2 x stereo
Line input connectors: RCA, XLR/6.3 mm jack
Line outputs: 2 (1x System Out, 1x Sub Out)
Line output connectors: XLR
Mic inputs: 1, XLR/6.3 mm jack
MP3 inputs: 1
MP3 input connectors: 3.5 mm jack
Hi-Z inputs: 1
Hi-Z input connectors: 6.3 mm Jack
Loudspeaker outputs: 1
Speaker output connections: Custom-made multipin

DSP characteristics
Bit depth AD/DA converter: 24bit
Internal sampling frequency: 48kHz
Signal/noise ratio: 100dB
show full description
