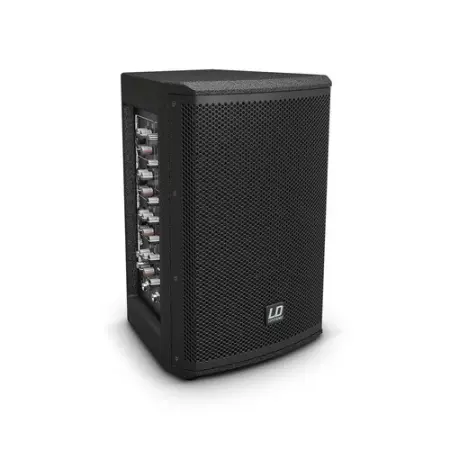

The ideal choice for small-scale PA and personal monitoring applications, the active LD MIX 6 A G3 integrates a 4-channel mixer and Class D amplification with 2 x 280 watts peak power. The compact bass reflex loudspeaker features a 6.5" custom woofer and 1" HF driver complement, 80 Hz to 20 kHz frequency response and 80° x 70° dispersion delivering crystal clear sound with punch and detail.

Accomodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players, the built-in mixer provides 3 microphone channels and a stereo line channel with 2-band EQ each plus switchable hi-Z input and 15 V phantom power. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering, an adjustable monitor and RCA recording outputs. In addition, the LD MIX 62 A G3 sports a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit and thermal protection. A 4 ohm slave output allows powering the passive LD MIX 6 G3 for a dual speaker setup.

The rigid MDF enclosure features two 16 mm pole mounts for horizontal or vertical orientation. On its own or in tandem with the passive unit, the LD MIX 62 A G3 provides amazing performance and versatility in a lightweight, easily portable package.

Specifications:
General
Type: active
Woofer dimensions: 6.5"
Woofer size: 165.1mm
Woofer brand: Custom-made
Tweeter dimensions: 1"
Tweeter dimensions (mm): 25.4mm
Tweeter brand: Custom-made
Dispersion (H x V): 80 x 70°
Frequency response: 80 - 20.000Hz
Amplifier: Class D
Amplifier output (RMS): 2x70W
Amplifier output (peak): 2x280W
Max. SPL: 122dB
Protection circuits: overload, thermal overload, short circuit, over-current, ICL (Intelligent Clip Limiting)

Mixer
Channels: 4
Mic inputs: 3, XLR, 6.3 mm jack
Controls for Mic Inputs: EQ Hi, level, Hi-Z Switch (channel 1 only), EQ Low, DFX Send
Input Impedance Mic Inputs: 14kOhm
Input Sensitivity Mic Input: 70mV
Line inputs: 1
Line input connectors: 2 x RCA
Controls Line Inputs: level, EQ Hi, DFX Send, EQ Low
Input Impedance Line Inputs: 4.4kOhm
Input Sensitivity Line Inputs: -5dBu
Hi-Z inputs: 1
Hi-Z input connectors: 6.3 mm jack
Input Impedance Hi-Z Input Connectors: 100kOhm
Monitor Line Outputs: 1
Connector Type Monitor Line Output: 2 x RCA
Controls for Monitor Line Output: Monitor Volume
Max Output Level Line Output Monitor: 28dBu
Record Outputs: 1
Connector Type Record Output: 2 x RCA
Increased power main output (at 4 ohm): 70W

DSP Digital Effects Unit
DSP Number of Programs: 16
DSP Controls: DFX Return, Mute switch
DSP Display Elements: Peak LED

Main Section
Main section controls: EQ Mid, EQ Low, Master Volume, voltage selector switch, Phantom Power, EQ Hi
Main section indicators: power LED, 4-segment Level Meter
Phantom power: 15 V
Mains connector: IEC socket
Operating voltage: transformer, 110 - 120 V ~ 50/60 Hz or 220 - 240 V ~ 50/60 Hz, switchable
Power consumption: 180W

Cabinet
Cabinet construction: vented
Cabinet material: MDF
Cabinet surface: texture paint
Cabinet color: Black
Dimensions (W x H x D): 8.42" x 12.72" x 8.7" (214 mm x 323mm x 221 mm)
Weight: 15.43 lbs (7kg)
Other features: rubber feet, 2 x 16 mm pole mount socket

LD Systems LDS-MIX6AG3 (LD Systems MIX6A G3)
