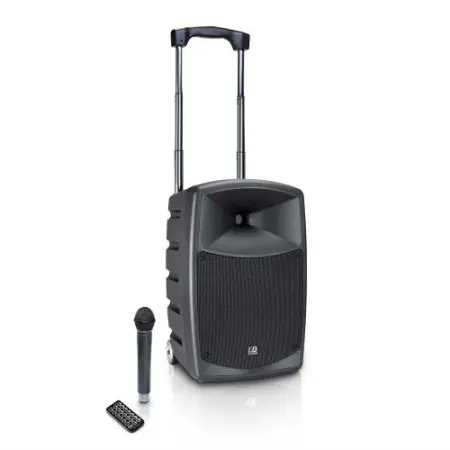

ROADBUDDY 10
BATTERY POWERED BLUETOOTH SPEAKER WITH MIXER AND WIRELESS MICROPHONE

The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10" custom woofer and a 1" compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.

The Roadbuddy relies fully on wireless transmission: it has an UHF radio receiver which operates in the license-free 863 - 865 MHz range, and can be expanded with an additional system. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. A handheld microphone with 10 mW output power(LDRBUD10) or as an alternative a headset microphone with belt pack (LDRBUD10HS) and an IR-remote control for the player are included.

For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.

The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount

Specifications:

Product number: LDRBUD10
Product type: Portable PA Speaker
Type: active
Low/mid driver dimensions: 10"
Low/mid driver dimensions (mm): 254mm
Woofer magnet: Ferrite
Woofer brand: Custom-made
HF driver dimensions: 1"
HF driver dimensions (mm): 25.4mm
HF driver magnet: Ferrite
HF driver brand: Custom-made
Amplifier: Class D
RMS: 120W
Peak power: 480W
Frequency response: 55 - 18000Hz
SPL (1W/1m): 96dB
Max. SPL: 115dB
Protection circuits: over-current, short circuit, overload protection
Controls: Echo, CD / Tape IN Level, high, Mic 1 Level, Mic 2 Level, low, AUX / MP3 switch, Master volume
Indicators: Charge/battery status, Power

Media player
Supported media: USB stick, Bluetooth, SD Card
Supported formats: WAV-CD, WMA file, MP3 file
Media player controls: Repeat, equalizer, Previous Track, Next Track, Stop, Mode (Menu / Bluetooth /SD / USB), Play / Pause
Media player display elements: Lighted multifunctional LC display
Line inputs: 1
Line input connectors: 2 x RCA, 6.3 mm Jack, 2 x XLR, 3.5 mm jack
Mic inputs: 2, 2 x XLR, 6.3 mm Jack

Wireless Unit
Transmission frequency range: 863.000 - 865.000MHz
Modulation Type: FM
Channels: 16
Frequency Response Wireless Unit: 50 - 17000Hz
Controllers Wireless Unit: Value Up, Power / Volume, Mute Level (Squelch), ASC, Value Down
Indicators Wireless Unit: AF (LED), LED Display, RF (LED)
Connections Wireless Unit: nTNC for receiver antenna
RF Transmitter Power Output: 10mW
Handheld Microphone Weight: 0.285kg
Handheld Microphone Material: aluminium
Operating voltage: Switching Power Supply, 220 V - 240 V AC / 50 Hz, 100 V - 120 V / 60 Hz
Rechargeable batteries: 12 V / 5 Ah
Cabinet material: polypropylene
Cabinet construction: vented
Width: 415mm
Height: 525mm
Depth: 328mm
Weight: 16.5kg
Other features: Stand mount 36 mm, transport handle, IR Remote for Media Player, Transport casters, extendable handle

LD Sys Road Buddy 10 (LD Systems LDS-RBUD10B5)
