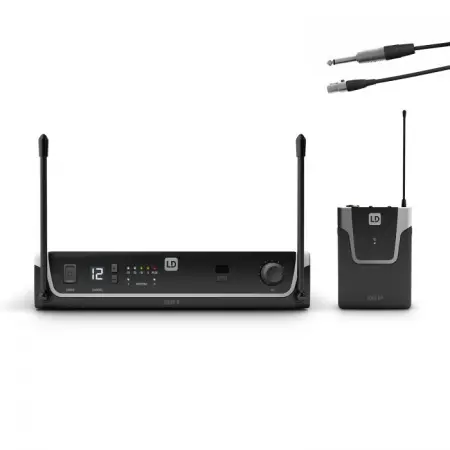

LD Systems U304.7 BPG - Wireless Microphone System with Bodypack and Guitar Cable - 470 - 490 MHz
Developed in Germany, the UHF diversity radio systems of the U300 series offer impressive audio performance. They achieve a range of 100 m under ideal conditions. Six U300 systems can be used simultaneously. A convenient one touch synchronization of transmitter and receiver via infrared is used for fast, problem free radio connection, and the squelch with pilot tone ensures a fail safe function.

The U300 transmitters have an output power of 10 mW and a 10-hour runtime with two AA batteries. The frequency response of the handheld microphone ranges from 55 Hz - 16 KHz, and with a lower cut-off frequency of 25 Hz, the bodypack is also suitable for the transmission of 5-string bass guitars with a low H-string. The input level of the bodypack can be adjusted in three stages to adapt to active and passive guitars and basses, and the practical standby position of the operating switch enables temporary muting. The U300 Receiver is equipped with a bright LCD channel display, an LED chain for displaying the audio signal strength as well as a balanced XLR and unbalanced 6.35 mm jack output. The jack output can be switched to instrument level for direct connection to guitar and bass amplifiers.

The radio systems of the U300 series have a fresh, modern look and are available as vocal sets with receiver and a dynamic hand-held microphone with cardioid polar pattern, bodypack and headset or bodypack and lavalier microphone. The exchange capsules of the U500 series can be used to change the hand microphone characteristics. U300 Instrument Sets are available with a bodypack and clip-on microphone for wind instruments or a double-shielded, low-capacitance cable for guitars and basses.

Features:

UHF diversity radio systems with FM technology
12 selectable channels
100 meters range in ideal conditions
Up to 6 systems can be used simultaneously
ASC infrared synchronization of transmitter and receiver
Squelch with pilot tone
10 h transmitter runtime with two AA batteries
Receiver in a stable metal housing
Optional rack mounting kit as an accessory

Specifications:

LDU3047R - LD Systems U304.7 R Receiver
Product type Wireless Microphone System Accessories
Type Receivers
Modulation Type FM
Channels 12
Weight 0,7 kg
Groups 1
Antenna inputs2 x fixed
Frequency response25 - 16.000 Hz
Noise reduction Squelch
Transmission optimization Pilot tone
Total Harmonic Distortion (THD)< 0.3 %
Signal-to-noise ratio 104 dB
ControlsASC , Channel down , Channel up , Line/Instrument Level , Power , volume
Indicators5 LED VU meters , Antenna A/B , LC display
Audio output, balanced XLR
Operating voltage 12 V DC - 18 V DC (500 mA), external power supply
Audio output, unbalanced6.3 mm jack, switchable unbalanced output level
Width211 mm
Max. output level+10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Height 43 mm
Depth 120 mm
Other features IR frequency synchronization
Accessories (included)2 x AA batteries , Audio cable , Power supply

LDU3047BP - LD Systems U304.7 BP Body Pack Transmitter
Type Bodypack
Weight 0,085 kg
Inputs Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Rated HF output power10 mW
Controls Gain (3-way switch) , Power On/Off
Indicators ASC IR Sync (Green/Amber Blinking LED) , Battery (low battery: red) , Power LED (Power ON: green)
Operating voltage 2 x AA battery
Operating time >10 h
Width 65 mm
Height 91 mm
Depth 25 mm
Other features Belt clip , Pilot tone

LDU500GC - LD Systems U500 GC Instrument cable for U500® series bodypack
Type Guitar Cables
Connector 1 Mini-XLR (3-pin, female)
Connector 26.3 mm jack
Length 0.8 m
Weight 0,045 kg

LD Systems LDS-U3047BPH (LD Systems U3047BPH)
