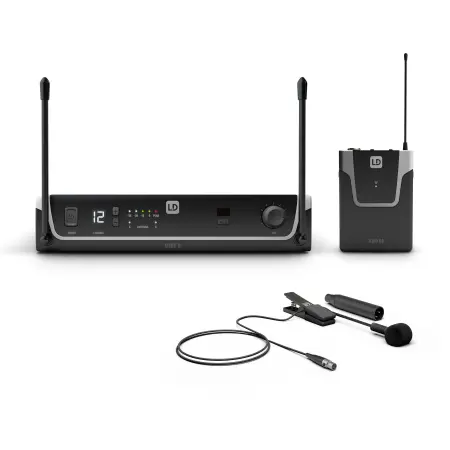

U305.1 BPW
Wireless Microphone System with Bodypack and Brass Instrument Microphone 514-542MHz

Developed in Germany, the UHF diversity wireless systems from the U300® series deliver excellent audio performance. They achieve a range of 100 meters in ideal conditions and are available in five frequency bands: 584–608 MHz, 655–679 MHz, 823–832 MHz + 863–865 MHz, 470–490 MHz or 514–542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch synchronization via infrared ensures fast, problem-free wireless connection between the transmitter and receiver, while a squelch with pilot tone ensures disruption-free operation.

U300® transmitters have a 10 mW output and an operating time of 10 hours on two AA batteries. The handheld microphone’s frequency response ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The bodypack’s input level can be adjusted to both active and passive guitars and basses over three levels. The power switch features a handy standby mode for temporary muting. The U300® receiver is fitted with a bright LCD channel display, an LED chain for displaying audio signal strength and both a balanced XLR and an unbalanced 6.35 mm audio output. The audio output can also be switched to instrument level for directly connecting to guitar and bass amplifiers.

U300®-series wireless systems feature a fresh, modern design and are available as vocal sets with receiver and dynamic handheld microphone with cardioid characteristic, bodypack and headset or bodypack and lavalier microphone. The microphone characteristic can be changed using U500®-series replaceable heads. U300® instrument sets are available with bodypack and clip-on microphone for wind instruments or a double-shielded low-capacitance cable for guitars and basses.


Features:

Item No.: LDU3051BPW
UHF diversity wireless system with FM technology
12 selectable channels
100 meter range under ideal conditions
Up to 6 systems can be used simultaneously
ASC infrared synchronization between transmitter and receiver
Squelch with pilot tone
10-hour transmitter operating time with two AA batteries
Receiver in sturdy metal housing
Optional rack mounting kit as accessory

Specifications:

Product type Wireless Microphone Systems
Type Set
Transmission frequency range 514 - 542 MHz
Weight 0,84 kg

LDU3051R - LD Systems U305.1 BPW Receiver
Product type Wireless Microphone System Accessories
Type Receivers
Modulation Type FM
Frequency response 25 - 16.000 Hz
Channels 12
Groups 1
Antenna inputs 2 x fixed
Noise reduction Squelch
Transmission optimization Pilot tone
Total Harmonic Distortion (THD) < 0.3 %
Controls volume
Signal-to-noise ratio 104 dB
Audio output, balanced XLR
Indicators LC display
Audio output, unbalanced 6.3 mm jack, switchable unbalanced output level
Operating voltage 12 V DC - 18 V DC (500 mA), external power supply
Audio mix output, balanced XLR
Width 211 mm
Audio mix output, unbalanced 6.3 mm jack
Accessories (included) Power supply
Max. output level +10 dBu (Bal), +7 dBV (Unbal, Line), +2,5 dBV (Unbal, Instr) dBu
Weight 0,7 kg
Height 43 mm
Headphones outputs 6.3 mm TRS
Depth 120 mm
Other features IR frequency synchronization

LDU3051BP - LD Systems U305.1 BPW Body Pack transmitter
Type Bodypack
Inputs Mini-XLR (Phantom Powered Low-Z / High-Z Instrument)
Rated HF output power 10 mW
Controls Power On/Off
Indicators Power LED (Power ON: green)
Operating voltage 2 x AA battery
Operating time >10 h
Width 65 mm
Weight 0,085 kg
Height 91 mm
Depth 25 mm
Other features Pilot tone

LDWS1000MW - LD Systems U305.1 BPW Clip Microphone for Brass Instruments
Type Microphones
Frequency response 50 - 18.000 Hz
Directivity Cardioid
Sensitivity (quiescent voltage @ 1kHz) - 45 dB +/- 3 dB
Nominal impedance 250 Ohm(s)
Max. SPL (1% THD @ 1kHz) 133 dB
Phantom power requirements 5 V
Microphone input Mini-XLR (3-pin, female)
Cable length 1.5 m
Accessories (included) Phantom power adapter LDPHA
Weight 0,05 kg
Features 70 mm gooseneck

LD Systems LDS-U3051BPW (LD Systems U3051BPW)
