Mackie 802VLZ4

$199.99 new
CALL or VIP REGISTRATION (free) new
Warranty



Available - Ships in 1-2 days Low Price Guarantee



or $18/mo Free Shipping, No Tax (except NJ)


User Reviews

Please log-in to write your review

read all reviews
Product Description

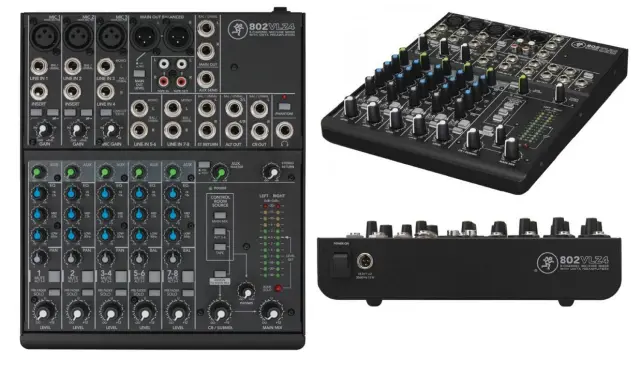

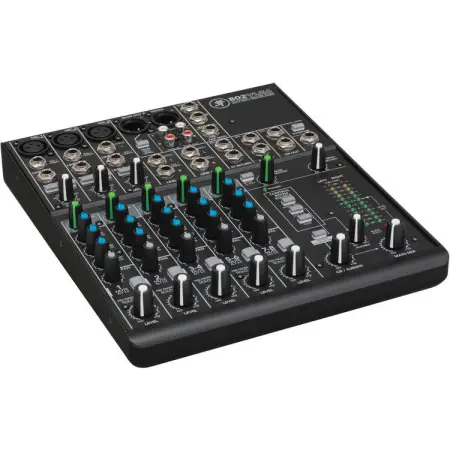

Mackie 802-VLZ4  (Mackie 802VLZ 4)

Now featuring Mackie's flagship Onyx mic preamps, the comprehensive Mackie 802VLZ4 delivers the proven feature set, high-headroom/low-noise design and "Built-Like-A-Tank" construction that created an industry more than 25 years ago.

From every input to every output, 802VLZ4 is optimized to deliver professional-quality results each and every time.

Features:

8-channel mixer featuring Mackie signature high-headroom/low-noise design

3 boutique-quality Onyx mic preamps

Ultra-wide 60dB gain range

128.5 dB dynamic range

+22 dBu line input handling

Extended frequency response

Distortion under 0.0007% (20Hz – 50kHz)

Improved RF rejection perfect for broadcast applications

Phantom power for condenser mics

8 high-headroom line inputs

Selectable instrument inputs on first two channels – no DI box needed

3-band EQ (80Hz, 2.5kHz, 12kHz)

18 dB/oct 100Hz low-cut filter on mic input channels

Aux send, level, pan and PFL solo on each channel

Stereo return for connecting FX processor or other stereo source

ALT 3/4 stereo bus for added routing flexibility

Control room / phones source matrix

High-resolution 12-segment stereo meters

Sealed rotary controls resist dust and grime

“Built-Like-A-Tank” rugged steel chassis with powder-coat finish
High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback


Specifications:

Main Mix Noise
(20 Hz-20 kHz bandwidth, channels 1-3 gain @ unity, channel EQs flat, all channels assigned to main mix, channel 1 panned left, 2 panned right, 3-8 centered.)
Main mix knob down, channel level knobs down: XLR: -95 dBu TRS: -101 dBu
Main mix knob @ unity, channel level knobs down: XLR -90 dBu, TRS -96 dBu
Main mix knob @ unity, channel level knobs @ unity: XLR dBu-84, TRS dBu -90

THD
(1 kHz @ 30 dB gain, 20 Hz-20 kHz bandwidth) Mic pre @ insert: <0.001%

EQ
High Shelving
Mid Peaking
Low Shelving

Attenuation/Crosstalk
(1 kHz relative to 0 dBu, 20 Hz-20 kHz bandwidth, line in, 1/4" main out, gain @ unity)
Main mix knob down: -75 dBu
Channel Alt / Mute switch engaged: -100 dBu
Channel level knob down: -100 dBu

Frequency Response
Mic input to main output (gain @ unity)
+0, -1 dB, 20 Hz to 50 kHz +0, -3 dB, <10 Hz to >100 kHz

Equivalent Input Noise (EIN)
(Mic input to insert send out, max gain)
150 termination: -128.5 dBu, 20 Hz-20 kHz

Common Mode Rejection Ratio (CMRR)
1 kHz: better than -70 dB

Maximum Levels
Mic in: +21 dBu
Tape in: +22 dBu
All other inputs: +22 dBu
Main mix XLR out: +28 dBu
All other outputs: +22 dBu

Impedances
Mic in: 2.55
Channel insert return: 5K
All other inputs: 17K or greater
Tape out: 1.0K
Phones out: 60
All other outputs: 120

Physical Properties
Height: 10.7"
Depth: 1.8"
Width: 8.9"
Weight (with power supply): 5.5lb
Weight (without power supply): 4.5lb
