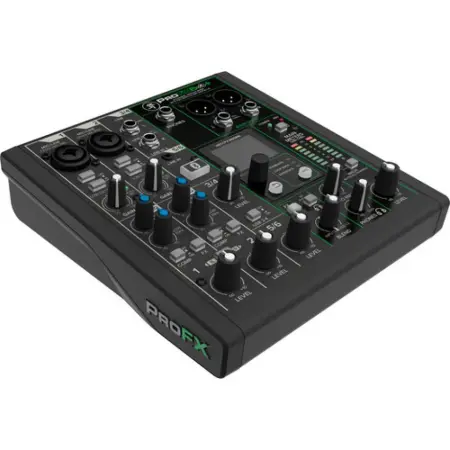

Well suited for live sound, home recording, and content creators, the Mackie ProFX6v3+ is a 6-channel professional analog mixer with powerful enhancements for studio-quality recordings and live streams. Capture your performance with Onyx preamps and channel EQ, add computer audio via loopback, bring in calls via Bluetooth, and enhance your sound with upgraded GigFX+ effects on a color LCD screen.

Channels 1 & 2 features Onyx microphone preamps with 60 dB of headroom, a 2-band EQ, Hi-Z selection for instruments, a low-cut filter, and 1-button compression that's designed to sound great on any signal. Edit FX parameters on a full-color screen. The three recording modes (Standard Stereo, Channel 1&2 Direct, and Loopback) provide a ton of flexibility when live streaming or recording directly to a computer. The ProFX6v3+ includes a USB cable and Waveform OEM recording software.

Renowned Onyx Mic Preamps
2 Onyx mic pres with up to 60 dB of gain and ultra-low noise performance
The Essential Mixing Tools You Need
2-band EQ on channels 1 and 2
One-button compression on channels 1 and 2
Hi-Z switches allow direct connection of instruments
100 Hz low-cut filter and 48V phantom power on all mic channels
Stereo 1/8" input on channel 5/6
Series Features
High-Resolution GigFX+ Effects Engine
Enhance your sound with 12 upgraded FX options
Edit and save presets on the fly with the color LCD screen
24-Bit / 192 kHz 2×4 USB Audio Interface

USB-C connection
Switch Between Recording Modes

Standard: Main mix including GigFX+ effects and tone-shaping EQ
Loopback: Computer audio added to main mix, great for live streaming
Interface: Untouched audio from channels 1 and 2 without effects or EQ
Bidirectional Bluetooth

Integrate callers from an external device like a smartphone or tablet
Stream music from your device, directly into the mixer
Effortless latency-free monitoring

Easily blend between monitoring your computer output and a direct feed from the mixer
Record Like a Pro

Waveform OEM software included
Signature Rugged Design

Legendary Built-Like-A-Tank design
Solid steel chassis
Tough ABS side protection

FEATURES:

High-Resolution GigFX+ Effects Engine
24-Bit / 192 kHz 2x4 USB Audio Interface
3-Ways to Record
Bidirectional Bluetooth with Mix-Minus
Two Onyx Preamps with 60 dB of Gain
2-Band EQ on Channels 1 and 2
1-Button Compression on Channels 1 and 2
Hi-Z Switch for Instruments
100 Hz Low-Cut Filter, 48V on All Mics
Includes Waveform OEM Recording Software

SPECIFICATIONS:

Number of Analog Input Channels
6
Number of Mic Preamps
2
Analog Output Channels
2x Stereo Master Output
1x Stereo Headphone Output
Mix Routing
Stereo Main Mix
Built-In Effects
12x Preset (Factory)
USB I/O
1x USB-B 2.0 (2-Track Record, Audio Streaming, Host Connection)
Wireless
Bluetooth
*Built-In
Rack Mountable
No
Mixer
Number of Analog Input Channels
6
Number of Mic Preamps
2
Analog Output Channels
2x Stereo Master Output
1x Stereo Headphone Output
Mix Routing
Stereo Main Mix
Faders & Level Adjustment
No
Meters
Main Meter:
2x 8-Segment LED
Meter Range
Main Meter:
-24 dB to +14 dB Plus Peak/Clip
Signal Processing
Gain/Trim Range
-20 dB to +40 dB
EQ Parameters
Low: ±15 dB at 80 Hz
High: ±15 dB at 12 kHz
Filters
High-Pass: 100 Hz, 18 dB/Octave
Built-In Effects
12x Preset (Factory)
Digital Audio
Sample Rates
Up to 192 kHz
Bit Depth
24-Bit
DSP
No
Performance
Frequency Response
Mic Input to Output:
20 Hz to 30 kHz +0/-1 dB (Unity Gain)
Max Input Level
+22 dB
Output Level
Main Output:
+28 dBu at Max Gain
All Other Output:
+22 dBu at Max Gain
I/O Impedance
Mic Input:
3.8 Kilohms
Insert Return:
10 Kilohms
Line Input:
≥ 20 Kilohms
Headphone Output:
25 Ohms
Main Output:
120 Ohms (Unbalanced)
240 Ohms (Balanced)
Crosstalk
Adjacent Inputs:
-90 dB at 1 kHz
Input to Output:
-80 dB at 1 kHz
Fader Off:
-75 dB at 1 kHz
Muted:
-90 dB at 1 kHz
CMRR
70 dB at Max Gain (1 kHz, Mic In to Main Out)
EIN
-126 dBu at Max Gain (150-Ohm Input)
Noise Floor
All Outputs:
-95 dBu (Master Level at -∞, Channel Levels at -∞)
-80 dBu (Master Level at Unity, One Channel Level at Unity)
THD+N
Mic Input to Main Output:
< 0.03% (+4 dBu)
Connectivity
Analog Inputs
2x Combo XLR-1/4" 3-Pin Balanced/Unbalanced Mic/Line/Hi-Z Input
2x 1/4" TRS Balanced/Unbalanced Line Input (1 Stereo Pair)
1x 1/8" / 3.5 mm TRS Unbalanced Stereo Line Input
Analog Outputs
2x XLR 3-Pin Balanced Stereo Main Output (1 Stereo Pair)
2x 1/4" TRS Balanced/Unbalanced Main Output (1 Stereo Pair)
1x 1/4" TRS Unbalanced Stereo Headphone Output
Phantom Power
+48 V, Selectable On/Off (Applied to All Inputs)
USB I/O
1x USB-B 2.0 (2-Track Record, Audio Streaming, Host Connection)
USB I/O Capacity
2x Input / 4x Output
Wireless
Bluetooth
*Built-In
Mobile App Compatible
No
Power
AC Input Power
Universal:
100 to 240 VAC, 50 / 60 Hz
Power Supply Output
12 VDC at 2 A
Physical
Rack Mountable
No
Dimensions
7.5 x 8.4 x 2.9" / 190 x 213 x 74 mm
Weight
2.6 lb / 1.2 kg
Packaging Info
Package Weight
3.745 lb
Box Dimensions (LxWxH)
12.1 x 9.5 x 4.1"

MACKIE ProFX6v3+ (Mackie ProFX6v3+ Mixer)
