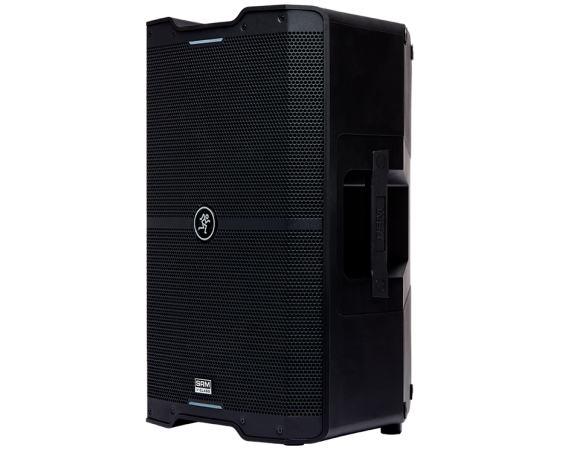

More power. Studio level fidelity. Incredibly reliable. Smart features. SRM210 | V-Class combines our most reliable amplifier platform, premium transducers and a built-in mixer with the latest DSP technology to create the ultimate all-in-one premium loudspeaker for bands, DJs and venues. It may be ultra-portable, but there is a beast inside waiting to be unleashed.

ADVANCED IMPULSE™ DSP MODULE
What does it do for me?

Mackie’s filtering technology is not your typical speaker processing. The goal of our Advanced Impulse™ DSP is to remove all the anomalies that loudspeakers and horns contribute to a signal, from “honkiness” or “squelch” to "mushy" low end, effectively making the drivers "invisible" and output nothing but perfect, clean sound. By more intelligently (and more thoroughly) employing the benefits of FIR filtering, Advanced Impulse DSP eliminates undesired acoustic anomalies across the entire dispersion zone (horizontal and vertical), as well as frequency range and time domain.Mackie Advanced Impulse DSP

HOW IT'S DONE
The main way this is accomplished is by measuring the negative frequency response and time domain impacts that each transducer and horn in the system introduces – on axis as well as off – and reversing/correcting for those anomalies before the signal hits the speaker. The result is the output from the speaker is fully corrected for flat, clear, time-aligned, and smooth sound throughout the entire time, space, and response domains. Want to learn more? Check out the full rundown from a Mackie Acoustic Engineer!

SRM V-Class, SRT - SYM-X™ HORN
SYM-X™ HORN
The custom horn within each loudspeaker was designed with the goal to bring out the very best from the HF transducer while maintaining the flattest response possible at the crossover point. Surprise surprise... we nailed it. The special design of this horn allows the compression driver to operate at near maximum efficiency. This means it gets louder and sounds better with less effort. The transition between the LF and HF is a symmetrical, flat response which is what helps make the incredibly smooth midrange possible.

SRM V-Class, SRT - Transparent system protection
TRANSPARENT SYSTEM PROTECTION
Other loudspeakers feature some sort of protection and limiting to help them squeeze a dB or two out of the speaker. This is almost always at the expense of sound quality and is commonly experienced as diminished bass response and the "pumping" sound of the internal limiter having a bad day.

When operating at very high levels (ears beware), the processor-controlled system monitoring analyzes the audio signal and identifies the problem areas, then dynamically applies multi-band compression to those specific frequencies rather than lowering the overall output. This keeps your levels where you want them and maintains the sound quality you expect.

SRM - Wireless - Control & streaming
WIRELESS CONTROL & STREAMING
With the SRM Connect™ app available for iOS and Android® devices, you get complete control over everything and then some for up to 2 speakers simultaneously. Quickly access levels, EQ, meters, and configuration. Plus, you can save memory presets to streamline setup at your next gig.

When you link to another SRM | V-Class speaker, you get control over the entire system in the app, all in one view. No additional pairing or swapping back and forth on your device is required.

For an incredibly simple music playback system, you can stream music directly from any Bluetooth enabled device.

FEATURES:

Best performance, sound quality, and reliability in its class
Industry-leading 2000W Class-D amplifier with transparent system limiting and protection
Superior sound with Advanced Impulse™ DSP tuning and Intelligent Bass Management™
High-performance transducers and custom SymX™ Horn for unmatched clarity and accuracy
SRM Mix Control™ built-in 4-channel digital mixer with Bluetooth®
Complete wireless control via the SRM Connect™ app
Wirelessly link 2 SRM | V-Class speakers together for music streaming applications plus control
Dual-angle pole mount plus angled design for use as a floor monitor

SPECIFICATIONS:

Configuration Active 2-Way
Enclosure Type Bass-Reflex Loudspeaker/Floor Monitor
Total Power Capacity 2000 W Peak
Amplifier Class Class-D
Drivers
MF Driver None
MF Voice Coil None
LF Driver 1 x 10" / 254 mm Woofer
Performance
Frequency Response 45 Hz to 20 kHz
Maximum SPL 131 dB SPL (Peak)
Coverage Angle 60° H x 40° V
Protections Crossover Overload, Infrasonic, Output Limiter, Thermal, Transducer Overdrive, Ultrasonic

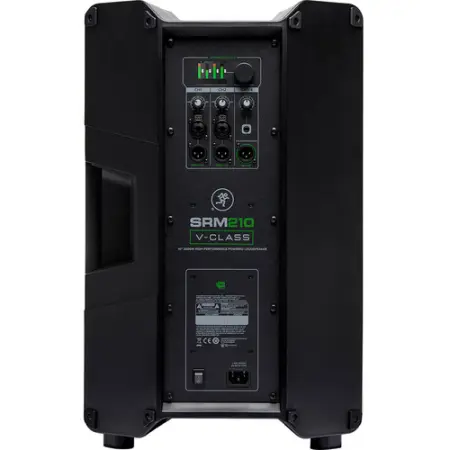

Connectivity
Audio I/O 1 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Mic/Line Input
1 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Mic/Line/Hi-Z Input
1 x 1/8" / 3.5 mm TRS Female Unbalanced Aux Input
2 x XLR 3-Pin Male Balanced Line Output
1 x XLR 3-Pin Male Balanced Mix Output
Wireless Connectivity Bluetooth
Wireless Range 328.1' / 100 m
Signal Processing
Filters None
Alignment Delay 89.3 ms
Digital Signal Processing Delay, Reverb, User Settings, Venue Settings, Voicing Modes
Power
AC Input Power 110 to 240 VAC, 50 / 60 Hz
AC Power I/O 1 x IEC Input
Physical
Mounting 1 x 1.38" / 35 mm Pole Socket (Dual Angle, Bottom)
Handles 1 x Each Side
1 x Top
Environmental Protection None
Dimensions 23 x 12.9 x 15.1" / 584.2 x 327.7 x 383.5 mm
Weight 30.9 lb / 14 kg
Packaging Info
Package Weight 36.275 lb
Box Dimensions (LxWxH) 26.4 x 18.1 x 16.4"

Mackie USA SRM210 (Mackie SRM-210)
