Martin Atomic 3000 LED Strobe

$2,345.99 new
CALL or VIP REGISTRATION (free) new
Warranty



Backordered - Call for ETA Low Price Guarantee



or $213/mo Free Shipping, No Tax (except NJ)


User Reviews

Please log-in to write your review

read all reviews
Product Description

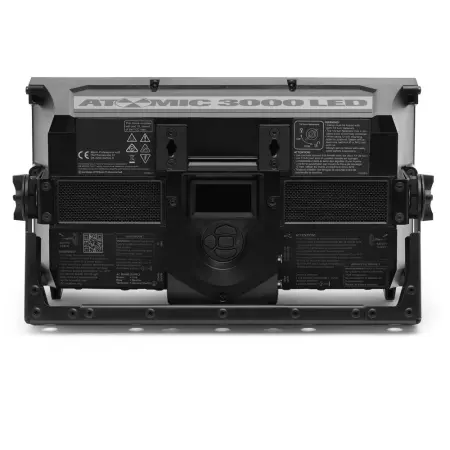

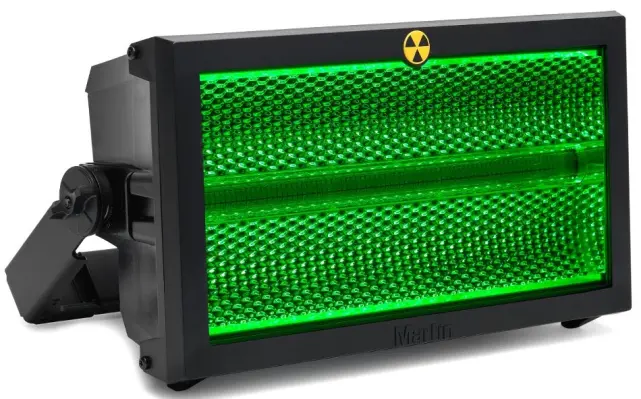

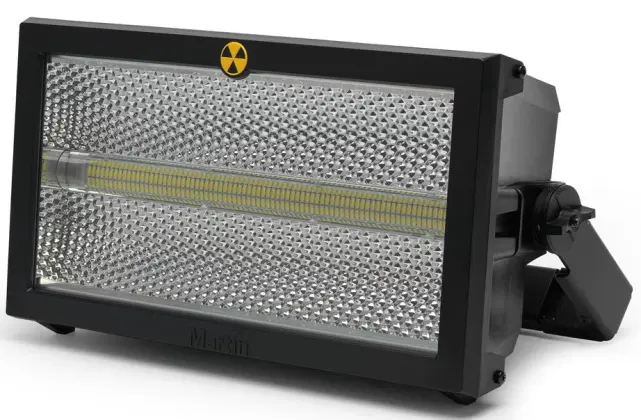

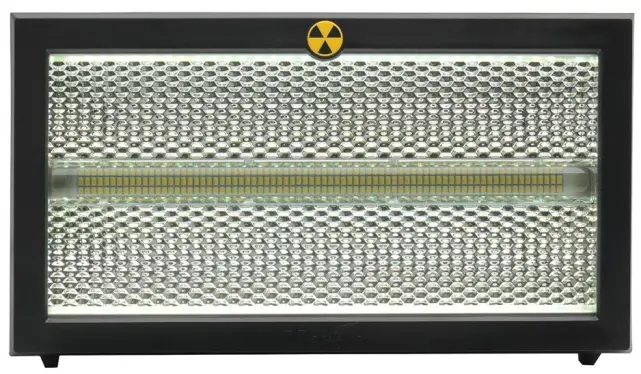

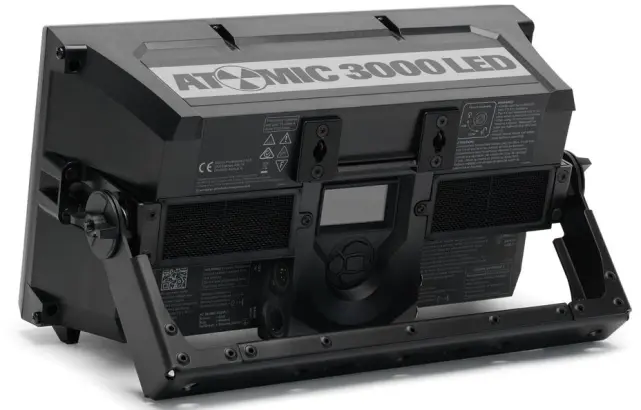

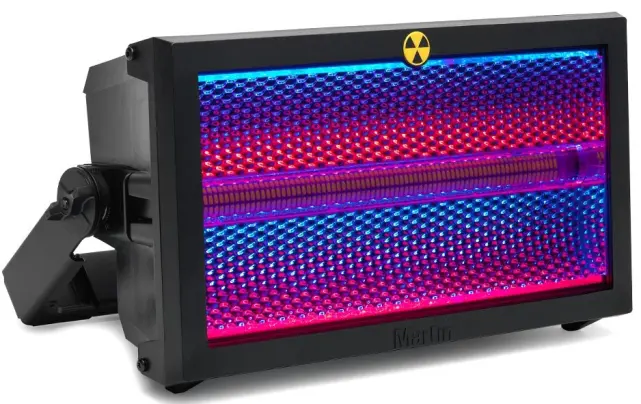

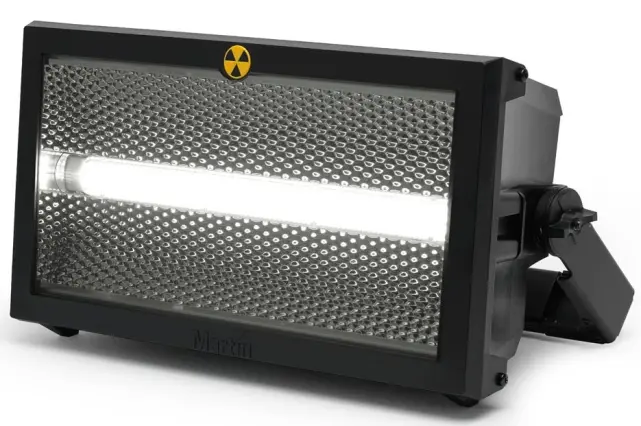

Martin Professional Atomic 3000 Strobe  (Martin Atomic LED 3000 Strobe)

The Atomic™ 3000 LED is the perfect blend of a traditional strobe and cutting-edge LED technology. Capitalizing on the original Atomic™ 3000 DMX’s 15 years of success, this new version features identical functionality and behaviour – with the added benefits of LED technology. It offers the same extreme brightness as its iconic predecessor, but with substantially lower peak power consumption.

The Atomic 3000 LED is not only a strobe, but also a creative tool that incorporates backlight illumination with RGB-controlled LEDs pointing into the reflector. It delivers stunning eye candy looks similar to the MAC Aura™ and the MAC Quantum™ Wash.

Internal FX macros and simplified re-use of the original Atomic Colors scroller complete the full-feature package and empower the Atomic 3000 LED to become the ultimate creative lighting tool.

Brightest LED-based strobe on the market
Unique RGB-controlled Aura backlight for stunning eye candy looks
Same look and feel as the original Atomic 3000 DMX

Features:

Classic reflector look
Iconic letterbox shape and industrial design
Aura backlight (RGB) into reflector
Dimmable house-light function at reduced brightness and power consumption
LED and Xenon mode available via menu and DMX control channel
Use of original Atomic color scroller made easy via internal power and data supply
4 button menu and LCD display for quick and easy setting adjustment
Clever rigging and bracket solution
4 Channel DMX mode as Atomic 3000 (easy replacement)
14 Channel Extended DMX mode incl. Aura control and internal FX macros
RDM compatible, USB port for software updates

Specifications:

Physical
Length: 245 mm (9.7 in.)
Width: 425 mm (16.8 in.)
Height: 240 mm (9.5 in.)
Weight: 7.5 kg (16.6 lbs.)
All data including mounting bracket

Dynamic Effects
Strobe: 0.289 - 16.667 Hz, variable flash rate, intensity and duration
Special effects: Blinder, ramp up/down, random flash, lightning. spikes, pre-programmed FX
Aura (secondary LED array illumination) color mixing: RGB

Control and Programming
Control systems: DMX, RDM
DMX channels: 3/4/14
Setting and addressing: Control panel with backlit monochrome graphic display
DMX compliance: USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM
Transceiver: RS-485
Firmware update: USB memory key or via DMX with Martin™ M-DMX interface

Optics and Photometric Data
Light source: White LEDs, color temperature 5600 K (Beam), RGB
LEDs (Aura)
LED refresh rate: TBA
Minimum LED lifetime: TBA
Total luminous output: TBA
Video compatibility: Designed for use with HD/high-speed video cameras
*Manufacturer´s figure obtained under manufacturer's test conditions

Construction
Color: Black Housing: Steel. high-impact thermoplastic, flame-retardant to UL 94
5VA
Protection rating: IP 20

Installation
Mounting points: Two pairs of quarter-turn fastener points, M12 holes in adjustable bracket
Orientation: Any Minimum distance to combustible materials: 500 mm (20 in.) from fixture
Minimum distance to illuminated surfaces: 1 m (3 ft. 4 in.) from fixture
Location: Indoor use only, must be fastened to structure or surface

Connections
AC power: Neutrik PowerCON TRUE1 male socket
DMX data in/out: 5-pin locking XLR
Atomic Colors color gel scroller: 4-pin locking XLR
Software upload: USB 2.0

Electrical
AC power: 100-240 V~ nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Rated current consumption: 3.5 - 6.9 A
Peak current consumption: 13 - 26 A
Typical half-cycle RMS inrush current: 17.7 A

Thermal
Cooling: Forced air (temperature-regulated, low noise, user-definable fan settings) Maximum ambient temperature (Ta max.): 40° C (104° F)

Approvals
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55103-1, EN 55103-2, EN 55015, EN 61547
US safety (pending): UL 1573
Canadian safety (pending): CSA E598-2-17 (CSA E60598-1)
Australia/NZ: C-TICK N4241
