Martin M2PC
- DISCONTINUED

product discontinued

This product has been discontinued by the manufacturer. Please contact us to find a replacement.

*Discontinued

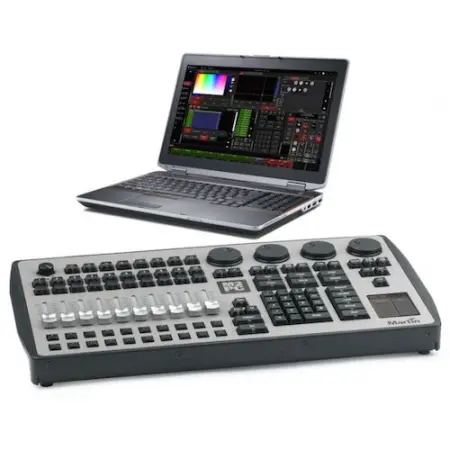

M2PC is the complementary control surface to the M-PC controller software (laptop not included). Featuring the same layout and portable size as the M2GO HD, the M2PC delivers a professional level of features directly from any PC. Following the philosophy and simplicity of our current M-series controller platform, the M2PC is one of the most powerful and affordable PC-based lighting controllers on the market.

M-Series Licensing
4 DMX 5pin XLR ports
64 Universes (Artnet, sACN)

Features:

USB 2.0 Connection to Windows PC
3.5” Touchscreen for Fast and Direct Parameter Access
4 Digital Encoders for Parameters
8 Customizable Function Keys
4 DMX Ports Standard
Standard License for 64 Universes - up to 128 Universes with
Optional Expansion License Pack
Controls up to 65536 Parameters
Customizable Graphical User Interface with Context Sensitive
Toolbars and Integrated Help Menu
Powerful Effects Engine
1000 Cuelists with Fader Control
1000 Cuelists with Playback Control Buttons
Parallel Execution of Multiple Cuelists
Submaster, Inhibitives and Override Functionality
Parameter and Time-Fanning Functionality
Auto Update for Presets and Cues
On-the-Fly Global Timing Adjustments
M-Series Manager Software for Programming and Triggering via
Time and Calendar Schedules
Multiple Wing Attachments (M-Series Modules, M-Play, M-Touch)

Specifications:

PHYSICAL
Length: 300 mm (11.9 in.)
Width: 540 mm (21.3 in.)
Height: 99 mm (3.9 in.)
Weight: 4.6 kg (10.2 lbs.)

CONTROL AND PROGRAMMING
Protocol: DMX512A (RDM), Art-Net, sACN
64 x DMX universes, expandable to 128
32768 x channels, expandable to 65536
No limit to number of DMX channels per fixture
Extensive fixture library for all known manufacturers
2D Plan visualizer for fixture selection
65000 x presets for each group of functions (P/T, color, gobo, etc.)
Effect generator for automated programming of complex effects
Customizable highlight and lowlight function to identify individual fixtures
Relative or absolute programming
Fan function for all channels (including timing parameters)
On-the-fly global timing changes
Virtual cuelists
Macros
Wait, follow and link cues
HTP, LTP, chase, timecode, submaster and inhibitive playback functionality
Individual parameter timings
Intuitive patch feature Fixture type cloning
All channels with 16-bit resolution

CONTROL/USER INTERFACE
Main playback interface: 10 x 60 mm playback faders, each with 4 x function- assignable buttons
8 x customizable multi-function keys
Playback Select button
Master Go section with Go, Pause, Snap and Release
4 x digital rotary encoders with push function and status LED for fixture parameter control
3.5” touchscreen for parameter groups, effect parameters, fanning and global timings
Grand master rotary fader and button
Blind/preview button
Customizable highlight/lowlight function
Customizable parameter defaults
Next/last fixtures/groups
Large command keys

PLAYBACK
Assign a cue, cuelist or effect to any playback fader
500 x playback banks, each containing 10 playbacks
100 x pages of 100 x playbacks activated by touchscreen button
No limit to cues per cuelist
Full 16-bit fading for high-resolution fixtures
Individual fade in/fade out times for all playbacks
Manual override available at all times
Live 0-1000% override of global cue timings
Live programmer timing (“Sneak”)
Cuelists can be executed in tracking or non-tracking mode

MINIMUM SYSTEM REQUIREMENTS
Windows 7 or higher
Dual-core processor, 2.0 GHz (Intel i5 or better recommended)
4 GB RAM
2 GB available disk space (SSD recommended)
Widescreen monitor, minimum 1280x800 (capacitive touchscreen recommended)
USB 2.0 port for M2PC Console
10/100 Ethernet port for Art-Net or sACN output
100/1000 Ethernet port for MAXNET and Remote operation
Full administrator rights on PC

CONNECTIONS
4 x DMX universe outputs: 5-pin locking XLR
Ready to receive internal MIDI module and SMPTE timecode module
Internal MIDI in/out/thru (MIDI show control, MIDI notes, MIDI timecode): Optional
Internal SMPTE Timecode In/Out: 3-pin XLR (optional)
12 VDC power supply input: 4-pin XLR
Desk lamp: XLR

ELECTRICAL
AC mains power to 12 VDC external PSU (included): 100-240 V nominal, 50/60 Hz
Maximum current: 1.4 A
12 VDC output: 5 A, 60 W max.

INCLUDED ITEMS
1.5 m power cable, EU (Schuko), 3-pin IEC
1.5 m power cable, US, 3-pin IEC
USB Cable
External PSU (12V 5A)
LED desk lamp, angular XLR connector, 13"
Console lid
One-Key™ with ShowDesigner 6 Lite™ one-year license and M-PC 64 universes license

Elation M2PC (Martin M2PC01)
