Martin Rush MH1

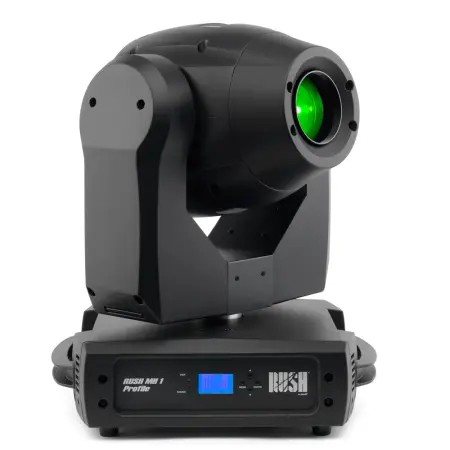

Martin RUSH MH 1 Profile (Martin Rush MH1)

This super bright LED profile moving head with efficient optics punches out a variety of effects and colors from two gobo wheels and two color wheels. For added versatility and effect, it also houses an electronic dimmer and strobe, iris and 3-facet prism.

LED profile moving head
Super bright - efficient optics
Rotating gobo wheel
Fixed gobo wheel
2 x color wheels
Electronic dimming and strobe
Iris and 3-facet prism
3 & 5 pin XLR

Martin RUSH MH 1 Profile Specifications


Physical
Length: 418 mm (16.5 in.)
Width: 328 mm (12.9 in.)
Height: 588 mm (23.1 in.)
Weight: 18 kg (39.7 lbs.)

Dynamic Effects
Color wheel 1: 7 colors plus open, rotation with variable direction and speed
Color wheel 2: 7 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speed
Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo indexing, rotation and shake
Static gobo wheel: 8 gobos plus open, wheel rotation and shake
Electronic 'shutter' effect: Strobe effect, pulse effects, instant open and blackout
Prism: Indexing and rotation with variable direction and speed
Iris: Motorized
Focus: Motorized
Electronic dimming: 0 - 100%, four dimming curve options
Pan: 540°
Tilt: 270°
Pan and tilt speed: Adjustable via onboard control panel and DMX

Control and Programming
Control options: DMX, stand-alone
DMX channels: 17
Stand-alone trigger options: Music trig, auto trig
Stand-alone sequences: 4 pre-programmed shows
Stand-alone memory: 20 scenes
Music trig sensitivity: Adjustable
Setting and addressing: Control panel with backlit LCD display
DMX compliance: USITT DMX512/1990

Optics
Light source: 180 W LED engine
Minimum LED lifetime: 50 000 hours (to >70% luminous output)*
*Figure obtained under manufacturer´s test conditions

Construction
Color: Black
Housing: High-impact flame-retardant thermoplastic
Protection rating: IP20

Installation
Mounting points: Two quarter-turn brackets for rigging clamps
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any

Connections
AC power in/thru: Neutrik PowerCon
DMX data in/out: 3-pin and 5-pin locking XLR

Electrical
AC power: 100-240 V nominal, 50/60 Hz
Typical total power consumption: 320 W

Typical Power and Current
100 V, 60 Hz: 3.2 A, 320 W
230 V, 50 Hz: 1.5 A, 306 W
Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.

Thermal
Cooling: Forced air
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Total heat dissipation (calculated, +/- 10%, at full intensity, full white): 1010 BTU/hr.

Approvals

EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547
US safety (pending): UL 1573
US EMC: FCC Part 15 Class A
Canadian safety (pending): CSA C22.2 No. 166
Canadian EMC: ICES-003 Class A
Australia/NZ: C-TICK N4241

Included Items
Power cable, 1.5 m (4.9 ft.), without mains plug

Related Items
RUSH Software Uploader 1™ P/N 91611399

Ordering Information
RUSH MH 1 Profile in cardboard box P/N 90280000

Photometric Data

Standard
Efficacy: 13.2 lumens per watt
Cut-off angle: 13.5°
Total output: 3600 lm
