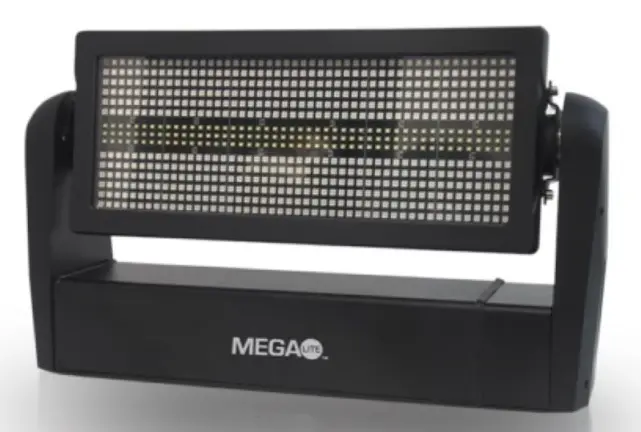

MEGA-LITE presents the Tiltbot Trio, a new IP rated, versatile LED fixture that can be used as a blinder, strobe and wash. Equipped with 572 1W RGB LEDs and 144 white 8W LEDs it has a 190º tilt rotation. This highly creative design can create a variety of powerful color combinations and with a 90 CRI on white it also produces a bright white output. The unit’s hybrid design and features makes it ideal for a variety of applications.

Specifications:
ITEM ID:1310-TILTBOT TRIO
DMX CONNECTORS:PANEL MOUNTED IP67 5-PIN XLR CONNECTORS IN/OUT
POWER CONNECTION:PANEL MOUNTED SEETRONIC IP RATED POWER IN/OUT CONNECTION (NEMA 5-15 TO SEETRONIC POWER FEMALE CABLE INCLUDED)
THERMAL: MAXIMUM AMBIENT TEMPERATURE 104º F MAXIMUM SURFACE TEMPERATURE 140º F
DISPLAY:DIGITAL
FASTENING SYSTEM:2 QUICK RELEASE CLAMP MOUNTS
IP RATING: IP64
LED TYPE: 572 RGB 1W & 144 WHITE 8W
CRI: 90 ON WHITE
LED LIFETIME:50,000 TO 80,000 HOURS (AVERAGE)
POWER CONSUMPTION:UNIVERSAL 100 - 240V 50/60 HZ
BALLAST:ELECTRONIC
PROTOCOL:DMX 512
RDM:YES
DMX CHANNELS:6 MODE OF OPERATION
MODE 3 CH:TILT, FINE TILT, STROBE
MODE 12 CH:TILT, FINE TILT, DIMMER, RGB INTENSITY, RED, GREEN, BLUE, DURATION RGB, STROBE RGB, WHITE, DURATION WHITE, STROBE WHITE
MODE 14 CH:TILT, FINE TILT, DIMMER, RED, GREEN, BLUE, MACRO, MACRO SPEED, RGB STROBE, WHITE, MACRO, MACRO SPEED, WHITE STROBE, WHITE DIM
MODE 23 CH:TILT, FINE TILT, WHITE, W DURATION, W STROBE, MACRO, CONTROL, RGB INTENSITY, RGB DURATION, RGB STROBE, MACRO, RED, GREEN, BLUE, FX FADE, COLOR FX, COLOR SELECT, WHITE FX, WHITE SELECT, COLOR BACK, INTENSITY, RED BACK, GREEN BACK, BLUE BACK
MODE 50 CH:TILT, FINE TILT, RGB X 12, WHITE X 12
MODE 62 CH:TILT, FINE TILT, DIMMER, RED, GREEN, BLUE, MACRO, MACRO SPEED, WHITE STROBE, WHITE DIM, RGB X 12, WHITE X 12
OPERATING MODE: STAND ALONE 255 STEP DIMMER SETTING VIA DISPLAY / AUTO PREPROGRAM VIA DISPLAY

Mega Lighting 1310TILTBOT TRIO (Mega Lite 1310 TILTBOT TRIO)
