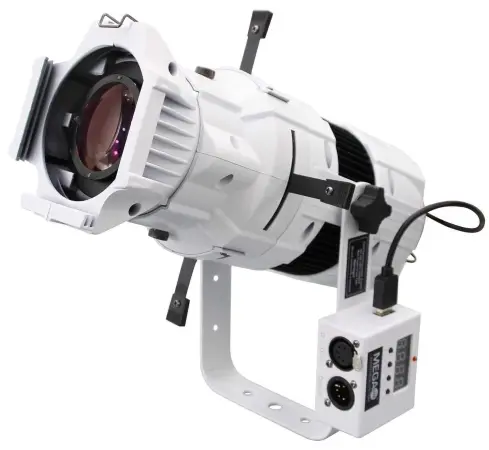

The Drama LED 50W is a compact yet powerful ellipsoidal with a smooth, flat spotlight. This single source 50-watt LED fixture has a robust 2557 lumen output, yet only measures 14.5 inches long and weighs less than 5 pounds. It’s just the right size for a small to medium-sized stage or venue. The Drama LED W50 has 4 lens options including 19-, 26-, 36- and 50-degree to best suit the throw requirements of the application. Four framing blades come equipped with this unit, perfect for changing the shape of the spotlight. The fixture also comes standard with a gobo holder used to project patterns and a gel frame holder used to change the color of the spotlight. The projection can be focused manually with the unit’s lens tube.

Additionally, a manual iris accessory is available to adjust the diameter of the spotlight. The fixture’s housing is available in black or painted white. And, it is manufactured with a single mounting yoke for rigging. The Drama LED W50 is an on/off lighting fixture or a controllable unit. An external controller is available to control the fixture via DMX 512. It mounts on the side of the fixture’s single yoke. This gives the unit 255 steps of dimming and a flash mode.

Additionally, four dimming curves offer varying speeds of fading to black. The controller is made to your specs with either 3-pin or 5-pin DMX connections. The unit houses an auto-switching power supply that operates from 100V to 240V.

SPECIFICATIONS:
ITEM ID:7052
DMX CONNECTORS:3 OR 5-PIN XLR CONNECTORS
POWER CONNECTION:NEMA 5-15 TO SCREW TYPE BASE CONNECTOR CABLE MOUNTED
FASTENING SYSTEM:SINGLE MOUNTING YOKE
THERMAL:MAXIMUM AMBIENT TEMPERATURE 104º F MAXIMUM SURFACE TEMPERATURE 140º F
DISPLAY:DIGITAL
GOBO DIAMETER:45MM
IMAGE DIAMETER:25MM
LED TYPE:1 COB LED
COLOR TEMP:5749K
CRI:84
LED WATTS:50
LED LIFETIME:60 TO 100,000 HOURS
LENS OPTIONS:19º, 26º, 36º & 50º
POWER SUPPLY:UNIVERSAL 100V≈240V 50/60HZ
BALLAST:ELECTRONIC
POWER CONSUMPTION:WATTS: 61W / AMPS: .86 / PF: .59
PROTOCOL:DMX 512 PROTOCOL
DMX MODE A:1 CHANNEL ON/OFF
DMX MODE P:1 CHANNEL DIMMER
DMX MODE F:2 CHANNEL DIMMER, STROBE
OPERATING MODE:STAND ALONE 255 STEP DIMMER SETTING VIA DISPLAY ON DMX CONTROLLED FIXTURES

Mega Lighting DRAMA LED W50 WH-7052 (Mega Lite 7052)
