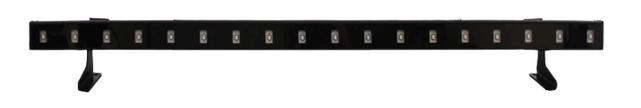

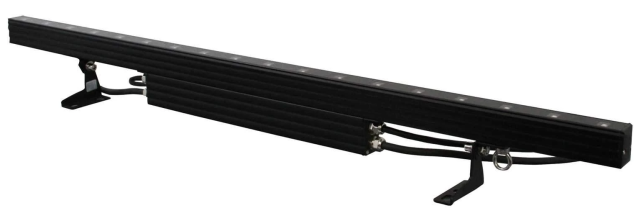

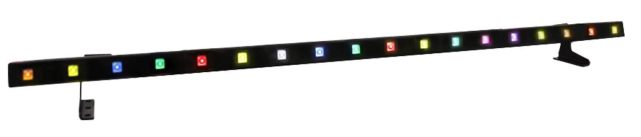

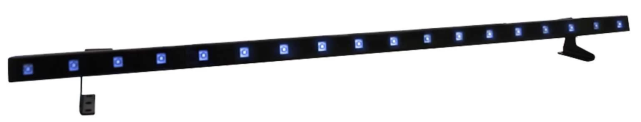

MEGA-LITE presents the iCandy-Q18, a new sleek and modern IP65 linear bar designed for both indoors and outdoors. As the name implies, this fixture is an eye candy light that can be used to create dazzling looks for different sized stages or adding an eye-catching effect to highlight vertical or horizontal lines. Utilizing a matrix, it’s enabled to do pixel control for unique eye-candy effects and recreate videos, making it ideal for pixel-mapping. This unit features 18 RGBW LEDs and with its unique slender form, this eye-candy fixture can create various designs suitable for different environments. Setting up creative designs can be customized with multiple mounting hardware options including a single joint, star joint, sliding mount and a place for center mount clamping. This eye dazzling lighting fixture with a low profile appearance and ease of use is great for both installation and production.

SPECIFICATIONS:
ITEM ID:7230
SIGNAL CONNECTORS:SEETRONIC 3 PIN XLR CONNECTION IP667 CONNECTORS IN/OUT
POWER CONNECTION:NEMA 5-15 TO LINOYA LY176 UL IP68 CONNECTOR IN/OUT (INCLUDED COVER)
THERMAL:MAXIMUM AMBIENT TEMPERATURE 104º F MAXIMUM SURFACE TEMPERATURE 140º F
DISPLAY:DIGITAL
FASTENING SYSTEM:SLIDING MOUNTS
IP RATING:IP65
LENS ANGLE:110º
LED QUANTITY:18 QUAD COLOR LEDS RED, GREEN, BLUE & WARM WHITE
LED WATTS:.5W
LED LIFETIME:40 TO 80,000 AVERAGE
REFRESH RATE:6000HZ
POWER SUPPLY:110V≈240V 50/60HZ
BALLAST:ELECTRONIC AUTO SWITCHING
POWER CONSUMPTION:WATTS: 6W / AMPS: .10
CONNECTIVITY:ABLE TO CONNECT CONSECUTIVELY 50 UNITS @110V
PROTOCOL:DMX 512
DMX CHANNELS:6 MODES OF OPERATION
MODE 1:4 CHANNELS RED, GREEN, BLUE, WHITE
MODE 2:54 CHANNELS RED, GREEN, BLUE X 18
MODE 3:72 CHANNELS RED, GREEN, BLUE, WHITE X 18
MODE 4:18 CHANNELS WHITE X 18
MODE 5:8 CHANNELS DIMMER, RED, GREEN, BLUE, WHITE, STROBE, MACRO, MACRO SPEED
MODE 6:10 CHANNELS DIMMER, RED, GREEN, BLUE, WHITE, STROBE, MACRO, MACRO SPEED, COLOR CONTROLLED MACRO, MACRO SPEED
CONTROL OPTIONS:DISPLAY PRESET SETTING

Mega Lighting iCANDY Q18-7230 (Mega Lite 7230)
