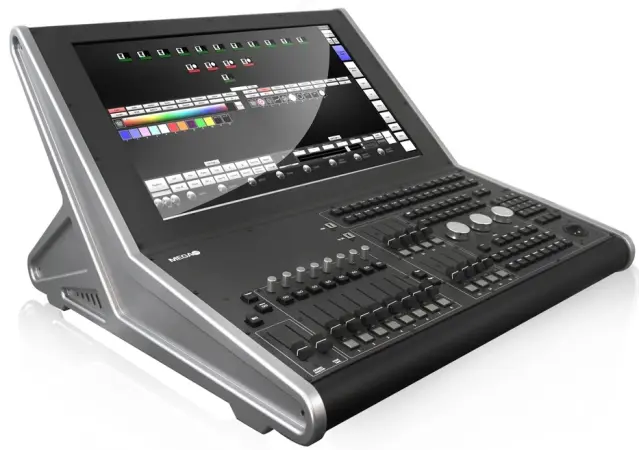

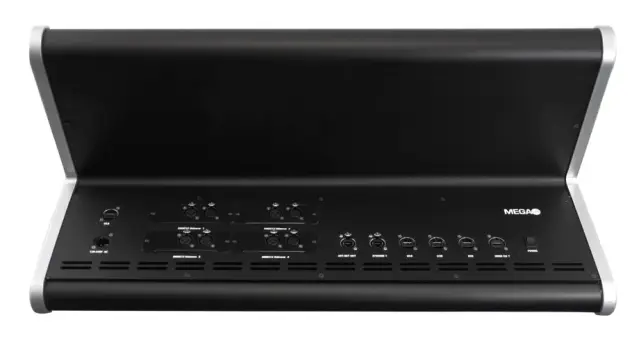

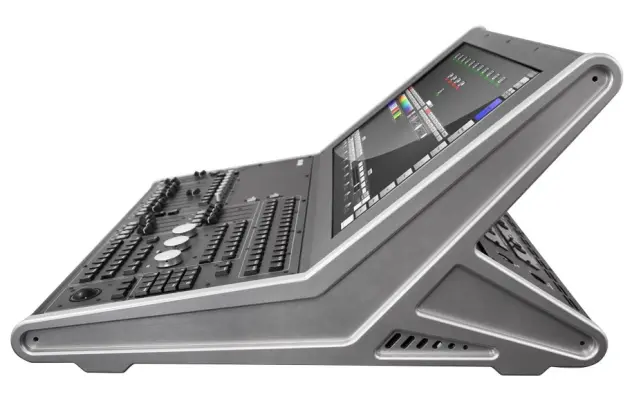

Using the Lumen8 platform, programming is both intuitive and powerful, allowing you to spend more time creating and less time having to learn complex commands. It is equipped with a 27” touch built-in touch screen and is built with top of the line components designed to be durable. The Lumen8 includes a UPS power supply that will power the unit for up to 15 minutes in the case of power loss as well as a unique tilted back connector plate to easily connect DMX, Artnet, extra monitors (sold separately), Power, and other USB devices.

SPECIFICATIONS:
ITEM ID:MC8010
POWER:100-240V 50/60 HZ AC POWER @ 4 AMPS DRAW PEAK
OUTPUT PROTOCOLS:DMX-512, ART-NET
OUTPUT SPECIFICATIONS:4 UNIVERSES BUILT IN + 32 UNIVERSES USING AN ARTNET OUTPUT NODES
CUES SEQUENCES: UNLIMITED CUES/SEQUENCES PER FADER CUE LIST
SAVING FEATURES:BACK UP & RESTORE SHOW FILE TO USB TO RECALL ON ANOTHER LUMEN8 CONSOLE
PRESETS:A FIXTURE PROFILE OR CAN BE MADE CUSTOM
PLAYBACK CONTROL:32 ASSIGNABLE CUE TRIGGERS WITH HIGHER CUE PRIORITY PER PAGE
PLAYBACK CONTROL:8 ASSIGNABLE CUE FADERS WITH HIGHER CUE PRIORITY PER PAGE
PLAYBACK CONTROL:UNLIMITED CUE PAGES WITH 8 GRAPHICAL CUE LISTS PER PAGE
PLAYBACK CONTROL:EACH GRAPHICAL CUE LIST HAS UNLIMITED CUE/SEQUENCES
PROGRAMMING CONTROL:BUILT IN EFFECTS FOR EXAMPLE: RGB, MOVEMENT, SPECIFIC CHANNELS/TRAITS
PROGRAMMING CONTROL:BUILT IN 3D VISUALIZER TO VISUALIZE COLORS/GOBOS & BEAMS
PROGRAMMING CONTROL:VIRTUAL MATRIX THAT ALLOWS ANY COLOR MIXING FIXTURE PATCHED TO BECOME PART OF A MATRIX
PROGRAMMING CONTROL:UP TO 10 FIXTURE VIEWS TO LAYER FIXTURE LAYOUTS
PROGRAMMING CONTROL:PAN & TILT TRACKING FOR ALL CHANNELS AS AN OPTION
PROGRAMMING CONTROL:MULTIPLE PRESET WINDOWS FROM 1-3 USER SELECTABLE
PROGRAMMING CONTROL:SPEED SENSITIVE PAN, TILT & FOCUS WHEELS

Mega Lighting LUMEN8-MC8010 (Mega Lite MC8010)
