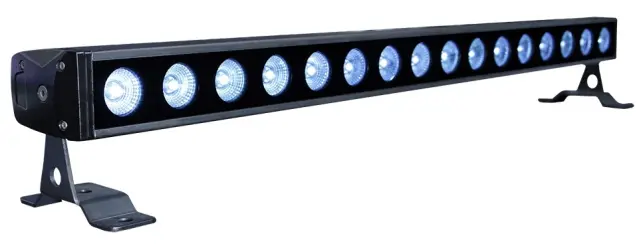

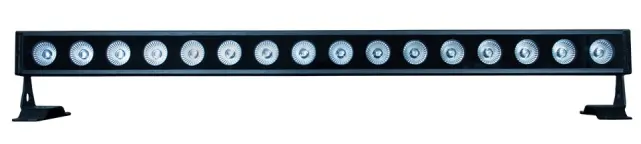

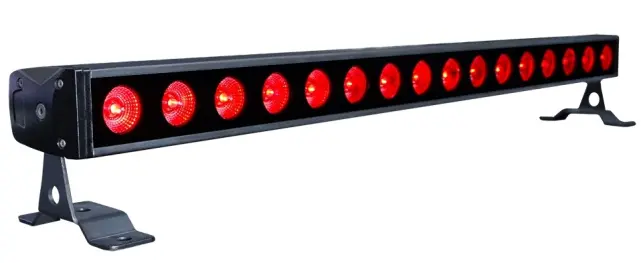

The Outshine Strip Q80 is the new sleek modern exterior and interior strip linear light source. Available in black or industrial gray finish. This unit features 16 RGBW LEDs that emit a 30˚ beam of beautiful colors. Making it ideal for wall washing or key lighting. Its Ip65 rating allows for the fixture to be permanently mounted outside or used inside as a silent fan-less unit. Its compact low profile size makes it ideal as a running strip in low ceiling applications or as a foot uplight to reduce shadowing from above in dance or runway applications. The unit has several accessories, a narrow degree lens system allows you to easily convert the unit to a 15˚ fixture concentrating the beam and creating a unique lens grouping look. The unit’s simple to use touch-sensitive display makes programming and addressing easy. It’s flicker-free performance and low profile appearance make it a great installation unit or perfect for most production needs.
SPECIFICATIONS:

ITEM ID:7225
SIGNAL CONNECTORS:NEUTRIK 3 PIN XLR NC3FXX-HD-D & NC3MXX-HD-D IP67 CONNECTORS IN/OUT
POWER CONNECTION:SURE TYPE POWER CABLE MOUNTED CONNECTION TO NEMA 5-15
THERMAL:MAXIMUM AMBIENT TEMPERATURE 104º F MAXIMUM SURFACE TEMPERATURE 140º F

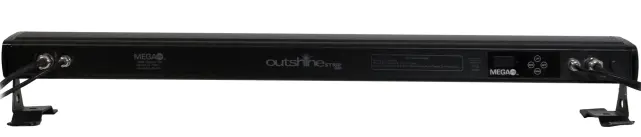

DISPLAY:LCD
FASTENING SYSTEM:END MOUNT MOUNTING YOKE
IP RATING:IP66
LENS ANGLE:25º
LED QUANTITY:16 QUAD COLOR LEDS RED, GREEN, BLUE & WHITE
LED WATTS:5W
LED LIFETIME:40 TO 80,000 AVERAGE
REFRESH RATE:6000HZ
POWER SUPPLY:110V≈240V 50/60HZ
BALLAST:ELECTRONIC AUTO SWITCHING
POWER CONSUMPTION:WATTS: 73W / AMPS: .99
PROTOCOL:DMX 512
DMX CHANNELS:3 MODES OF OPERATION
MODE 4 CHANNELS:RED, GREEN, BLUE, WHITE
MODE 5 CHANNELS:DIMMER, RED, GREEN, BLUE, WHITE, STROBE
MODE 9 CHANNELS:DIMMER, RED, GREEN, BLUE, WHITE, STROBE, MACRO, MACRO SPEED, DIM CURVE
CONTROL OPTIONS:DISPLAY PRESET SETTING

(Mega Lite 7225)
