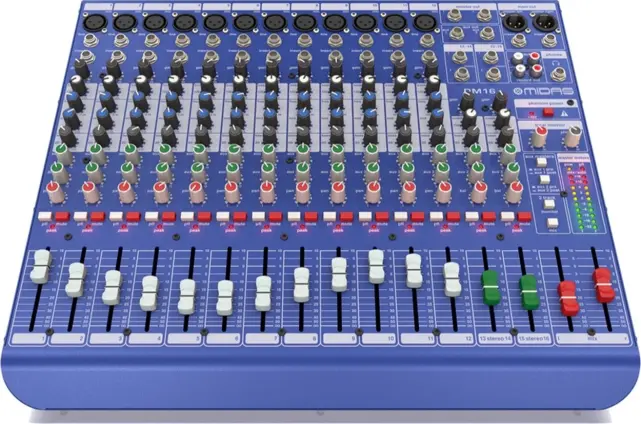

Midas DM 16 (Midas DM16 - 16 channel Analog Mixer)

Sixteen channels and high-quality MIDAS mic pre-amps.

Ideal for both live and studio sound applications, this compact 16-channel analog mixer delivers incredible sound, versatility and value. Outfitted with eight MIDAS microphone preamplifiers that boast +48V phantom power, the Midas DM16 mixer features 16 input channels and a rugged chassis. You will love the quality of this Midas 16-channel mixer for sale.

The Midas DM16's award-winning MIDAS microphone preamplifiers have gained a reputation around the world for their transparency and nuanced low noise, high-headroom design. Add to this TRS Line Inputs on all 16 channels (8 mono and 2 stereo), mono channel Inserts and 3-band EQ with mid-frequency sweep, two switchable pre/post-fader aux sends, two monitor outs and 2-track RCA I/O, and you have an impressive setup at an unbeatable price.

Live Performance and Studio Recording
With 16 channels, the Midas DM16 has more than enough microphone and line inputs to manage a small band or worship team with channels to spare—both on the stage and in the studio. It is also the ideal choice for use as a keyboard or drum sub-mixer for larger scale performances.

Dedicated Stereo Inputs
Line channels 13/14–15/16 are dedicated stereo channels, making them ideal for stereo instruments, such as keyboards, and can also be used for mono signals, thanks to a convenient balance control on each 2-channel grouping. These channels can also be used as return inputs for signals sent external effects processing equipment.

Sublimely Musical British EQ
The British consoles of the 1960s and ‘70s changed the sound of rock and roll. Without them, the British Invasion might not have happened. Those legendary mixing desks soon became the envy of engineers and producers all over the world. The 3-band channel EQ on the Midas DM16 analog mixer (16-channel) is based on that very same circuitry, allowing you to imbue signals with incredible warmth and detailed musical character. The sweepable mid-frequency band provides a broad tonal palette with which to fine-tune the ideal signal. Even when applied generously, these equalizers exhibit sweet forgiveness and superb audio quality.

Dual Aux Sends
The Midas DM16 mixer is also equipped with two aux sends with pre/post fader switching for added versatility. Users can select to use them for external effects processing, custom monitor mixes, or a combination of the two. Additional monitoring outputs are provided of the main mix for stage or studio monitor applications.

Midas Analog Mixer 16-Channel:

FEATURES
16 input channels
12 mono input channels feature award-winning MIDAS mic preamps
Rugged chassis for durability and reliability
60 mm precision long-life faders
2 AUX sends with pre/post fader switching

Format
Analog/digital: Analog
Number of channels: 12
Busses/groups: 2
Aux sends: 2
Powered: No
Inputs
Total inputs: 16
Mic preamps: 12
XLR/TRS combo jacks: Not specified
XLR only jacks: 12
1/4" only jacks: 5
S/PDIF in: Not applicable
ADAT/optical in: Not applicable
RCA in: Yes
AES/EBU: No
Outputs
Total outputs: 6
XLR out: XLR
1/4” out: 2
S/PDIF out: Not applicable
ADAT/optical out: Not applicable
RCA out: 2
AES / EBU: Not applicable
Other Connectivity
Connections: Not applicable
MIDI I/O: Not specified
Headphone output(s): 1 (1/4")
Wi-Fi No
Word-clock I/O: Not specified
I/O expansion: Not specified
Onboard effects
Compression: Not specified
Reverb: Not specified
Delay: Not specified
Chorus/flange: Not specified
Equalization
Type: Rotary
EQ bands: 3
Master graphic: Not specified
Other
Width: 17.2"
Height: 3.7"
Depth: 14.6"
Weight: 2.3"
Automation: No
Fader type: Physical
Motorized faders: No
Bundled software: No
Rackmountable: Not specified

Midas DM-16 (Midas DM 16)
