Midas M32R

$2,499.99 new
CALL or VIP REGISTRATION (free) new
Warranty



Available - Ships in 1-2 days Low Price Guarantee



or $227/mo Free Shipping, No Tax (except NJ)


User Reviews (1)

Please log-in to write your review

Average rating: 5, based on 1 reviews
read all reviews
Product Description

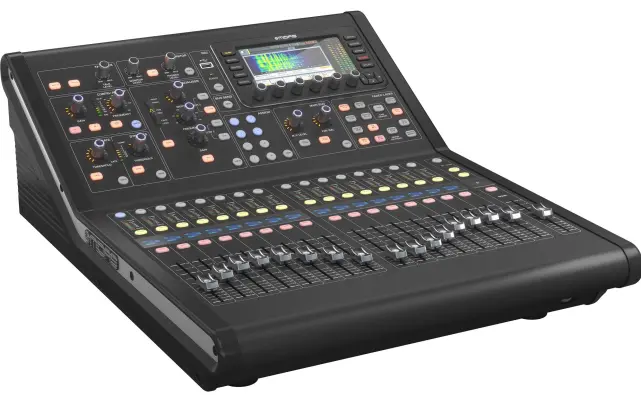

Midas M32R mixer  (Midas 40 channel mixer)

M32R
Digital Console for Live and Studio with 40 Input Channels, 16 MIDAS PRO Microphone Preamplifiers and 25 Mix Buses

Midas M32R Mixer Features:

Live performance and studio recording digital console with up to 40 simultaneous input channels
16 award-winning MIDAS PRO microphone preamplifiers
25 time-aligned and phase-coherent mix buses
AES50 networking allows up to 96 inputs and 96 outputs
Open architecture allows for future 96 kHz operation
192 kHz ADC and DAC converters for outstanding audio performance
Industry-leading design by Bentley* Motors Designer
High-performance aluminium and high-impact steel structure
Rack mount brackets included for ultimate flexibility
40 bit floating point digital signal processing
8 DCA and 6 mute groups
8 digital signal processing effects engines
17 MIDAS PRO motorised 100 mm faders
Daylight viewable 5” full colour TFT display screen
32 x 32 channel USB 2.0 audio interface
DAW remote control emulations of Mackie Control* and HUI* protocols
Optional wireless remote control with MIDAS Apps for iPhone* and iPad*
Auto-ranging universal switch-mode power supply
3-Year Warranty Program*
Designed and engineered in England

Midas 40-Channel Mixer Specifications:

Input Channels
32 input channels, 8 aux channels, 8 FX return channels

Output Channels
8 / 16

Buses
16 aux buses, 6 matrices, main LRC: 100

Effects Engine
8 / 16, (True Stereo / Mono)

Automation
Internal Show Automation (Structured Cues / Snippets): 500 / 100

Scenes
Internal Total Recall Scenes (Incl. Preamplifiers and Faders): 100

Signal Processing
40-bit floating point

A/D and D/A Conversion
A/D Conversion (8-channel, 96 kHz Ready): 24-bit, 114 dB dynamic range, A-weighted
D/A Conversion (stereo, 96 kHz Ready): 24-bit, 120 dB dynamic range, A-weighted

Latency
0.8 ms, (I/O, console input to output)
1.1 ms, (network latency, stage box in > console > stage box out)

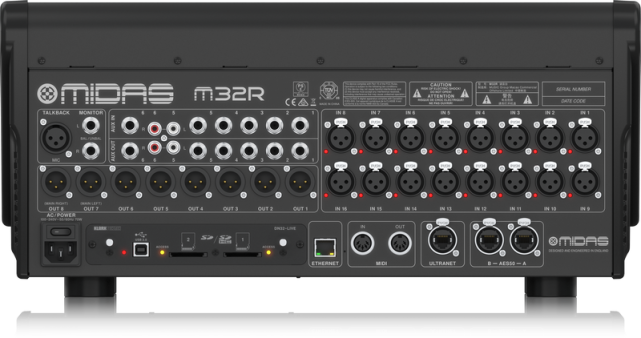

Connectors
Preamplifier
Midas PRO Series Microphone Preamplifiers (XLR): 16

Talkback
Talkback Microphone Input (XLR): 1

RCA
RCA Inputs / Outputs: 2 / 2

Audio Out (XLR)
XLR Outputs: 8

Monitoring Outputs
Monitoring Outputs (XLR / ¼" TRS Balanced): 2 / 2

Auxiliary
Aux Inputs/Outputs (¼" TRS Balanced): 6 / 6

Headphones
Phones Output (¼" TRS): 1 (Stereo)

Networking
AES50 Ports (Klark Teknik SuperMAC): 2
Ultranet P-16 Connector (No Power Supplied): 1

Expansion
Expansion Card Interface: 32 Channel Audio Input / Output

MIDI
MIDI Inputs / Outputs: 1 / 1

USB
USB Type A (Audio and Data Import / Export): 1
USB Type B: 1, rear panel, for remote control

Ethernet
RJ45: 1, rear panel, for remote control

Microphone Inputs
Design
Midas PRO Series

THD+N (0 dB gain, 0 dBu output): <0.01% unweighted
THD+N (+40 dB gain, 0 to +20 dBu output): <0.03% (unweighted)

Input Impedance (Unbalanced / Balanced): 10 kOhms / 10 kOhms

Maximum Input Level
Non-Clip Maximum Input Level: +23 dBu

Phantom Power
+48 V, (switchable per input)

Equivalent Input Noise @ +45 dB gain (150 ohm source): -125 dB (22 Hz - 22 kHz, unweighted)
CMRR CMRR @ Unity Gain (Typical): >70 dB
CMRR @ 40 dB Gain (Typical): >90 dB

Input/Output
Frequency Response
@ 48 kHz Sample Rate: 0 to -1 dB (20 Hz - 20 kHz)

Dynamic Range
Analog In to Analog Out: 106 dB (22 Hz - 22 kHz, unweighted)
A/D, Preamplifier and Converter (Typical): 109 dB (22 Hz - 22 kHz, unweighted)
D/A, Converter and Output (Typical): 109 dB (22 Hz - 22 kHz, unweighted)

Crosstalk Rejection Typically @ 1 kHz 100 dB, adjacent channels

Output Level
XLR Connectors (Nominal / Maximum): +4 dBu / +21 dBu

Output Impedance
XLR Connectors (Unbalanced / Balanced): 50 ohms / 50 ohms
TRS (Unbalanced / Balanced): 50 ohms / 50 ohms

Phones
Output Impedance / Maximum output Level: 40 ohms / +21 dBu (Stereo)
Input Impedance TRS Connectors (Unbalanced / Balanced): 20 kOhms / 40 kOhms

Maximum Input Level
Non-Clip Maximum Input Level, TRS Connectors: +21 dBu

Output Level
TRS (Nominal / Maximum): +4 dBu / +21 dBu

Residual Noise
Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain: -85 dBu 22 Hz - 22 kHz unweighted
Residual Noise Level, Out 1-16 XLR Connectors, Muted: -88 dBu 22 Hz - 22 kHz unweighted
Residual Noise Level, TRS and Monitor out XLR Connectors: -83 dBu 22 Hz - 22 kHz unweighted

Display
Screens Main Screen: 5" TFT LCD, 800 x 480 resolution, 262 k colors
Channel LCD Screen: 128 x 64 LCD with RGB color backlight
Main Meter: 18-segment (-45 dB to clip)

Power
Power Supply
Switch-Mode Power Supply: Auto-ranging 100 - 240 VAC (50 / 60 Hz) ±10%

Power Consumption
70 W

Physical
Operating Temperature
41 - 104°F (5 - 40°C)

Dimensions
18.8 x 24.3 x 8.2" (478 x 617 x 208 mm)
Weight 31.5 lb (14.3 kg)
