The PRO2 features 64 simultaneous input channels with 8 award-winning MIDAS Microphone Preamplifiers and 27 time-aligned and phase-coherent mix buses. Like all PRO Series consoles, the PRO2 features managed latency and 40-bit floating point processing precision. Designed for use in live sound applications, the PRO2 sets a new standard of performance and portability in a compact digital console.

AES50 audio networking technology allows the PRO2 to dynamically assign up to 156 inputs and 164 outputs at 96 kHz sample rate to any of its input channels and bus outputs on a scene-by-scene basis. This high level of connectivity, coupled with the large channel and bus counts, makes the PRO2 as at home in theatres and clubs as it is in live concert touring, outside broadcast and music festivals.

Award-Winning MIDAS Microphone Preamplifier
The MIDAS microphone preamplifier is the essence of the MIDAS sound. The sound of the MIDAS microphone preamplifier has inspired generations of sound engineers to their best work. PRO2 features the latest generation of MIDAS microphone preamplifiers, which reproduce every detail.

Digital Audio Networking
SuperMAC digital audio networking technology from KLARK TEKNIK provides high channel counts, ultra low and deterministic latencies, sample-synchronous and phase-aligned networked clock distribution, error detection and correction, network redundancy, and ease of deployment and use. PRO2 is compatible with all MIDAS PRO Series digital I/O units, as well as with any other 96 kHz-enabled AES50-equipped devices.

Advanced Navigation Flexibility
At the heart of MIDAS Pro Series console navigation is the VCA and POPulation groups, which mirror the workflow used by mix engineers and encourages the development of a mental picture of the whole system. Only the required control elements and associated feedback are presented, allowing users to adopt structured workflows, rather than being presented with an overwhelming sea of knobs.

Integrated Effects Processors and Graphic Equalizers
The PRO2 can simultaneously provide up to 6 multi-channel digital signal processing engines for a wide choice of virtual effect devices, which range from dual-mono delay units, stereo modulation and numerous diverse reverberation simulations, multi-band compression, dynamic EQ and multi-channel dual-function dynamics processing. Up to 28 1/3 octave KLARK TEKNIK DN370 Graphic Equalisers (GEQs) are provided, which can be patched into any output.

PRO2 provides comprehensive automatic latency management of all internal routing and processing latency – and also includes compensation for external analog inserts. All effects processors and GEQs are custom-designed to ensure a phase-coherent, sample-accurate mix regardless of whether the devices are used as channel inserts or on auxiliary buses.

Features:

6x 96 kHz AES50 ports, providing an additional 156 inputs and 166 outputs
8 integral mic/line inputs with MIDAS mic preamps
64 simultaneous input processing channels
32 analogue outputs (including 16 on the stage box and 2 stereo local monitor outputs)
3 AES3 outputs
2 AES3 inputs
27 sample-synchronous, phase-coherent mix buses
Up to 12 multichannel FX engines
Up to 28 KLARK TEKNIK DN370 31-band Graphic EQs
Full-color 15" daylight-viewable display screen
8 VCA (Variable Control Association) groups
6 POPulation groups
96 kHz 40-bit floating-point processing throughout

Specifications:

Sampling frequency: 96kHz
Latency delay: < 2ms input to master (no compensation)
Dynamic range: 106dB, 22Hz to 22kHz (no pre-emphasis)
Maximum voltage gain:
80dB inputs to subgroups and masters
86dB inputs to aux and matrix
Crosstalk at 1kHz: -100dB physically adjacent input channels
Crosstalk at 10kHz: -90dB physically adjacent input channels
Fader/pan cut off at 1kHz: -100dB
Fader/pan cut off at 10kHz: -100dB
Display screens: 1 x 15” daylight-viewable color screen
LCD switch: 25 x RGB colour
Motorised faders: 20 x touch-sensitive
Fader resolution: 1024 steps
Encoders: 31 x touch-sensitive
Encoder resolution: 512 steps
Dimensions: 46.44" W x 27.75" D
DL251 I/O box: 5RU x 7.87" D
Net weight: 88.18 lbs
1 x DL2531: 22 lbs
Power requirements: 100V to 240V a.c. ±10%, 50 to 60Hz
Operating temperature range: +5°C to +45°C
Storage temperature range: -20°C to +60°C

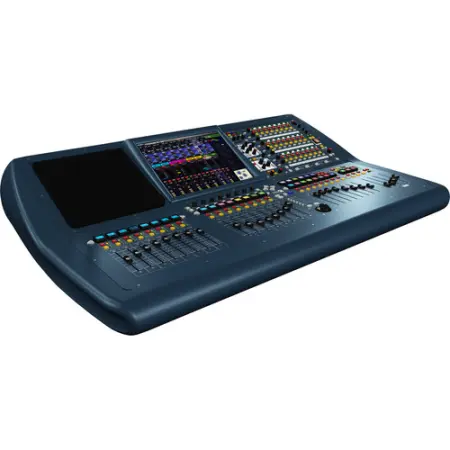

Midas PRO2CCIP (Midas PRO2-CC-IP Mixer)
