halo crank truss system

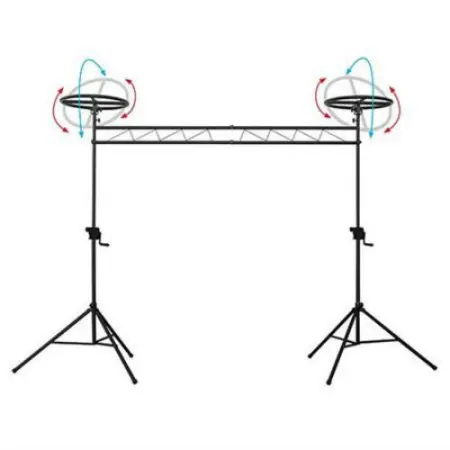

10 Feet Wide Mobile Lighting 'Halo' Crank-Up Pro Truss System
STANDARD BLACK FINISH WITH ADJUSTABLE ANGLE HALOS
Say "Halo" to Odyssey's new Mobile Lighting Halo Truss Systems and take your lighting setups to a new dimension. The new Halo ring structures allow you to put together 360 degree lighting arrangements on each end of the 10' long truss I-beam for a wide range of possible lighting configurations, more than standard mobile lighting truss systems. Each quick and easy setup system is comprised of two telescoping tripod stands, two 5' long truss I-beams, and two 30" diameter Halo ring attachments. Portability, high stability, and increased setup creativity is what you get with our Halo lighting systems. Amen! the LTMTS10HPRO adjustable Halo system is also available in our all white Luxe™ Series |LTMTS10HPROWHT|.
Features and Specifications
● Maximum Height is 10'3"
● Minimum Height is 7'5"
● Truss Width: 10'
● Width Including Halos: 12'4"
● Tubing Diameter on Halos and I-Beam is 1-3/8"
● Tripod Bottom Vertical Tube Diameter is 1-5/8"
● Tripod Top Vertical Tube Diameter is 1-1/4"
● Tripod Legs Spread To a Maximum of 5' Wide
● Truss I-Beam Handles an Evenly Spread Load of 200 lbs.
● Halos Handle an Evenly Spread Load of 110 lbs.
● Breaks Down into 6 Pieces: Two Aluminum/Steel Crank-Up Tripods, Two 5' Long Truss I-beams, and Two 30" Diameter Adjustable Halo Attachments.
