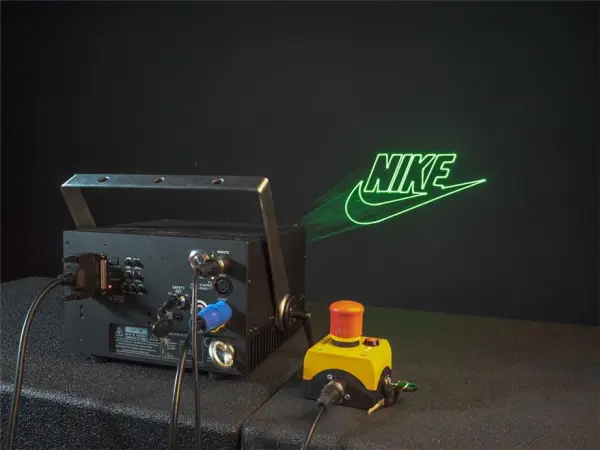

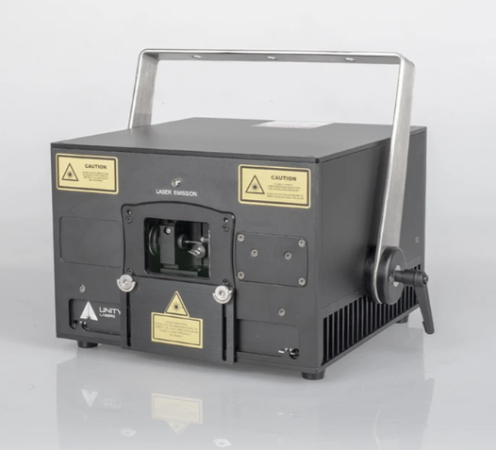

The Unity Elite 3 ILDA is a full color RGB, diode-based laser system, designed for clients who want to produce high impact aerial beam effects, as well as higher output laser graphics, logos and text.
The Elite 3 ILDA is also integrated into a robust IP54 rated housing, making it ideal for life on the road.
The Elite 3 is perfect for small to medium sized venues (up to around 3,000 people in capacity), as well as for DJs, clubs, weddings, theaters, or clients and venues needing a high impact laser system, at a more aggressive price point.
The fixture can also be used both indoors and outdoors, for the projection of laser graphics, logos, text and laser billboard advertisements.
Unity Elite ILDA series lasers are incredibly easy to setup and use. And can easily be controlled via ILDA, or via DMX / ArtNET (with Pangolin software).
We recommend using the Pangolin FB3QS or FB4 control hardware, with QuickShow software.
Try a FREE demo, and see it in action here: http://www.pangolin.com/quickshow.
What’s in the box?
The Elite 3 ILDA package includes all of the accessories you'll need right out of the box.
Elite 3 ILDA Laser Projector
Protective travel case
E-stop safety system and E-stop cables
Product Name: ELITE 3
Type: full-colour, semiconductor diode laser system
Guaranteed optical output: 3100mW
Suitable for: indoor/small outdoor laser shows and laser graphic displays
Control signal: ILDA
Scanning system: 30kpps at 45° with Quickshow test picture
Scanning angle max 45°
Compliant with: EN 60825-1, FDA
Package includes: Heavy duty flight case, power cord, 10M ILDA cable, E-STOP remote with 10M 3-pin XLR cable, set of 4 safety keys, 3-pin interlock bypass plug, user guide.
R | G | B [mW]: 650 | 700 | 1750
Beam size [mm]: 2 x 4
Beam divergence: <1mrad [full angle]
Modulation: 100 | analog
Power requirements: 100-230V/50Hz
Consumption: max. 250VA
Operation temperature: 10-40 °C
Ingress protection rating: IP54
System features: All the adjustments such as power output of each colour, X & Y axes invert, X & Y size and position, etc. Scanning system protection, daisy chain of emergency STOP signal for multiple system "one-hit" operation.
Laser safety features: Keyed interlock, emission delay, magnetic interlock, scan-fail safety, mechanical shutter, adjustable aperture masking plate.
*Due to Advanced Optical Correction technology used in our laser systems the optical power output of each laser colour within the system may slightly differ from the specification of respective laser module(s) installed. This does not affect the total guaranteed power output.
