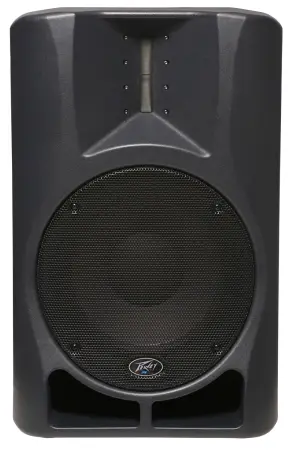

Peavey Impulse 12D (Peavey Impulse 12-D)
The new Impulse 12D powered enclosure features a true ribbon driver and a 12"
field-replaceable dual voice coil premium neodymium speaker. A Woofer Servo
circuit monitors back-EMF and controls cone motion, ensuring the cone's movement
mirrors the driving signal from the power amp, and resulting in very low
distortion, high power handling and rock-solid low-frequency attack. The
advanced new ribbon driver--an exclusive Peavey design based on the ribbons used
in the Peavey Versarray™ line array provides 90° H x 30° V coverage, with
sonically transparent reproduction.
Utilizing Peavey's revolutionary IPRâ„¢ power amplifier technology, the Impulse
12D produces 1,200 watts of efficient power while weighing a very lightweight 39
lbs. IPR amplifiers are designed with a lightweight switch-mode power supply and
a high-speed class D topology that yields the highest audio resolution and
efficiency available.
The Input section features two input channels and a line output, with a mix of
I/O options such as combination XLR-1/4" jacks, RCA and install-ready Phoenix
connections. Input channels 1 and 2 also have mic/line source switches and gain
controls. The Auto-Off function automatically shuts off the power when it no
longer detects a signal, while the Line Out allows the user to chain multiple
units or send the input signal to another source.
The DynaQâ„¢ section offers advanced tone controls such as Bass Enhancer, which is
an overall loudness boost; a Music/Speech switch that provides optimized EQ
settings for each audio type; and Contour, specially configured for program
music. A module bay allows for future expansion including Wireless I/O,
Delay/Time Adjustment, Mixer Expander, Ethernet I/O and more.
The Impulse 12D is housed in a durable, injection-molded enclosure that includes
a pole mount, three flying points and a tilt-back design to facilitate use as a
personal monitor.
- Auto off control
- Two independently mixed input channels, with level controls and mic/line
switch
- 12" field-replaceable dual voice coil premium neodymium speaker
- Two-way, bi-amplified, optimized active servo drive loudspeaker system
- Proprietary 120 mm ribbon driver on a low-coloration wave guide
- Combo XLR-1/4" and Phoenix connectors on channel 1
- Combo XLR-1/4" and RCA connectors on channel 2
- XLR, 1'4" TRS and Phoenix outputs on Line Out
- Woofer Servo technology
- Exclusive DDTâ„¢ anti-clipping protection
- Bass Enhancement circuit provides automatic equal loudness compensation
- Mounting bay for optional input function modules
- Rugged polypropylene molded enclosure with tilt-back design for monitor use
- Pole mount molded-in
- top, bottom and side flying point inserts
- LED control switch: Power/signal/Off
- 1,200 watts from Peavey IPR(YM) power section
- Weight Unpacked: 39.68 lb(18 kg)
- Weight Packed: 44.09 lb(20 kg)
- Width Packed: 18.5"(46.99 cm)
- Height Packed: 27.625"(70.1675 cm)
- Depth Packed: 18.5"(46.99 cm)
