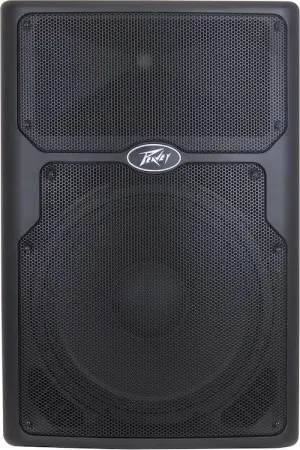

The PVXp™ 15 DSP features a reliable bi-amped power section that provides a total of 830 Watts of peak available dynamic power. With that much available power, speaker protection is critical. Advanced digital signal compression prevents audible overload, protecting the speakers from harmful distortion at high output levels. This powered enclosure also includes heavy duty speaker drivers; it features a 15" woofer with a 2-3/8" voice coil and a 50 oz. magnet. This is coupled with the RX14 compression driver that includes a 1.4" titanium diaphragm on a 100-degree horizontal x 50 degree vertical pattern asymmetrical horn.

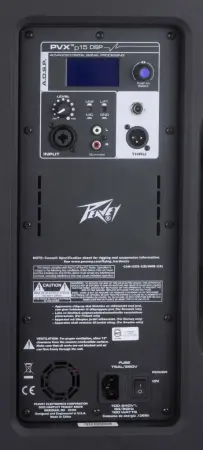

The PVXp™ 15 DSP provides a balanced input via a combination jack that accepts a balanced TRS 1/4" input, as well as a balanced XLR input and summed RCA jacks. There are two balanced Thru outputs, a male XLR and a 1/4" TRS. The LCD display and EQ presets, along with other operating parameters are accessed via a one-knob selector.
Two-way bi-amplified analog amp powered speaker system
DSP I/O is at 48 kHz and 24 bits, with low-jitter, professional grade components
Fan cooled for maximum reliability
Peavey Exclusive Quadratic Throat Waveguide™ technology, 100 by 50 degree coverage
DSP processing is 64 bit double-precision
Input is via a combo female XLR and 1/4" TRS phone jack with balanced input
A Mic/Line switch provides for two different gain settings
Thru output is via a male XLR jack and 1/4" TRS phone jack
Multiple Factory Preset EQ settings
Rugged plastic injection-molded trapezoidal enclosure
630 watts peak dynamic woofer power, 200 watts peak dynamic tweeter power
Full-coverage perforated steel grille, with powder coat finish
RX™ 14 compression driver, with 1.4 inch titanium diaphragm
Pole mount molded-in for 1 3/8" diameter poles
15" heavy-duty woofer with a 2-3/8" voice coil & 50 oz. magnet
Top, bottom and right side flying point inserts
Asymmetrical horn aims the sound down 10 degrees, at the audience, not over their heads.
Weight Unpacked: 52.00 lb(23.587 kg)
Peavey factory warranties are void on any Peavey products that are not factory sealed. However, KPODJ will match the Peavey warranty at no cost so you are covered when purchasing Store Reseals.
