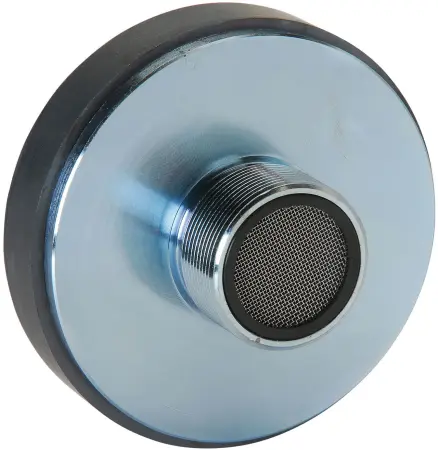

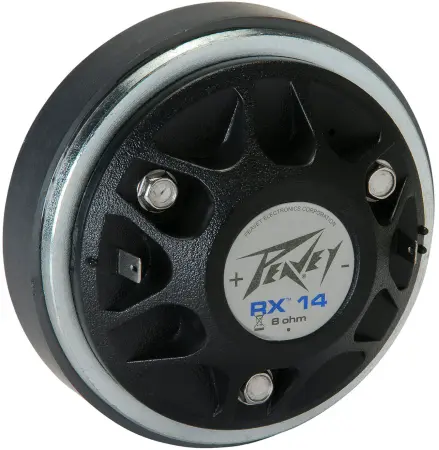

Peavey RX14 Driver (Peavey RX-14)
Overview
RX 14 Driver
Features
1.4"
Throat Parameter: .938" / 23.8 mm
Nominal Impedance: 8 Ohms
Minimum Impedance: 7.1 Ohms
DC Resistance: 6.8 Ohms
Power Capacity 1000 Hz to 20,000 Hz: 120 W peak60 W program30 W continuous
Sensitivity: 104 dB SPL 1 Watt at 1 meterOn-axis on 90º H x 45º V horn
Nominal Efficiency: 30%
Frequency Response: 1.5 kHz to 20 kHz
Recommended Crossover: 1,800 Hz at 12 dB / Octave
Lowest Recommended Crossover: 2,000 Hz at 12 dB / Octave
Diaphragm: Commercially pure titanium
Voice Coil Diameter: 1.4" / 34.4 mm
Voice Coil Material: Edge-wound ribbon withhigh temp Kapton bobbin
Flux Density: 11,500 gauss (1.15T)
Dimensions: 3.54" (90 mm) diameterx 2.40" (61 mm) depth
Horn Coupling Diameter: .938" (23.8 mm)
Horn Coupling Threads: Standard 1 3/8" / 18"
Net Weight: 33.6 oz.
Shipping Weight: 38 oz.
Voice Coil Cooling: Ferrofluid
Weight Unpacked: 2.26 lb(1.024 kg)
Weight Packed: 2.26 lb(1.024 kg)
Width Packed: 4.25"(10.795 cm)
Height Packed: 4.25"(10.795 cm)
Depth Packed: 3.25"(8.255 cm)
