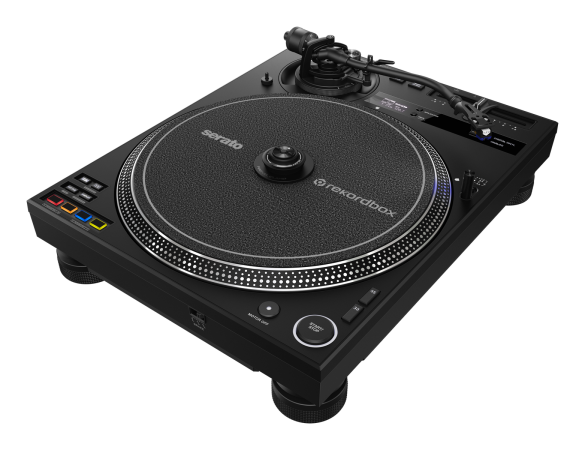

The Pioneer DJ PLX-CRSS12 professional digital-analog hybrid turntable is a game-changing deck and the world’s first to offer DVS control of digital music via DJ software as well as analog playback of vinyl records. Never worry about needle skipping again when you use the PLX-CRSS12 in DVS mode with Serato DJ Pro or rekordbox. The tone-arm-free playback means artists can scratch a real analog record as vigorously as they like without fear of missing a beat. And when they want to play a record the traditional way, they can simply switch the deck to Analog mode and use the tone arm as normal.

The PLX-CRSS12 can adapt to suit the artist style. By adjusting the rotation dial on the included Magvel clamp, artists can change how “heavy” or “light” the record feels. Artists can also adjust the turntable’s torque level in the utility settings, and there are three stopping speeds to choose from. At first glance, artists will see how the PLX-CRSS12 has been designed for fluid scratching and intuitive performances. And when they look closer, they’ll notice new features that enable a greater level of control and creativity. The battle-style layout leaves plenty of room for scratching and there are four MIDI-mappable performance pads too. Artists can also keep an eye on crucial information via the OLED display. As well as the exciting features artists can see, the PLX-CRSS12 includes a host of new additions which are hidden. Various components have been upgraded from the highly respected PLX-1000 professional turntable to create the best-ever analog sound from a Pioneer DJ deck.

FEATURES:

Eliminate skipping on digital playback
Magvel clamp dial allows users to find the perfect "weight" setting
Three deck-stopping speeds
Serato DJ and reckorbox compatible

SPECIFICATIONS:

Power requirements
AC 110 V
–
240 V, 50 Hz / 60 Hz
Power consumption
8 W
Power consumption (standby)
0.5 W
Weight
12.2 kg / 26.9 lb
Maximum Dimensions (W × D × H)
453 × 353 × 159 mm / 17.8
"
x 13.9
"
x 6.3
"
Tolerable operating temperature
+5 °C
–
+35 °C (+41 °F
–
+95 °F)
Tolerable operating humidity
5%
–
85% (no condensation)
Turntable part
Drive method
Servo type direct drive
Motor
3
-
phase brushless DC motor
Braking system
Electronic brake
Rotation speed
33
⅓
rpm, 45 rpm
Rotation speed adjustment range
±8%, ±16%, ±50%
Wow and flutter
0.15 % or less WRMS (JIS WTD)
S/N ratio
65 dB (DIN
-
B)
Turntable
Aluminum die
-
casting
d
iameter: 332 mm
Starting torque
High: 0.45 N·m (4.5 kgf·cm) or
more
Mid: 0.32 N·m (3.2 kgf·cm)
Low: 0.2 N·m (2.0 kgf·cm)
Start time
0.3 seconds (at 33
⅓
rpm)
Brake time
Max
：
3.5 seconds
Mid
：
1.0 seconds
Min
：
0.5 seconds or less
Tone arm part
Arm type
Universal type S
-
shape tone arm,
gimbal
-
supported type
bearing structure, static
balance type
Effective length
230 mm
Overhang
15 mm
Tracking error
Within 3°
Arm height adjustment range
6 mm
Stylus pressure variable range
0 g
–
4.0 g (1 scale 0.1 g)
Proper cartridge weight
2.5 g
–
12 g
*Cartridge weight includes the mounting screws
and nuts.
When shell weight is used
2.5 g
–
5.5 g
When only balance weight is used
5 g
–
9 g
When sub weight is used
8.5 g
–
12 g
Input / Output terminals
PHONO output terminal
RCA pin jacks: 1 set
USB terminal
Type
-
C: 1 set
Accessories
Accessories
Platter
Screws for platter
Screwdriver
MAGVEL CLAMP
Slip mat
Slip sheet
Dust cover
Balance weight
Sub weight
Headshell
Shell weight
Power cord
Audio cable (with ground wire)
USB cable
Quick Start
Guide
Warranty (for some regions)*
Precautions for Use
* Only products in Europe. Products in North
America and Japan include warranty information
in the Precautions for Use.

Pioneer PLXCRSS12 (Pioneer DJ Cross 12)
