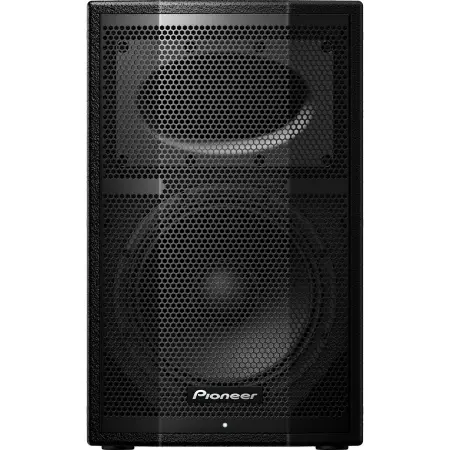

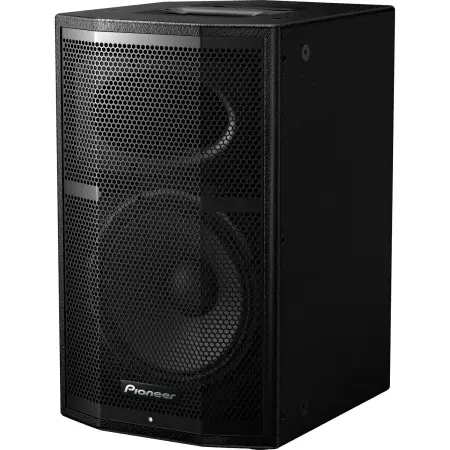

The Pioneer DJ XPRS 10 is a 10" 2-way full-range, bass reflex, bi-amped active speaker well suited for mobile DJs, clubs, bands, houses of worship, touring, speaking engagements, or anywhere portable, high-quality audio is required. Delivering a natural, dynamic sound, the compact enclosure is made from 15mm birch plywood and features AFAST technology to drastically reduce internal standing waves that can produce a muffled response in the low to mid ranges. An acoustic tube in the cabinet absorbs just the standing waves, increasing the low-frequency response.

The Pioneer XPRS 10 features a Powersoft amplifier module with 2400W of peak output and utilizes a 10" ferrite low-frequency cone woofer and a 1.75" titanium diaphragm compression driver with a neodymium magnet, which combine to offer a frequency response of 55 Hz to 20 kHz with a max SPL of 134 dB.

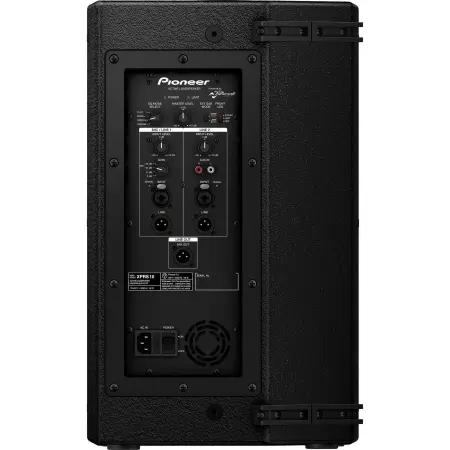

The rear panel offers two channels of inputs with channel 1 offering a combo XLR/TRS connector and gain control for microphone and line levels, while channel two offers a combo XLR/TRS and stereo RCA inputs with line-level gain control. Each channel offers an XLR link output and there is an XLR line out of both channels mixed together. Other features include four EQ mode selections, an external sub crossover switch, and a front panel LED indicator for power or limiting.

The XPRS 10 offers versatile mounting options and can be used as a floor monitor. Additionally, there are two pole cups (0/7°) which offer strait or angled deployment to help direct the sound where it's needed most. The Pioneer XPRS 10 ships with a power cord.


Features:
For Live Stage, Mobile DJs & Clubs
10" Woofer & 1.75" Compression Driver
Frequency Response: 55 Hz to 20 kHz
Max SPL: 134 dB
Powersoft Class-D Amplifier: 2400W Peak
Four EQ Modes
Two XLR/TRS Combo + RCA Inputs
Dispersion: 90 x 60°
Flexible Positions: Floor Wedge Monitor
Two Pole Mounts: Straight & Tilted


Hardwood Enclosure:
15mm birch plywood cabinet delivers a natural, dynamic sound
Pioneer’s AFAST technology drastically reduces standing waves that can produce a muffled response in the low to mid ranges
Acoustic tube in the cabinet absorbs standing waves, increasing the low-frequency response

High-Quality Drivers:
LF: 10.0" ferrite woofer
HF: 1.75" titanium diaphragm compression drivers

Powersoft Class-D Amplifier:
Reliable and high-powered performance
Class-D amp modules produce 2400W (peak) or 1200W (continuous) output
The amps are equipped with Power Factor Correction (PFC) to reduce power consumption while ensuring reliability and a steady performance in all environments
The auto-ranging power supply provides compatibility for the XPRS Series anywhere in the world. Venues with generators or temporary power supplies can expect the same high-quality sound

Advanced Protection:
Amplifier protection
Thermal limiting: Cuts off to prevent overheating
Output overcurrent: Reduces the speaker’s output to safe levels in the event of output overcurrent
Speaker protection
DC offset removal: Shuts down to prevent further damage if the speaker blows
Stationary high-frequency protection: Protects the speaker from loud bursts such as feedback
Input voltage limiter: Peak and RMS
Output voltage limiter: Cuts the LF and compression drivers separately when either reach their peak
Power protection
AC mains over-voltage protection: Protects against power surges
Status LED on the front of the cabinet has three settings—power, limiter, or off—giving an optional visual reference to the status of the speaker

Four EQ Modes:
Flat: Neutral production of the source audio
Bass +: Amplifies the bass for dance music events
Speech: Produces clear vocal sounds for seminars and speeches
Wedge: Reduces the low frequencies to give a more balanced sound if you’re using the speaker as a floor monitor

Multiple Mounting Options:
Horn dispersion: 90 x 60°
Wedge: For use as floor monitor
Pole mount: 0 and 7° pole mounts allow for straight or tilted operation to direct the sound exactly where you need it

Flexible Inputs and Outputs:
The speaker has two balanced XLR/TRS combo sockets and an unbalanced RCA connection, so you can connect a mic and other external devices at the same time, including using an optional aux cable to connect and play directly from portable audio players, line-level mixers, and tablets/smartphones
Each input can be controlled individually or using the master controls for lines one and two
Two balanced XLR through output terminals enable easy connection to other speakers and subs


Specifications:
PA Speaker:
Configuration Active 2-Way
Enclosure Type Bass-Reflex Loudspeaker
Total Power Capacity 2400 W Peak 1200 W RMS
Amplifier Power Rating LF: 800 W RMS HF: 400 W RMS
Amplifier Class Class-D

Drivers:
HF Driver 1 x 1.75" / 44.45 mm Titanium Compression Driver
LF Driver 1 x 10" / 25.4 cm Woofer
Magnet HF: Neodymium

Performance:
Frequency Response 55 Hz to 20 kHz -10 dB
Maximum SPL 134 dB (Peak)
Coverage Angle 90° H x 60° V
I/O Impedance Input: 10 Kilohms
Protections DC Fault, Overcurrent, Overvoltage, RMS, Thermal

Connectivity:
Audio I/O 2 x Combo XLR-1/4" TRS Balanced Input
2 x RCA Unbalanced Input
2 x XLR 3-Pin Balanced Thru/Output
1 x XLR 3-Pin Balanced Mix Output

Signal Processing:
Crossover 2 kHz
Dynamic Processing HF Limiter, Peak Limiter

Power:
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption 162 W

Physical
Mounting 1 x 1.4" / 35 mm Pole Socket (Dual Angle) 12 x M10
Handles 1 x Top
Construction Material Plywood
Dimensions 12.6 x 20.5 x 14.7" / 320 x 520 x 374 mm
Weight 41.7 lb / 18.9 kg

Pioneer XPR S10 (Pioneer DJ XPRS 10)
