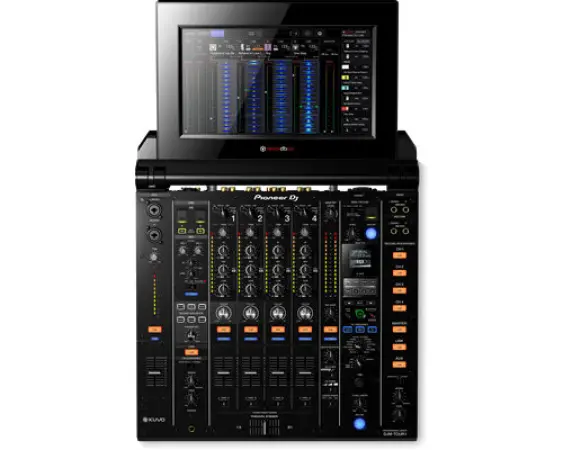

Pioneer DJM-TOUR1
- DISCONTINUED

product discontinued

This product has been discontinued by the manufacturer. Please contact us to find a replacement.

*Discontinued

PLAY MAIN STAGE
Tour from festival to arena with the Pioneer DJM-TOUR1 and perform at the highest level. Connect up to 4 CDJ-TOUR1's via Pro DJ Link and enjoy a sturdy, reliable set-up every single performance.

The Pioneer DJM-TOUR1 delivers the warm high-resolution sound you're used to, and adds pro-grade audio components to scale up for any size of event. It even features an AES/EBU digital output so you can connect directly to front of house with no loss of sound quality, and 2 independent headphone sections that let you monitor and cue tracks separately.

Plus with the same familiar layout and features as the DJM-900NXS2, and a large fold-out touch screen you get effortless control when it matters most. Order this 4-channel professional mixer from KPODJ today.

Pioneer DJM-TOUR1 KEY FEATURES
WARM SOUND AT ANY VENUE
A 32-bit D/A convertor, made by ESS Technologies, delivers incredibly low noise and distortion even at super-high volumes. Additionally the 96 kHz/24-bit sound card, 64-bit floating point mixing processing, enhanced dithering technology and a low-jitter clock combine to provide an accurate, natural analogue sound.

CONNECT TO FRONT OF HOUSE
The AES/EBU digital output lets you connect directly to the PA, regardless of its positioning. Together with the word clock input it ensures high-grade digital audio signal transmission to front of house for precise synchronisation and the best possible sound quality.

13-INCH FOLD-OUT TOUCH SCREEN
Use multicoloured touch display to browse and select tracks from up to 4 CDJs connected via Pro DJ Link. Choose between a horizontal multi-wave view or a vertical view that also includes an RMS meter so you can monitor and control the volume for each channel.

5-PORT LAN HUB
A 5-port LAN hub means you can connect up to 5 players or laptops to the Pioneer DJM-TOUR1. Via Pro DJ Link you can share one source across up to 4 players – and if you're using rekordbox dj you get access to a host of advanced performance features on top.

EASY B2B CUEING
2 independent headphone sections let you and another DJ cue tracks at the same time without hearing each other's input. With the Pioneer DJM-TOUR1, each headphone also has its own volume control for ease and comfort.

FLEXIBLE CONNECTIVITY
Hook up your choice of external devices including drum machines, effectors, synths and samplers using XLR/TRS combination Aux-in.

Familiar layout
The Pioneer DJM-TOUR1 4-channel professional mixer will feel instantly familiar as it shares its layout with the DJM-900NXS2. Likewise it also features improved channel fader/EQ curves, high-quality Sound Colour FX, quantized Beat FX, and an Independent Send/Return.


Sound Color FX
6 studio-quality sound FX - Sweep, Filter, Crush, Dub Echo, Noise and Space - are available on every channel. Use the parameter control knob to fine-tune the FX.


Beat FX
Use the large X-Pad to engage 14 different types of Beat FX and adjust the parameters with just one finger. This Pioneer DJM-TOUR1 features a high-res OLED display that instantly shows you which FX are in play.


Independent Send/Return
Use built-in FX and an external FX unit at the same time. Simply connect external hardware via Aux. Or connect your iPhone/iPad via USB to engage instrument and FX apps - try it with the RMX-1000 for iPad.

Pioneer DJM-TOUR1 Main Features:
MIDI Control
Full assignable MIDI controls
DVS Control
rekordbox dvs (not included)

ProDJ Link
Yes

P-LOCK Fader Caps
Yes

Auto Standby
Yes

Pioneer DJM-TOUR1 Specifications:
Width
17.53 in

Height
7.05 in

Depth
17.78 in

Dimensions (with fold-out screen)
When upper display part is upright at 90 degrees (W x D x H): 445.2 x 457.7 x 418 mm
When upper display part is fully open (W x D x H): 445.2 x 694.5 x 203.1 mm

Weight
35.49 lb

Frequency Range
20 - 40,000 Hz

Sampling Rate
96 kHz

A/D Converter
24 bit

D/A Converter
32 bit

S/N Ratio Line
105 dB

S/N Ratio Phono
88 dB

S/N Ratio Mic
79 dB

Distortion
< 0.005 % (LINE)

Power Consumption
66 W

Channels
EQ/ISO
3 band

EQ/ISO Range
Built-in, switchable 3-band equaliser: -26 dB ~ +6 dB / 3-band isolator: -? ~ +6 dB

Performance Control
Channels
4

Sound Color FX
Crush
Dub Echo
Filter
Noise
Sweep
Space
Beat FX
Delay
Echo
Filter
Helix
Phaser
Ping Pong
Pitch
Slip Roll
Spiral
Reverb
Roll
Trans
Vinyl Brake

FX Frequency
Yes

X-PAD
Yes

rekordbox Quantize
Yes

Crossfader
Crossfader Type
Magvel Fader

CURVE Assignable
Yes

Fader Curve
3

Mic
Mic Connection
XLR / 1/4-inch Jack Combo
1/4-inch TRS Jack

Talkover
3 Position Switch

Talkover Attenuator
Yes

Terminals
Inputs
4 Digital (Coaxial)
4 CD/LINE (RCA)
4 PHONO (RCA)
1 AUX (XLR, 1/4 inch TRS Jack)
2 MIC (XLR/TRS Jack Combo, 1/4 inch TRS Jack)
1 Word Clock (BNC)

Outputs
2 MASTER (XLR, RCA)
1 BOOTH (XLR)
4 HEADPHONE MONITOR (each section: 1/4 inch Jack, mini-jack)
1 REC (RCA)
1 Digital (Coaxial)

Send/Return
1 SEND (1/4-inch TRS jack)
1 RETURN (1/4-inch TRS jack)

LAN
6

USB
2 USB B ports
1 USB A port
