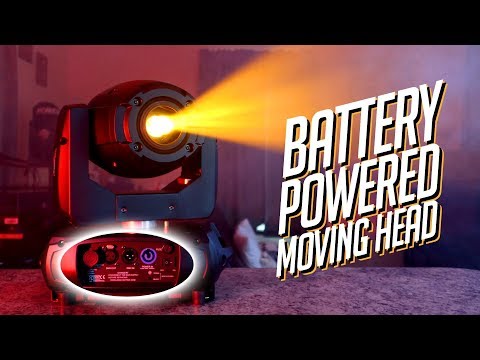

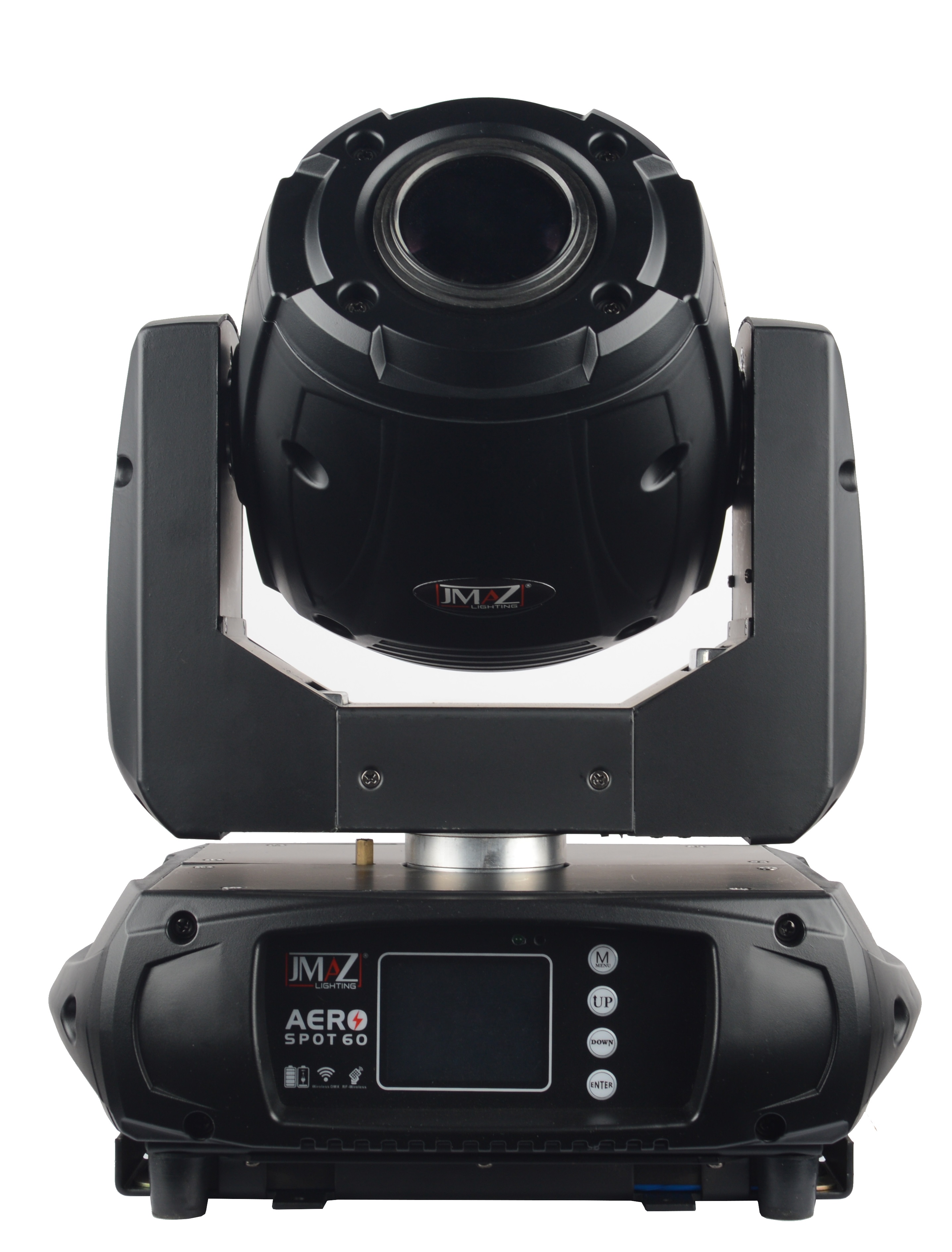

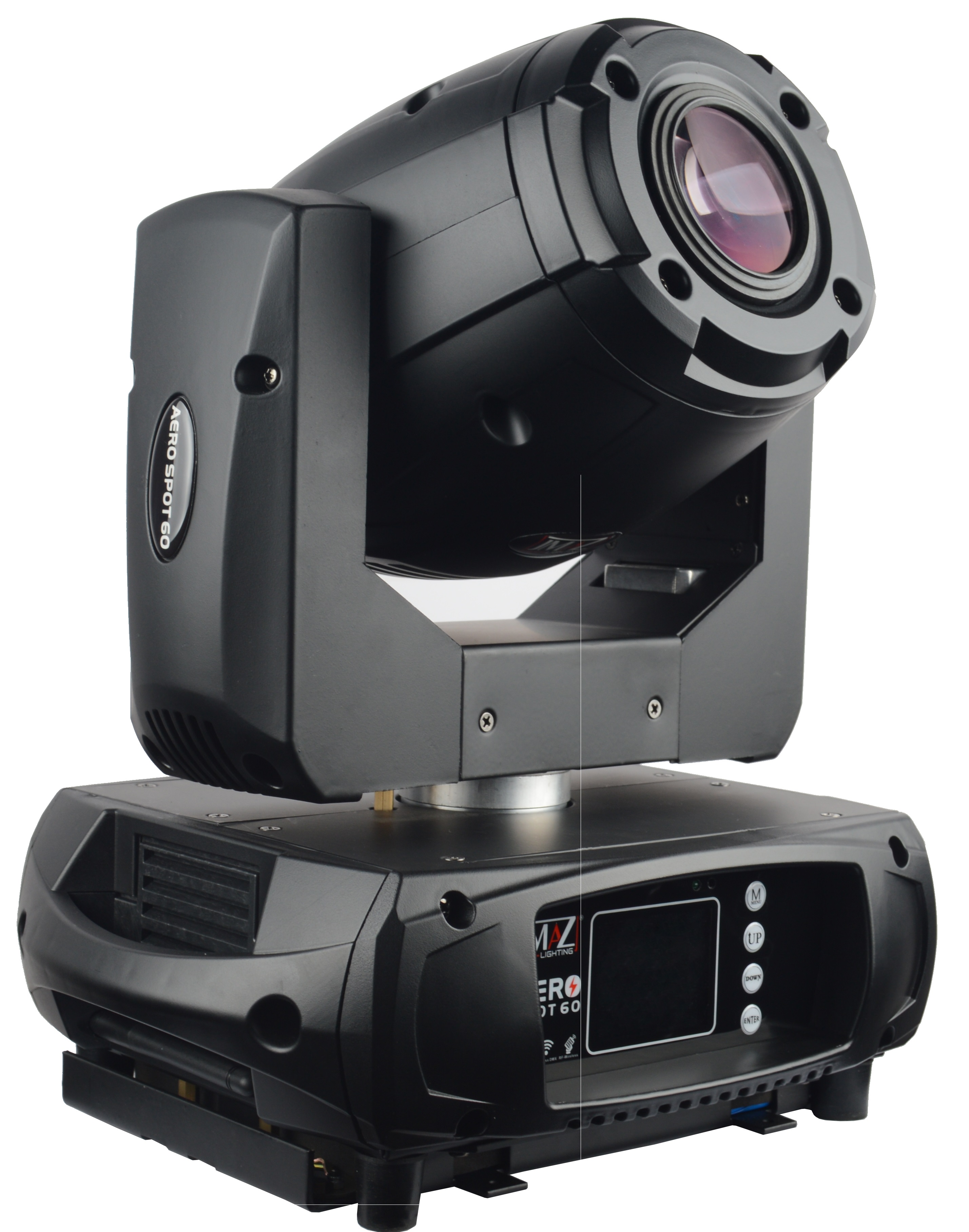

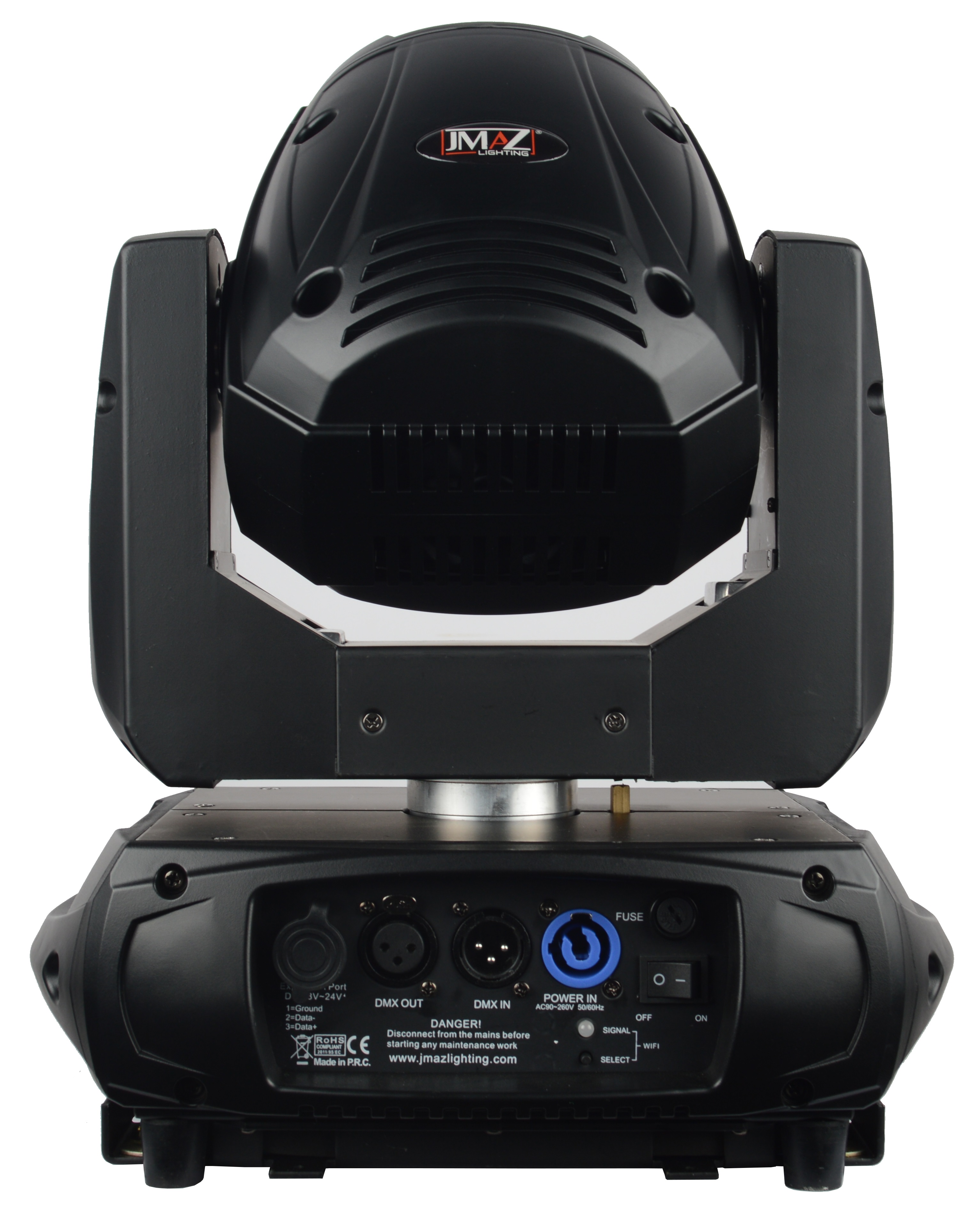

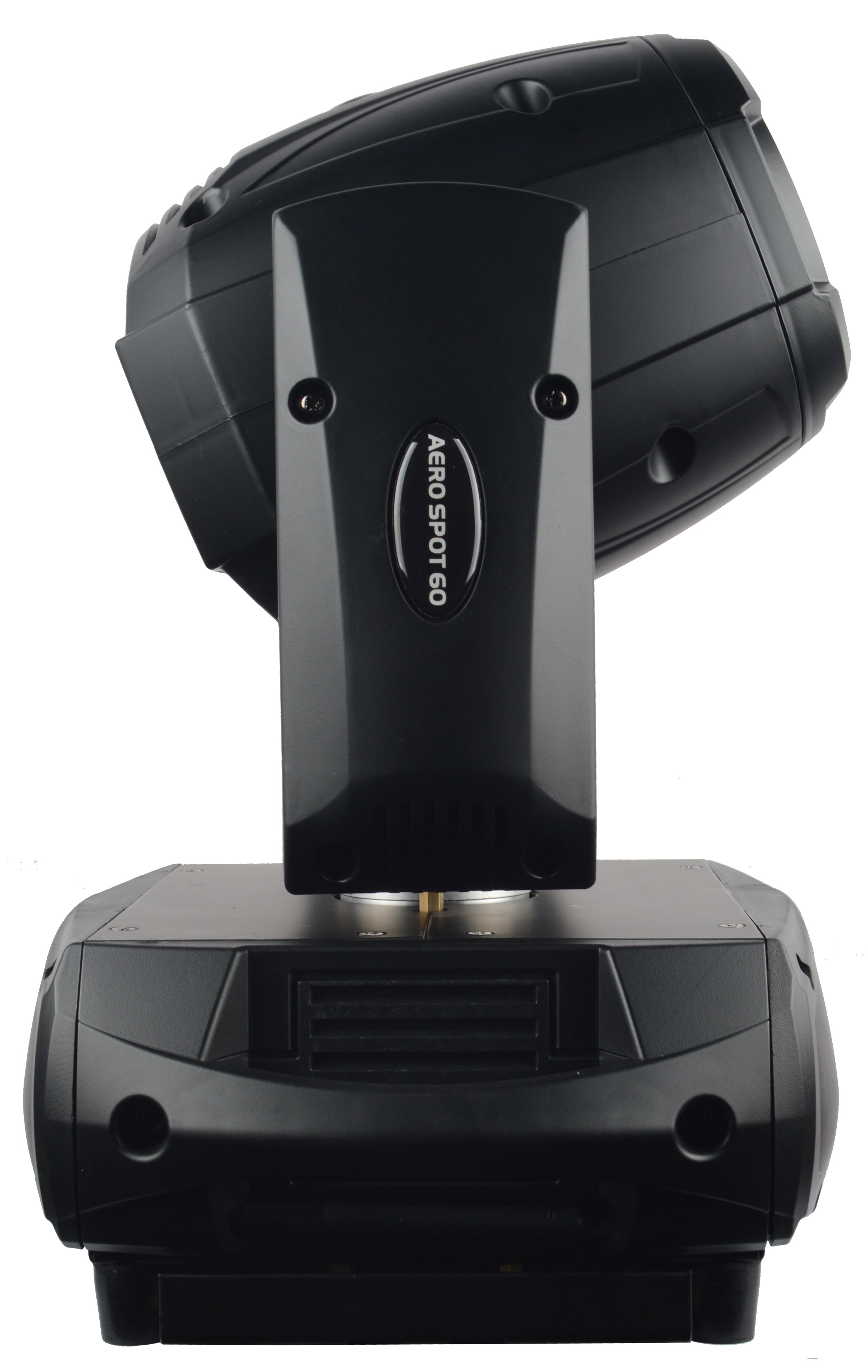

The JMAZ AERO SPOT 60 is a innovational Battery-Powered LED moving head which can still hold events without any cables. It Is a battery-driven with an impressive 7-9 hours operation in typical use. Receiving signal with internal Wireless DMX receiver. The JMAZ AERO SPOT 60 features a 50W(7500K) LED with a specific 11.9°optic system. The PAN/TILT integrates in fast and quiet movement. It offers a rotating gobo wheel (6 interchangeable gobos plus open), a color wheel (7 colors plus open), a 3-facet prism, variable preset grogram for easy operation.
Features:
1x 50W white led lamp
Beam angle:12°
Power supply: Battery or AC mains
Battery type: Lithium iron
Control Signal:DMX512, master-slave and sound activated ,auto operation or wireless
8/16 bit smooth and precise resolution for PAN/TILT movement
1 Color wheel with 7 colors plus open
1 Rotatable gobo wheel with 6 rotatable and interchangeable gobos
Fan cooling system
Dimensions:30.6*38*22(CM)
ABS die-cast plastic cover with Aluminum structure
Specifications:
Light Source
1x 50W white led lamp
Life span: 50000 hours
Color: Cool white , 7500K
Optics
Beam angle:12°
Specific high precision glass optic system
Power Supply
Power supply: Battery or AC mains
Input Voltage:AC90-260V 50/60Hz
Power Consumption: Sate of charge 190W; non-charged state: 90W
Battery
Battery type: Lithium iron
Battery charge time:0% to 100% charge 5.5 hours,
Max-endurance:8 hours(Full power), 8 hours(built-in program)
Temperature detection function :(-20 ? to 45 ?)
Battery protection: Battery short circuit protection, over current protection, overflow charging
Charging mode: When connected to mains and power is insufficient, battery will be charged automatically.
Support battery extension.
Control
Control Signal:DMX512, master-slave and sound activated ,auto operation or wireless
Control Channel: 13/11 DMX channels USITT DMX-512.
DMX recorder and edit function integrated
Movement
8/16 bit smooth and precise resolution for PAN/TILT movement
360°/540°/630° PAN and 90°/180°/270° TILT movement
PAN/TILT reversible advantage
PAN/TILT calibration available
Scan position memory, auto preposition after unexpected movement
Color Wheel
1 Color wheel with 7 colors plus open
Gobo Wheel
1 Rotatable gobo wheel with 6 rotatable and interchangeable gobos
plus open with speed adjustable, stream effect, and rotatable clockwise or anticlockwise
Gobo size 21.8mm (external dimensions)/14.5mm (inner dimensions)
Working Environment
Fan cooling system
-20-50°C max ambient temperature
Constant temperature readout and management function.
Protection Rating : IP 20
Construction & Weight
Dimensions:30.6*38*22(CM)
Packing Dimensions: 44*40*30CM)
Net Weight:10.6kgs
Gross Weight: 12.76kgs
