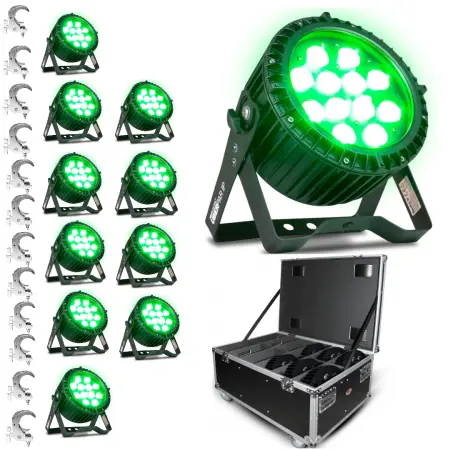

This package includes:

(1) ProX XS-PARU612W | 6-12pc Par Can Utility Case

(12) Prost Lighting UberPar IP | 216W Hex Outdoor Wash Light

(12) SquareTruss QUICK RIG S | F34, 330lb Truss Clamp

Prost Lighting UberPar IP - 216 Watt Hex LED (outdoor):
KEY FACTS:
Light source: 12x 18W RGBAW+UV (Hex) Color LEDs
Beam angle: 25°
Control: DMX-512, Sound Active, Auto Program, Presets, Remote Control
Outdoor Rated: IP65
Photometric Data: 13,700 Lux @ 1m / 3,635 Lux @ 2m
Gel Frame & Barn Doors available


COMPETITIVE DIFFERENCES:
Built to CE & UL Specs
"No Fan" Technology for Ultra Low Noise and Less Moving Parts
No Pig-tails | Completely Removable Cords
Compatible with both IP and standard (non-IP) Power/DMX cords
IR Remote (included free)
3-Year USA Warranty


DESCRIPTION:
The Prost Lighting Uber Par IP is an ultra-powerful, universal LED wash par for events, DJs, catering, and architectural applications, indoors or outside (check out the Uber Par for indoor only version)! Sporting a total LED output of 216 Watts, this spotlight is the brightest in its class. 12x 18 Watt Hex Color LEDs is a lot of light! But don’t worry, you can always dim it down if necessary.

The Uber Par IP was engineered and designed in Germany to UL and CE certification specs.

These can be controlled thru standard DMX-512 or programmed directly on the unit to stand-alone, sound active, or auto program. The integrated RGBAW+UV LEDs offer advanced color mixing, as well as all the standard colors, pure white (6500K), amber (gold tone), and ultraviolet (black light).

GENGLISH TRANSLATION
Uber Par: The German word “Uber” means “Above”.  And “Par”, well, that can be taken two ways. We’re confident that you’ll find this Par Can, “Above Par”.

FEATURES:
12x 18W RGBAW+UV (Hex) Color LEDs
White Temperature: 6500 K.
Beam Angle: 25 degree
TFT Digital Display in Plain English
Stand Alone / Auto Mode Programs
Sound Active Mode
Built-in: Preset Macro Colors
4 DMX Channel Modes: 3, 6, 8, 11
Dimmer Mode: 16 Bit
4 Dimming Curves
PWM: 16 Bit, PWM @ 5200 Hz, flicker-free
DMX Protocol: DMX-512
Tough Aluminum Housing
Seetronic branded PowerCon Cable
Built-in: IR Remote Control Receiver (remote included)
No Fan - Quiet!
CE, RoHs

SPECS:
Light source: 12x 18 Watt TyanShine LEDs
Colour spectrum: RGBAW+UV
Optical lens: 25°
DMX mode: 3/6/8/11 CH
Control Mode: DMX-512, IR Remote, Master/Slave, Standalone, Sound Active
Dimming curves: Linear, Curve, Theatre, Studio
Dimming resolution: 16-bit of 65536 Grades
Refresh rate: 25,000Hz PWM Frequency
Strobe: 0-20 Hz
Housing material: Aluminum Die-casting
Display: Digital TFT
Cooling: Fanless / Noiseless with highly efficient convection cooling
Protection: Temperature Protection
Security: Menu Lock
Power cord: Rated for 16 Amps
Frequency: 50/60 Hz
Voltage: 100-240V
Max Power Consumption: 144 Watts
Luminous flux: 6480 lumens
Photometric Data: 13,700 Lux @ 1m / 3,635 Lux @ 2m
LUX Rating Breakdown:
All On - 13,700 Lux @ 1m / 3,635 Lux @ 2m
Red - 2,280 @1m / 610 @2m
Green - 2,770 @1m / 760 @2m
Blue - 3,250 @1m / 860 @2m
White: 3,650 @1m / 960 @2m
Amber: 1,400 @1m / 380 @2m
UV: 640 @1m / 170 @2m

LED MEASUREMENTS:
Wavelength:
Red: 620-625 nm
Green: 525-530 nm
Blue: 460-465 nm
Amber: 590-594 nm
UV: 398-403 nm
White Color Temperature:
6500-7000 K
PWM Rate:
5200Hz
Voltage Input: 100-240V AC, 50/60Hz
3 Pin XLR DMX in/out
Dimensions: 8.5 x 8.5 x 4.75 inches, 11 lbs
IP Rating: IP 65

INCLUDED ACCESSORIES:
IP PowerCon AC cable
Double Bracket Yoke
IR-Remote Control

ProX XS-PARU612W | 6-12pc Par Can Utility Case:
Description
The ProX XS-PARU612W Road Case is constructed with our Signature Series Plywood, durable recessed handles, wheels for easy transportation and reinforced steel ball corners for years of on the road use.   This case has removable dividers for easy fitment to your particular lights or storage needs.  It can be used for PAR style lights, small moving heads, and other storage.

This durable case is manufactured with the ProX Original Honeycomb Digital™ Laminated Surface Design. Made with the super-sleek look of Honeycomb hexagon grids on all shell surfaces, which gives the cases an almost alien look!  Compared to regular laminated plywood cases the ProX Honeycomb design helps prevent minor to mild scratches. The Honeycomb Digital™ line design was inspired by the design of New York City Street Manhole covers which are made to handle rough and tough everyday punishment.

All ProX cases during the manufacturing process use CNC technology to assure all cases are consistently built with strict specifications that are required for the high-quality standards that ProX cases is known for since 1984.

Dimensions
40.50"L x 27.50"W x 23.00"H
Weight: 95.00 lbs

Global Truss Snap Clamp:
Aluminum finish
Medium Duty Low Profile Hook Style Clamp.
For use with F32, F33, F34 & F44P Style Trussing
Max Load Capacity 200 kgs (440 lbs)
Weight 1 lb
