DJ Production Crank Up Lighting System Triangle Truss System 14.25-inch wide 200lbs Capacity
ProX T-LS35VC DJ Production Crank Up Lighting System Triangle Truss System 15ft wide 200lbs Capacity

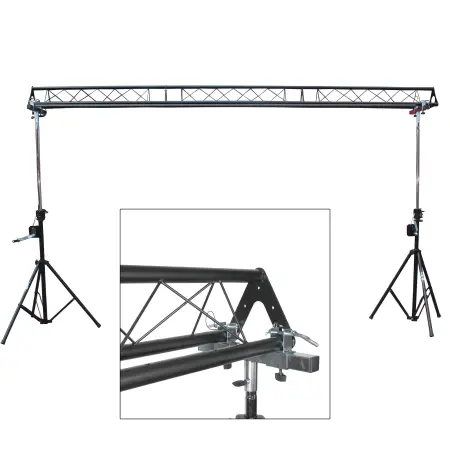

The ProX T-LS35VC triangle crank truss system. a capacity of 200lbs evenly distributed. Truss sections are 6" in overall width maximum safe height is 10ft with a weight of 99lbs. This medium-duty truss lighting stand package includes two High-quality cranks up stands & three 57" triangle truss sections that create a 5ft, 10ft, or 15ft span. The crank stands can safely extend to heights of 10ft. The "open side" design of this trussing allows the segments to be stacked in a compact manner for transportation.
Designed with 2 cranks one on each side and 3 trussing sections that can spread over 171" in width. This is a professional lighting truss system that will outperform all your previous ones. Lift Your Stage Lights In the Air with a Top Crank Up Triangle Lighting Truss Stand. Hang Up to 200 Pounds of Stage Gear equally distributed with safety! Boasting an extra durable steel construction that will easily hold the weight of your speakers and lighting you can be sure this trussing stand will keep your stage gear safe.
Portable Design - Ideal for Mobile DJs and Performers.
To avoid problems a competent person should inspect all rigging hardware, stands and equipment before each use and periodically do a major inspection for signs of wear, abuse, and general adequacy, as well as perform any manufacturer recommended preventive maintenance on schedule. Observe all warnings and usage instructions.
Ensure that your stands are positioned on a hard stable surface, in a suitable location, on firm ground and clear of overhead obstacles.
Stabilize legs before lifting the tower or any load.
When outdoors, secure the tower with braces or cables, in case of wind.
Loading on truss and stands should comply with rated weights.
Lock all the safety mechanisms (safety pins, knobs)
Loads must be centered & balanced on each lifting unit.
Safety chains must be installed on each item attached to the unit.
Leave a safety perimeter with a radius 5ft greater than the maximum height of the stands during lifting and lowering of loads.
During transport, close all the sections and lock the lifting carriage.
Do not attempt to move the stand when loaded or in an extended position.
